Do any alternate part numbers exist for this GEM10060 Counter?

Yes. The GEM10060 base unit can simply be referred to as GEM1.

Does the GEM10060 offer serial communications?

No. This GEM10060 6-digit counter has no serial communications as it is a GEM1 and not a GEM2 module.

DS200AAHA1	GE Turbine Control	Mark V

DS200AAHA1	GE Turbine Control	Mark V

Home Red Lion GEMINI 1000/2000 Counters and Indicators GEM10060

About | Product Specifications | FAQs

GEM10060

5.00 (1)
Click a star to rate this product

5.00 (1)
Click a star to rate this product

The GEM10060 6-Digit Digital Counter Module made for Red Lion's GEMINI 1000/2000 Counters and Indicators Series

AVAILABILITY:

IN STOCK
SHIPS IN 3-5 DAYS

Contact: 1-919-372-8413 (Intl.), 1-800-991-7026 (US), sales@axcontrol.com

3 Year Warranty: Learn More About Our Warranty

Sell Surplus: Have a GEM10060 to sell? Sell Now

Exchange Credit: Learn more about our exchange credit program

Part Number: GEM10060
SKU: RL-59430

Manufacturer: Red Lion
Series: GEMINI 1000/2000 Counters and Indicators

Description
Repairs
Warranty

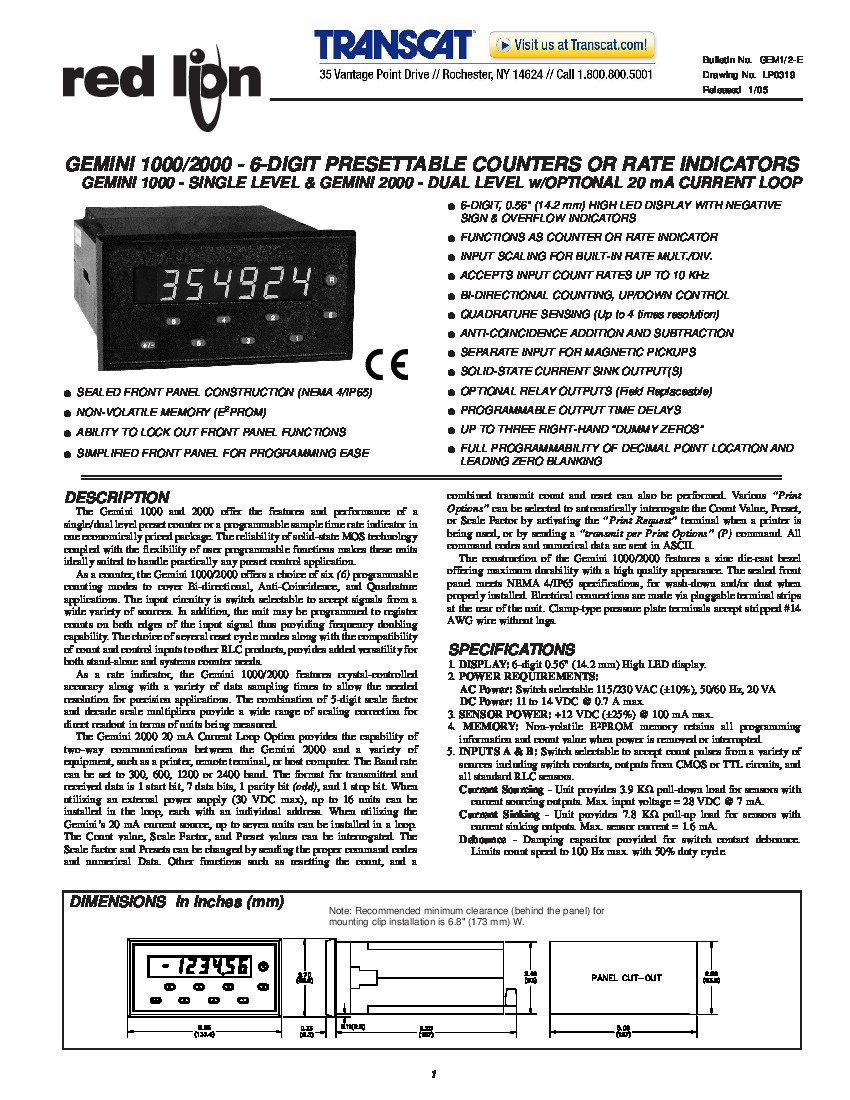

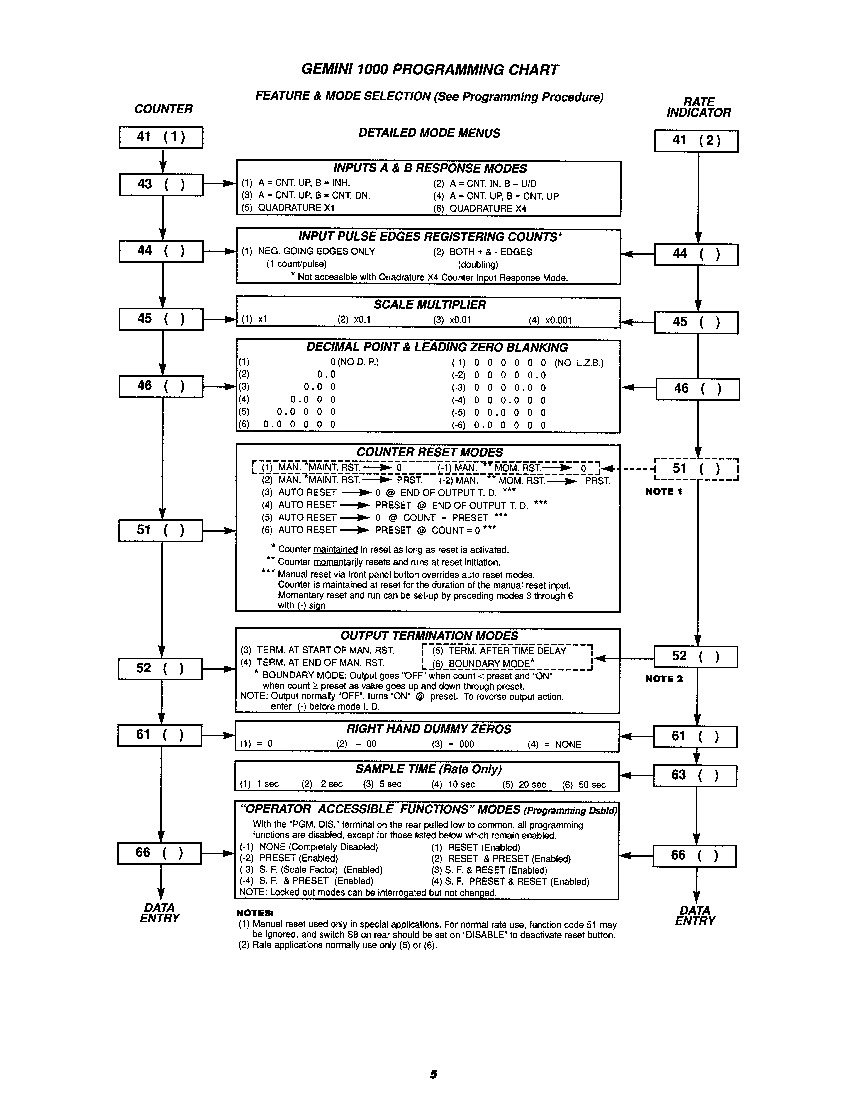

Manuals

GEM10060 Technical Specifications

Part Number	GEM10060
Functional Description	6-Digit Digital Counter Module
Series	GEMINI 1000/2000 Counters and Indicators
Manufacturer	Red Lion
Frequency Doubling	Both Edges
AC Power	115/230 VAC (±10%), 50/60 Hz, 20 VA
DC Power	11 to 14 VDC @ 0.7 A max
Sensor Power	+12 VDC (±25%) @ 100 mA max
Output Delay	0.01 to 599.99 seconds
Sample Time Multiplier	1x, 2x, 5x, 10x, 20x, or 50x

About the GEM10060

The GEM10060 6-Digit Digital Counter Module featured here has a set of obvious hardware traits that are standard to 1000/2000 Series modules. Some of these traits would have to include its:

9 total pushbuttons
LED-backlit numeric display window
Metal front faceplate (NEMA 4)
TBA and TBB terminal strips
DIP switches

Both the TBA and the TBB terminal strips have been carefully labeled with a wiring diagram for ease of connection. The LED display window of the GEM10060 6-Digit Digital Counter Module is numeric like a typical digital alarm clock.

GEM10060 6-Digit Digital Counter Module Count Rates

This specific GEM10060 6-Digit Digital Counter Module comes with a carefully-outlined series of count rates, which are as follows:

Uni- or Bi-Directional Modes: 9 KHz; 8 KHz (X2)
2-Input Anti-Coincidence Modes: 5 KHz; 4 KHz (X2)
Quadrature Modes: 5 KHz; 4 KHz (X2 or X4)
Rate Indicator: 10 KHz; 8 KHz (X2)

Reviews For GEM10060

Internal Review

(5.0)

Please note that the Metal bezel of the GEM10060 unit is connected with a necessary ground lead extending from the unit's rear bezel screw to its mounting panel. In terms of electromagnetic compatibility, the unit offers immunity to EN 50082-2. Self-test functions for the GEM10060 extend to a functional check on its CPU. - AX Control Lead Technician
