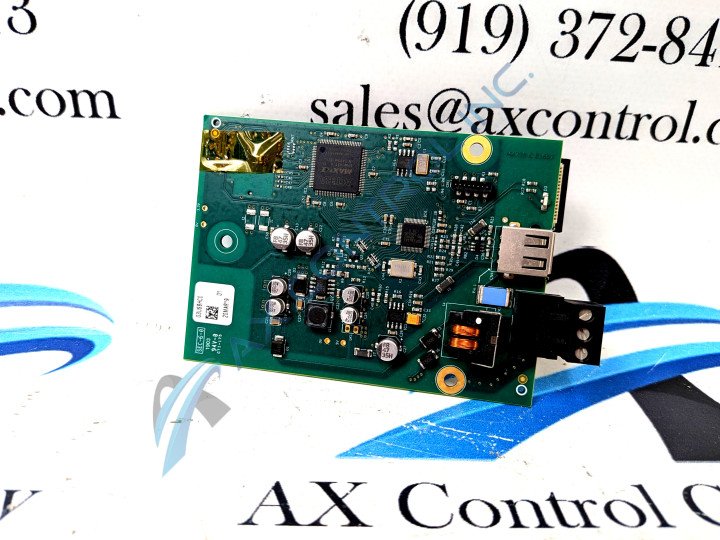

The G3USBHC0 card can only be attached to the G306A operator interface terminal produced by Red Lion and is used in hazardous and non-hazardous locations. The software needed to operate this card is Crimson 3.0 or later and is downloaded from Red Lion.



3 Year Warranty: Learn More
Sell Surplus: Have a G3USBHC0 to sell? Sell Now
Exchange Credit: Learn more about our exchange credit program
  • Part Number: G3USBHC0
  • Manufacturer: Red Lion
  • Series: G3 Series Option Card

G3USBHC0 Technical Specifications

Emission and Immunity EN 61326
Emissions EN 55011, Class A
Model Type USB Host Option Card
Power Requirements 24 VDC ±20% , max. 0.25 A
Safety Requirements EN 61010-1 and IEC 61010-1
USB Host Port Rev. 2; Supports Data Transfer at Full Speed
Weight 1.6 oz.

Product Description

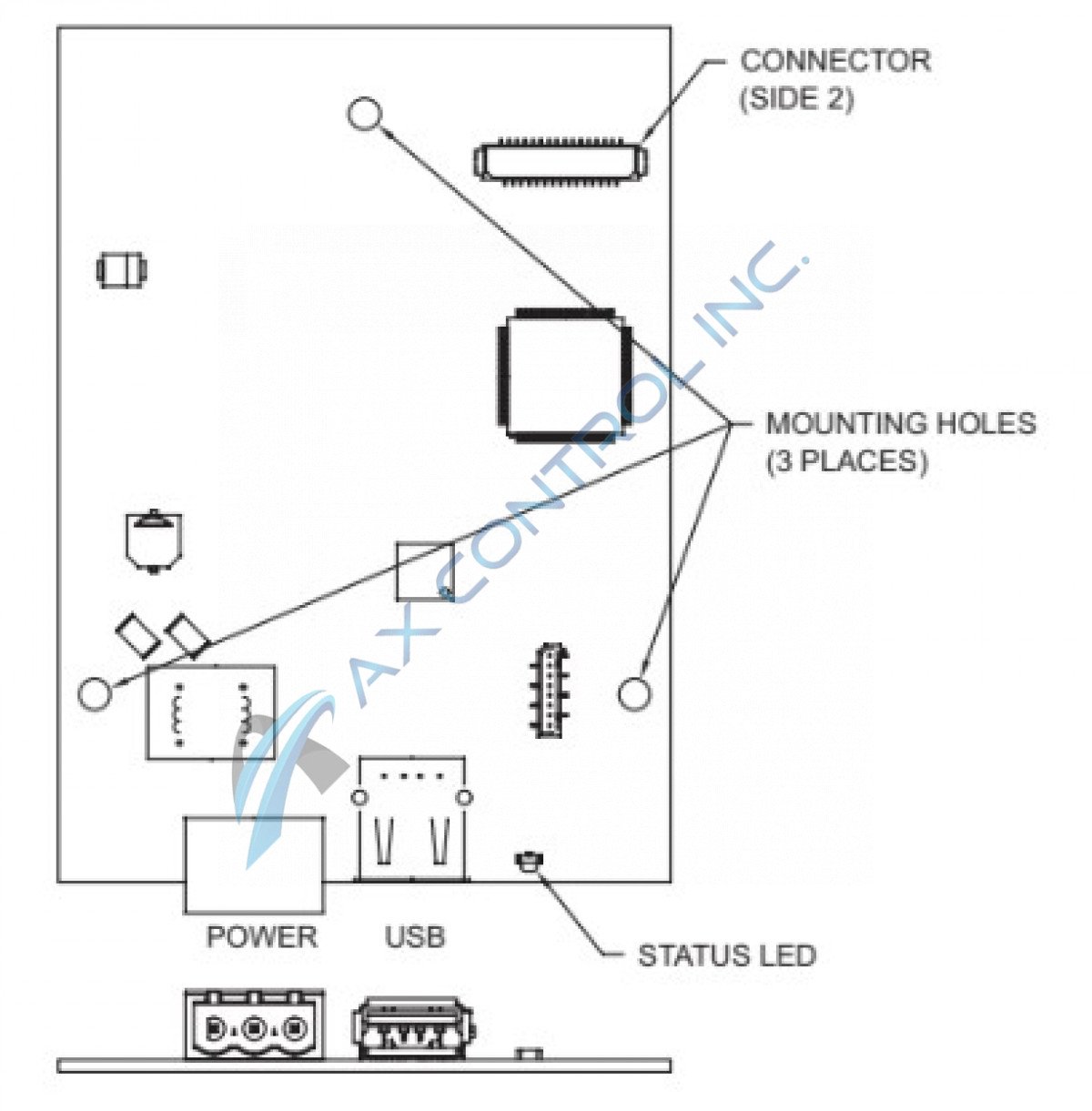

Typically option cards within the G3 Series of Option Cards can be connected to any of the operator interface terminals but the G3USBHC0 model was designed to only be used and attached to the G306A interface. It will install inside the interface after lifting up the rear cover and attaching the cable to the option card and the cable in the interface.

Another unique feature regarding this option card is that it requires a power supply that is independent of the G3 interface; the power supply is twenty-four volts of direct current. All of the needed wires must be jumpered from the main twenty-four-volt power supply of the G3 interface to the G3USBHC0 option card. Please note that the reason that these power connections are vital to the proper function is that they will prevent any ground loops from occurring.

When the option card has been installed on the back cover of the G306A interface there are three status LED colors that will become available. The three statuses are green, off, and red with unique descriptions for each. A green LED will indicate that the attached USB device has been configured, the LED being off indicates that no USB device has been connected, and a red LED indicates that the USB device is connected but has not been configured.

Whether operating or installing the G3USBHC0 option card the location of the model should be taken into consideration to ensure that no operating errors occur, any operating errors that occur can cause damage to the device and in some extreme cases can even cause the user to get hurt. Please note that disconnecting the equipment while the circuit is live or while ignitable concentrations are around can cause an explosion hazard.

Reviews For G3USBHC0

Internal Review

While most of the G3 option cards are available to connect to any of the G3 Series HMIs this model can only be connected to a G306A terminal, connecting this card to any other G3 Series HMI can cause issues in operation. - AX Control Technician
