G3MPI000

    Varying star amount pictures Varying star amount pictures Varying star amount pictures Varying star amount pictures Varying star amount pictures
  • 4.50 (2)
  • Click a star to rate this product
    Varying star amount pictures Varying star amount pictures Varying star amount pictures Varying star amount pictures Varying star amount pictures
  • 4.50 (2)
  • Click a star to rate this product
The G3MPI000 option card has an expansion card slot that has two LEDs that give information on the operating state. The two states are either red or green. The required software for the G3MPI card is Crimson 2.0 or later software.

AVAILABILITY:

CALL FOR AVAILABILITY

Sell Surplus: Have a G3MPI000 to sell? Sell Now
Exchange Credit: Learn more about our exchange credit program
  • Part Number: G3MPI000
  • SKU: G3MPI000RL
  • Manufacturer: Red Lion
  • Series: G3 Series Option Card

G3MPI000 Technical Specifications

Communications Female Connector Labeled as DB9
Communications Baud Rate Selectable between 9.6k and 12M
Configuration S7300/400 Master Driver
Immunity to Industrial Location Refer to G3 Unit for Immunity and Emission Specifications
Installation Requirements Inside the Back Cover of the Chosen G3 Operator Interface Terminal
Option Card Type Multi Point Interface
Power Supply Taken from the Attached G3 HMI, approx. 24 VDC
Storage Temperature Range -20 to 80°C (-4 to 176°F)
Weight Less than 5 ounces

About the G3MPI000

A driver is needed when operating the G3MPI000 option card and is selectable, to select the driver it will be done through the communications window on the main operator terminal. To configure the option card, the user must choose the MPI Interface icon in the communications windows, select the driver edit button to show the vast driver selection dialogs and select master driver S7300/400. Refer to the Red Lion Crimson manual for more information in regard to the communication configuration.

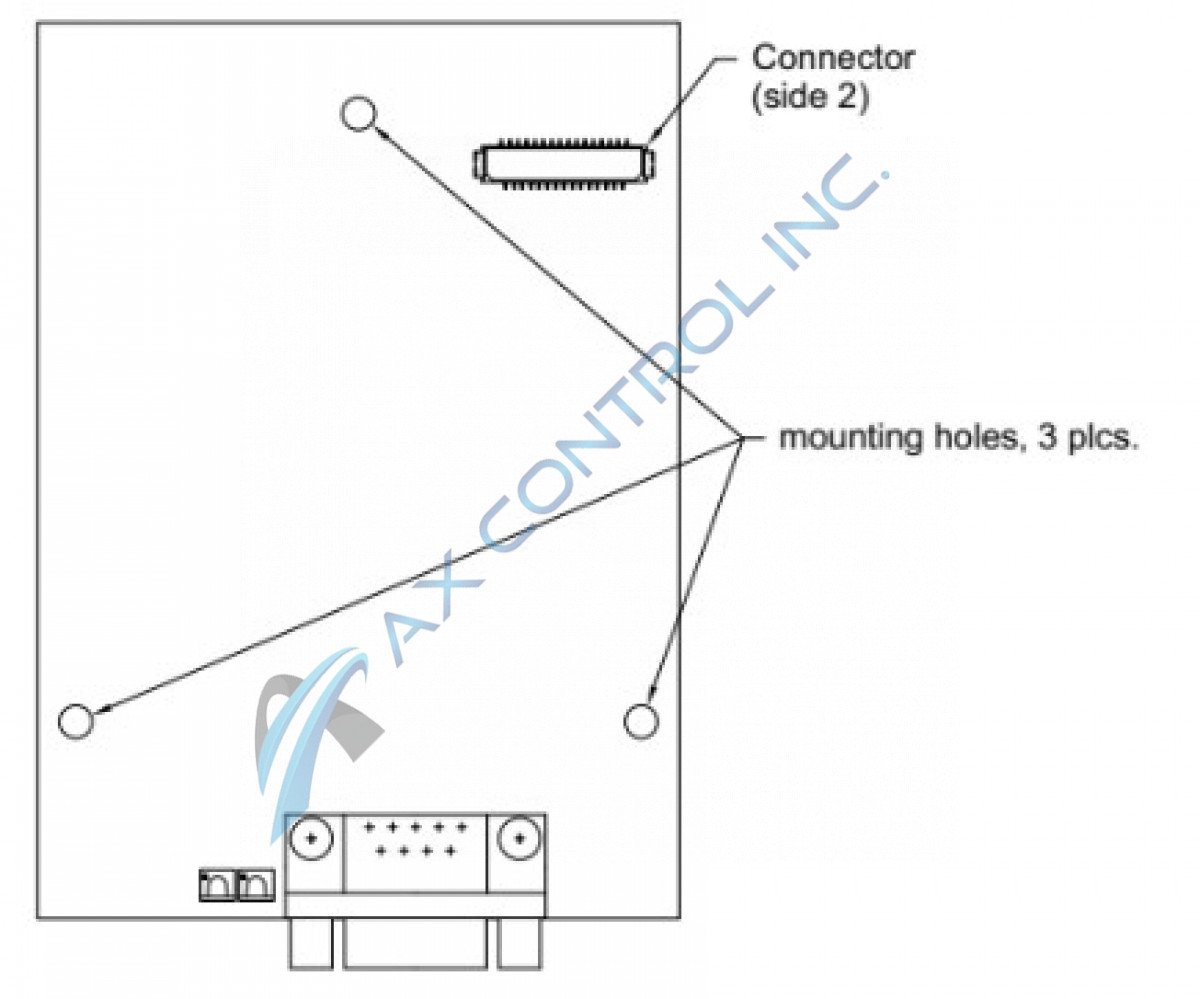

Installation of the G3MPI000 card is relatively simple, the back cover on the operator terminal must be removed after ensuring that no leftover static components are left on the card. When installing the card attach the cable from the option card to the CN11 on the main terminal board after using the screw to connect the option card to the rear cover. After the cables of the G3MPI card and main operator interface have been connected make sure that the cables are firmly seated. More information on the installation requirements will be found on page two of the Red Lion G3MPI-X Bulletin.

After installation of the G3MPI000 card onto the chosen operator interface two LEDs can be used to indicate the state of the device. The two colors are red and green. The green LED is known as a ring and when lit up indicates the appropriate station is in a logical ring; the red LED is referred to as a hold and when lit up indicates that the station is in a hold token state. These LED states are the only two available with the option card, there are three available on the front face panel of the operator interface terminal itself.

Reviews For G3MPI000

Internal Review
(5.0)

The addition of the G3MPI000 option card to any of the G3 Series HMIs adds an additional communication port that lets it operate on a selectable baud rate of 9.6k and 12M which adds even more reliability making this an excellent purchase if extra communications are wanted. -AX Control Technician
