The G306M010 is one of the four monochromatic LCD operator interface terminals available from the Red Lion G3 Series. This model operates on 12 VDC with a maximum power of 8.5 Watts.

AVAILABILITY:

CALL FOR AVAILABILITY

Sell Surplus: Have a G306M010 to sell? Sell Now
Exchange Credit: Learn more about our exchange credit program
  • Part Number: G306M010
  • SKU: G306M010RL
  • Manufacturer: Red Lion
  • Series: G3 Series HMIs

G306M010 Technical Specifications

Module Number G306M010
Series G3 Series HMIs
Manufacturer Red Lion
Lifetime of Backlight 20,000 HR
Pixel Resolution 320 x 240
Maximum Power 8.5 W
Power Supply Voltage Range 10-16 VDC
Power Supply 12 VDC
Max Weight 1.36 kg (3 lbs.)
Crimson Software Version 2.0 or Later
Comms Port RS422/485 via RJ45
Enclosure Rating IP65 (Face Only)
Max. Panel Thickness 0.25"
Certifications and Compliances CE Appproved

Product Description

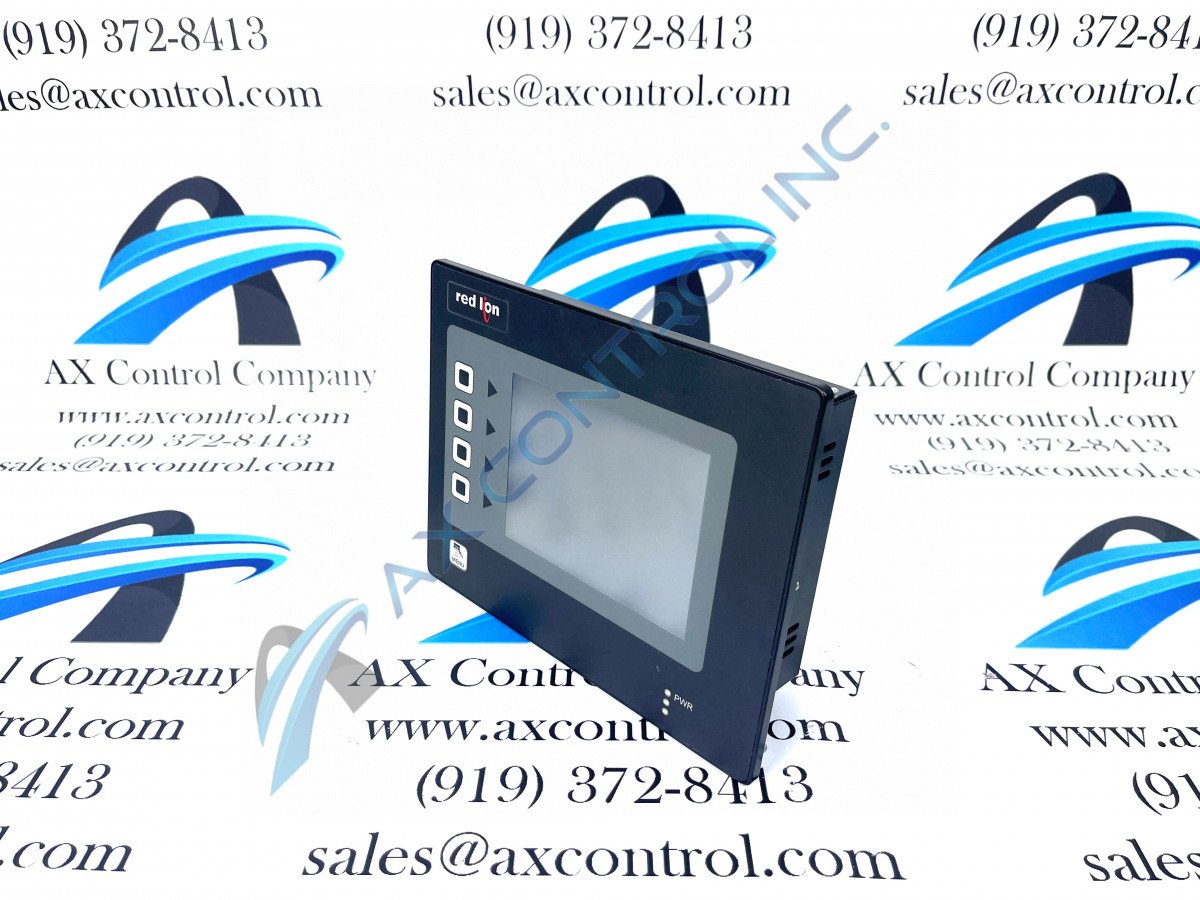

Produced by Red Lion and modeled as a Graphic Monochrome LCD Operator Interface Terminal with a 5.7" QVGA display and touchscreen the G306M010 model operates on 12 VDC rather than the standard 24 VDC. The model has a textured finish with 5 embossed keys.

A protective conductor terminal is available on the G306M010 model which will be secured to the conductive parts of the equipment to ensure the safety of the operator and the equipment itself. The protections must be connected to the external protective earthing system. The grounding terminal for this model is available on the rear of the unit and should be connected to the protective earth (earth ground).

There are three LEDs associated with the G306M010 model which are red, yellow, and green. The red LED is at the top of the line of the three and is labeled as the power LED. There are two modes that the LED uses which are steady or flashing, the flashing of the LED indicates that the unit is in the boot loader and no valid configuration is being loaded onto the device. A steady LED indicates that the unit is on and running an application properly.

The battery on the G306M010 device, which is a lithium coin cell battery type is used to keep time when the device is not powered on. The time accuracy of the timekeeping on this unit is typically less than one minute per month drift. The battery on this model does not affect any of the unit’s memory as all of the data and configuration are stored within the non-volatile memory available on this unit.

Frequently Asked Questions about G306M010

Can any communication card be used with the G306M010 panel?

Unfortunately, no the communication cards have specific power voltages and connections that must be used to ensure no potential faults occur. For example, if the communication card has its own 24 VDC connection, under no circumstances can the communication card be used with versions that operate on 12 VDC, such as this panel. To ensure that no faults or errors occur, please be mindful of the communication card and its power supply voltage.

How is the G306M010 panel mounted?

Not only was the G306M010 panel designed for thorough-panel mounting all other HMIs in the G3 series were designed that way. In some cases, DIN Rail mounting adapters can be purchased to alternatively mount the G306M010 model in a DIN Rail application. The adapters required to mount the model are DIN Rail application RJ modular jack adapters.

Reviews For G306M010

Internal Review
(5.0)

One excellent feature of the G306M010 panel is that it operates on a different power supply voltage than the other HMIs. The other HMIs in the G3 series HMIs work on a voltage of 24 VDC, meaning they can only be used with specific designs, whereas the G306M010 has a bit more flexibility with its voltage range of 10-16 VDC. More information regarding the features of this panel can be found in the G306MH-E Red Lion bulletin. - AX Control Tech
