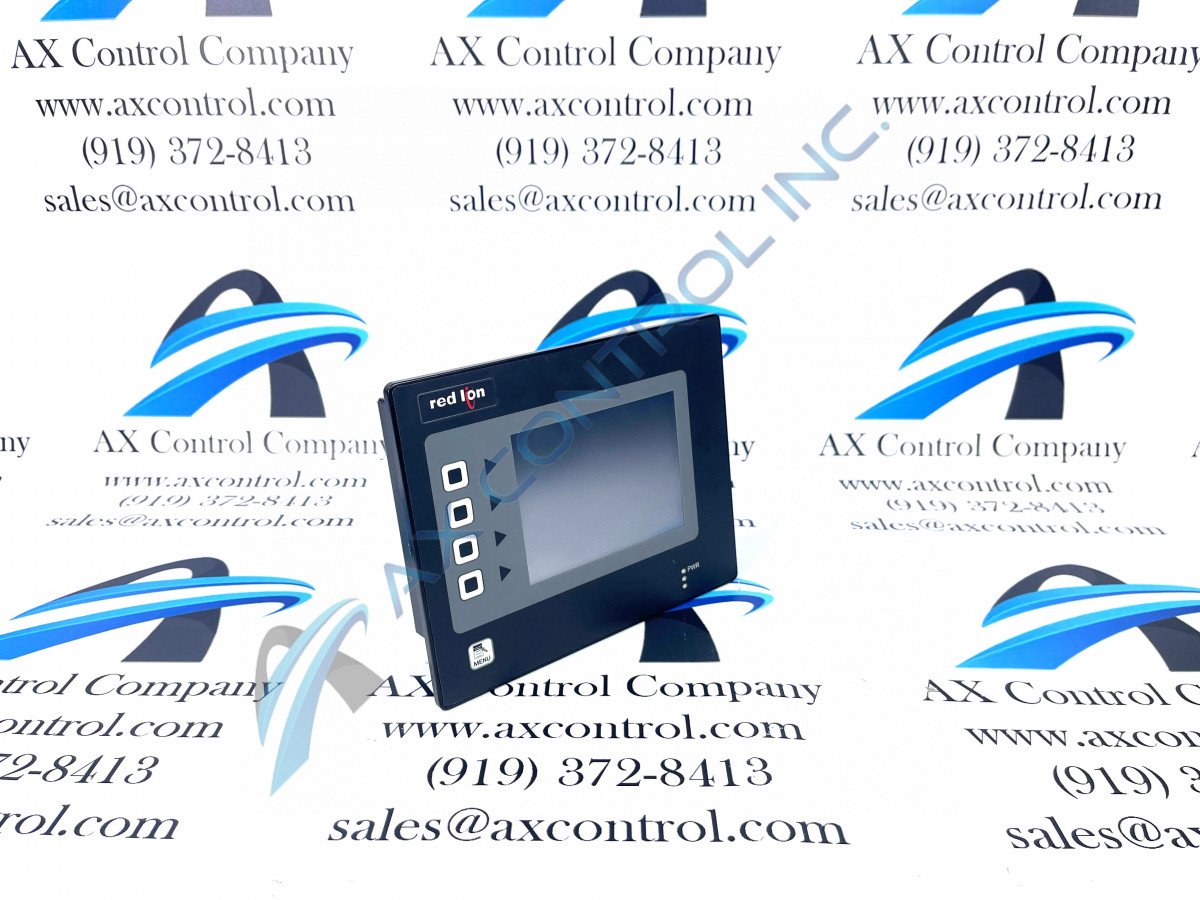

Graphic Color LCD Operator Interface Terminal with TFT QVGA Display and Touchscreen HMI G306A000 has a five-button keypad used with on-screen menus. This model was designed for through-panel mounting and requires a NEMA 4X/IP66 seal.

AVAILABILITY:

IN STOCK
SHIPS TODAY

3 Year Warranty: Learn More
Sell Surplus: Have a G306A000 to sell? Sell Now
Exchange Credit: Learn more about our exchange credit program
  • Part Number: G306A000
  • SKU: G306A000RL
  • Manufacturer: Red Lion
  • Series: G3 Series HMIs

G306A000

    Varying star amount pictures Varying star amount pictures Varying star amount pictures Varying star amount pictures Varying star amount pictures
  • 5.00 (1)
  • Click a star to rate this product
    Varying star amount pictures Varying star amount pictures Varying star amount pictures Varying star amount pictures Varying star amount pictures
  • 5.00 (1)
  • Click a star to rate this product
Graphic Color LCD Operator Interface Terminal with TFT QVGA Display and Touchscreen HMI G306A000 has a five-button keypad used with on-screen menus. This model was designed for through-panel mounting and requires a NEMA 4X/IP66 seal.

AVAILABILITY:

IN STOCK
SHIPS TODAY

3 Year Warranty: Learn More
Sell Surplus: Have a G306A000 to sell? Sell Now
Exchange Credit: Learn more about our exchange credit program
  • Part Number: G306A000
  • SKU: G306A000RL
  • Manufacturer: Red Lion
  • Series: G3 Series HMIs

G306A000 Technical Specifications

Approximate Weight 3.0 lbs.
Emissions EN55011, Class A
Expansion One CF Card Slot
IEC 682-27 Shock Rate Operational 40 g, 9 msec in 3 directions
LCD Color Type TFT with 256 Colors
Maximum Power 10 Watts
Pixel Resolution 320 x 240
Storage Temperature Range -4 to 158°F (-20 to 70°C)
Touchscreen Type Resistive Analog

Product Description

During the operation of the G306A000 HMI, a power supply of twenty-four volts of direct current is required. While the requirement is twenty-four volts it is very likely that the device will actually draw less than the maximum power rate depending on the chosen options. The model can also draw more power, some options which can cause this to occur are a CompactFlash card, additional communication types, an optional communications card, and others. All of the precautions that should be taken when mounting the power supply and HMI together can be found in the attached Red Lion bulletin on the third page.

The touchscreen on this model is described as a resistive analog screen used to help with the input. When an active touchscreen cell is sensed on the G306A000 model an audile beep (tone) will be produced. The moment that the operator interface has been initialized the touchscreen is completely functional and can be used with gloved hands if required.

There are three LEDs on the front panel of this HMI, the top LED is known as the power LED, the middle LED is identified as the yellow LED, and the bottom LED is labeled as the green LED. There are five different indicators associated with the yellow LED, which are off, flashing slowly, flashing rapidly, steady, and flickering. When the LED is flashing rapidly it will indicate the CompactFlash card is being checked. For all of the associated indicators of each LED please refer to the sixth page of the attached Red Lion Bulletin.
