64 Point PLC Input Module.

AVAILABILITY:

IN STOCK
SHIPS TODAY

Sell Surplus: Have a 8030-RIM-731 to sell? Sell Now
Exchange Credit: Learn more about our exchange credit program
  • Part Number: 8030-RIM-731
  • SKU: 8030RIM731SD
  • Manufacturer: Square D
  • Series: Symax Class 8030

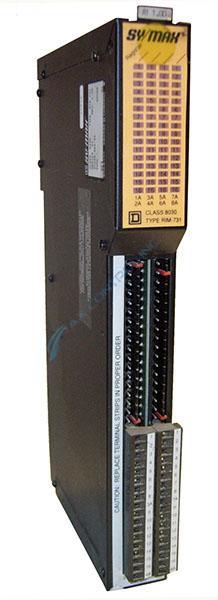

About the 8030-RIM-731

The 8030-RIM-731 is a 64 Function (Input), 24 VAC/DC Input Module by Symax. The module uses an optical type of isolation. The isolation rating for the module is 1400 VDC. The voltage operating range is 22-33 VAC (50 or 60 Hz) or VDC. The input current draw 1.7 mA at 22V and 2.5 at 32V. The must turn ON voltage is 21.5 VDC, 20 VAC (RMS). The modules must turn ON current is 1.5 mA DC, 0.5 mA AC (RMS). The turn OFF voltage is 10 VDC, 11 VAC (RMS). The must turn OFF current for the module is 0.5 mA DC, 0.5 mA AC (RMS). The input impedance for this module is 12.4K OHMS. The turn OFF and turn ON times are 8.3 ms Nominal. This module has a rated current draw on Sy/Max power supply is 600 mA at 100% duty Cycle. There are sixty-four lights on the module. Each light corresponds with one of the sixty-four inputs. These lights will illuminate red when the corresponding input module is receiving an “ON” signal from the field input device. The humidity rating for this module must be non-condensing and in the range of five to ninety-five percent humidity. The temperature for the module must also be between zero and sixty degrees Celsius in order to function properly. Please refer to the materials and instruction manuals put out by SyMax for additional information about this module.

If you would like to receive a price quote for this product call or email AX Control.

Repair Services For 8030-RIM-731

Type Lead Time Price Action
Repair Service 1-2 weeks $348

Our highly skilled technicians can repair your 8030-RIM-731. All of our repairs come with a 3 Year AX Control Warranty. Please contact us for additional information about our repair process. To receive the repair pricing and lead time listed above please process your repair order via our website. The following repair options may be available upon request:

  • 48-72hr Rush Repair
  • Detailed Repair Reports
  • AX Control Certificate of Warranty
