Groupe Schneider PLC Input Module.

AVAILABILITY:

IN STOCK
SHIPS IN 3-5 DAYS

Sell Surplus: Have a 8030-RIM-127 to sell? Sell Now
Exchange Credit: Learn more about our exchange credit program
  • Part Number: 8030-RIM-127
  • SKU: 8030RIM127SD
  • Manufacturer: Square D
  • Series: Symax Class 8030

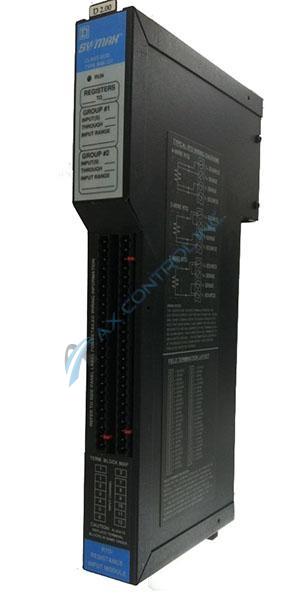

About the 8030-RIM-127

The 8030-RIM-127 is a 12 Channel RTD/Direct Resistance Input Module. The user-definable function groups are two independent input function groups can be created per module, each with its own range, RTD wire type, software averaging samples and number of inputs. For the RTD there are nineteen ranges including (alpha 3850, 3911, and 3926) 100, 200, 500, 1000- and 2000-Ohm Platinum, (alpha 6720) -120- and 600-Ohm Nickel, (alpha 5188) 604 Ohm Nickel/Iron and (alpha 4274)-10 Ohm Copper. There are five ranges in Ohms including 15, 250, 1250, 2500, and 5000 Ohms. The accuracy of this module is as follows 120 Ohm nickel and all platinum RTD ranges except 500 Ohm: 0.1% of full scale at 25 deg. C. All direct resistance ranges except 1250 and 15 Ohm: 0.1% of full scale at 25 deg. C 500 Ohm platinum RTD, 600 Ohm nickel RTD, 604 Ohm nickel--Iron RTD and 1250 Ohm resistance: 0.15%of full scale at 25 degrees Celcius All ranges including 10 Ohm copper RTD and 15 Ohm resistance: 0.5% of full scale over 0--60 deg. C. The resolution for the module (RTD) is in degrees of Celsius or Fahrenheit 0.1% full scale 5 parts in 10,000. The direct resistance is 0--15 Ohms 0.01% 0--250 Ohms 0.1% 0--1250 Ohms 0.1% 0-- 2500 Ohms 1.0% 0--5000 Ohms 1.0% full scale 5 parts in 10,000. The calibration is automatic. The invalid EEPROM rating is bit 15 of register 15 turns ON when the EEPROM is invalid.

Email or call AX Control for a quote.

Repair Services For 8030-RIM-127

Type Lead Time Price Action
Repair Service 1-2 weeks $334

Our highly skilled technicians can repair your 8030-RIM-127. All of our repairs come with a 3 Year AX Control Warranty. Please contact us for additional information about our repair process. To receive the repair pricing and lead time listed above please process your repair order via our website. The following repair options may be available upon request:

  • 48-72hr Rush Repair
  • Detailed Repair Reports
  • AX Control Certificate of Warranty

AX Control Warranty Info

All products we sell are backed by our unparalleled warranty. A warranty certificate will be provided with your order upon request.
All PLCs, HMIs, and Turbine Control Boards: 3 Years
All AC/DC and Servo Drives: 2 Years
All Motors: 1 Year
Learn More

8030-RIM-127 Manuals, White Papers, Data Sheets, and Troubleshooting
