8030-RIM-126 Square D SyMax Thermocouple Isolated Analog Input Module

AVAILABILITY:

IN STOCK
SHIPS TODAY

Sell Surplus: Have a 8030-RIM-126 to sell? Sell Now
Exchange Credit: Learn more about our exchange credit program
  • Part Number: 8030-RIM-126
  • SKU: SD-1792
  • Manufacturer: Square D
  • Series: Symax Class 8030

8030-RIM-126 Technical Specifications

Manufacturer Square D
Series Symax Class 8030
Part Number 8030-RIM-126
Functional Description Square D Sy/Max Thermocouple Isolated Analog Input Module
Shipping Weight 4 lb

About the 8030-RIM-126

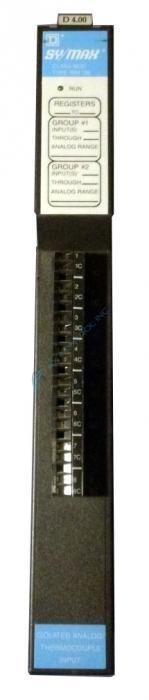

8030-RIM-126 Symax Module Hardware

The 8030-RIM-126 Thermocouple Isolated Analog Input Module from Symax. This module has eight inputs per module with two range groups that the user can choose from. The registers required for rack addressing is twelve. The user definable function group is two independent input function groups, each with its own range and number of outputs. There are seven high level ranges (0-5 VDC, 1-5 VDC, 0-10 VDC, +/- 5 VDC, +/- 10 VDC, 0-20mA, and 4-20mA. There are also:

  • nine low-level ranges +/- 50 mVDC
  • thermocouple types J, K, T, E, B, R, S, C
  • automatic calibration

The under-range indication if using VDC, mA, or mVDC is converted to -1 for the 1-5 VDC and the 4-20mA inputs at signals less than 0.9 VDC and 3.6 mA respectively. All other unipolar and bipolar voltage ratings are converted to zero. The over-range indication if using VDC, mA, mVDC is converted to 9999. Use greater than or equal to on programming the comparison rungs. If using the thermocouple function the under-range is provided in RIM-126 register number 10, the bits 1 through 8 turns ON for channels 1 through 8 respectively. The over-range indication for the thermocouple is also provided in RIM-126 register number 9, the bits 9 through 16 turns on channels 1 through 8 respectively. The update time in fast mode will update all 8 high-level input channels in 12 msec. and for all 8 thermocouple input channels, they will update in 260 msec.


Frequently Asked Questions about 8030-RIM-126

Would this 8030-RIM-126 module's Symax product series be classified as a legacy one?

Yes. The Symax Class 8030 that this 8030-RIM-126 belongs to is a legacy product series, meaning that its original production was eventually halted.

What is the unique function behind the 8030-RIM-126 here?

As explained above, this 8030-RIM-126 product holds important functional qualities as a Thermocouple Isolated Analog Input Module to be specific.
