Symax PLC 16 Point Input Module.

AVAILABILITY:

IN STOCK
SHIPS TODAY

Sell Surplus: Have a 8030-RIM-101 to sell? Sell Now
Exchange Credit: Learn more about our exchange credit program
  • Part Number: 8030-RIM-101
  • SKU: 8030RIM101SD
  • Manufacturer: Square D
  • Series: Symax Class 8030

About the 8030-RIM-101

SY/MAX 8030-RIM-101 is a Remote I/O. This product has sixteen inputs per module. The type of isolation for this product is optical. The 8030-RIM-101 has an isolation rating of 2500 V RMS. The voltage operating range is 90-132 VAC (50/60 Hz) or VDC. The input current draw is 6mA at 90 V and 10mA at 138 V.

The must turn-on voltage is 90V. The must turn-on current is 6mA (at 90V). The must turn off current is 2mA (at 25V). The input impedance is 14.4K Ohms resistive. The turn-on time for this product is 8ms Nominal, and the turn off time is also 8ms Nominal. The rated current draw on Sy/Max Power supply is 300 mA at 100% duty cycle.

The ambient temperature rating for this product is zero to sixty (0-60) degrees Celsius. The humidity rating is five to ninety-five percent (5-95%) as long as it’s a non-condensing humidity.

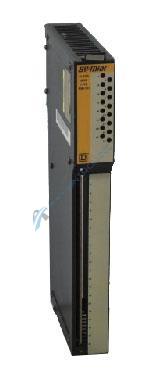

The top of this remote I/O has sixteen small numbered LEDs. The front panel has a large section of screw inputs. They are labeled as such Input 1 (01), Input 2 (02), Input 3 (03), Input 4 (04), L2 (1A), Input 5 (05), Input 6 (06), Input 7 (07), Input 8 (08), L2 (2A), Input 9 (09), Input 10 (10), Input 11 (11), Input 12 (12), L2 (3A), Input 13 (13), Input 14 (14), Input 15 (15), Input 16 (16), and L2 (4A).

If you would like further details please refer to the manual for the 8030-RIM-101.  AX Control maintains a multi-million dollar inventory of surplus industrial automation equipment parts for sale.
