8030-PS-35

    Varying star amount pictures Varying star amount pictures Varying star amount pictures Varying star amount pictures Varying star amount pictures
  • 5.00 (5)
  • Click a star to rate this product
    Varying star amount pictures Varying star amount pictures Varying star amount pictures Varying star amount pictures Varying star amount pictures
  • 5.00 (5)
  • Click a star to rate this product

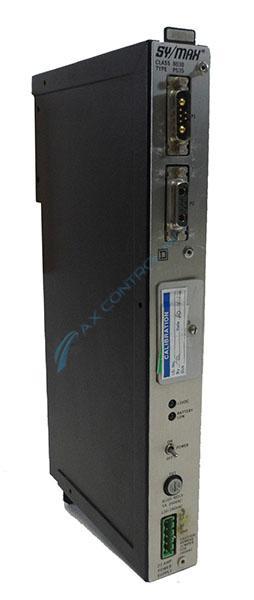

The 8030-PS-35 is a power supply module from the Schneider/Square D/SyMAX line.

AVAILABILITY:

IN STOCK
SHIPS IN 3-5 DAYS

Sell Surplus: Have a 8030-PS-35 to sell? Sell Now
Exchange Credit: Learn more about our exchange credit program
  • Part Number: 8030-PS-35
  • SKU: SD-1780
  • Manufacturer: Square D
  • Series: Symax Class 8030

8030-PS-35 Technical Specifications

Manufacturer Square D
Series Symax Class 8030
Part Number 8030-PS-35

About the 8030-PS-35

  • The 8030-PS-35 is a power supply module from the Schneider/Square D/SyMAX line.
  • It's designed to provide +5 VDC power to connected PLCs from the same company.
  • The unit includes a lithium battery backup for RAM (random access memory) on the processor and other rack modules.
  • It can be used as a standalone mounted unit or a side-mounted unit with an ADP100 adapter plate.

Electrical Specifications & Connections
  • The P1 connector works with a CC15 cable, capable of carrying:
    • 23 Amps at 40 degrees Celsius.
    • 20.2 Amps at 50 degrees Celsius.
    • 15 Amps at 60 degrees Celsius.
  • Connection Points:
    • P1 Connector (seven openings):
      • A1 - +5VDC
      • 1 - AC FAIL
      • 2 - BPOW
      • A2 - Common
      • 3 - No Connection
      • 4 - Battery Low
      • 5 - No Connection
    • P2 Connector (labeled as follows):
      • A2 - Common
      • 2 - BPOW
      • 1 - AC FAIL
      • A1 - +5 VDC
      • 5 - No Connection
      • 4 - No Connection
      • 3 - No Connection

Physical Features
  • The front of the unit has a section for battery installation.
  • Below the battery section are two indicator lights: one labeled +5VDC and the second labeled Battery Low.
  • Unlike the P35F unit, this model includes a power toggle switch.

Documentation & Availability
  • Refer to Square D or Schneider manuals and user guides for more information.
  • AX Control maintains on-hand stock of many Square D power supplies to quickly fulfill orders.
