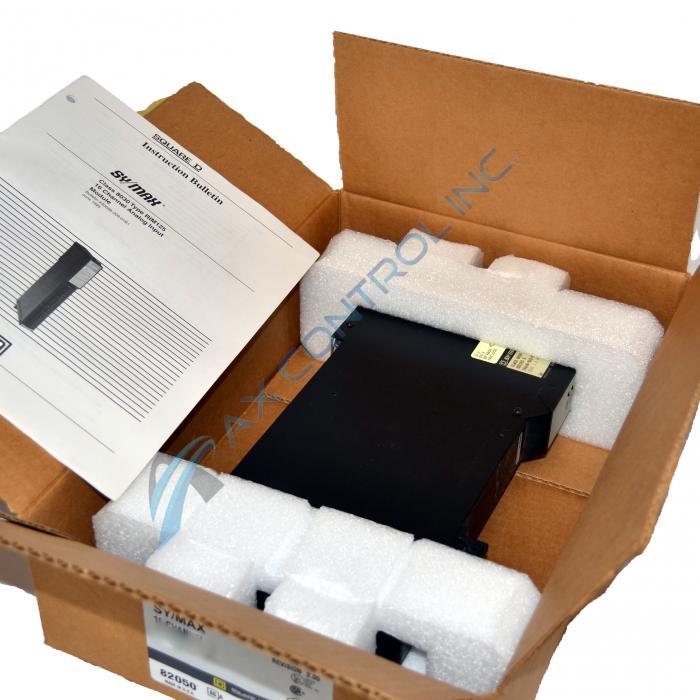

Class 8030 Type HOM-251 8 Function 60-160 VDC Output

AVAILABILITY:

IN STOCK
SHIPS TODAY

Sell Surplus: Have a 8030-HOM-251 to sell? Sell Now
Exchange Credit: Learn more about our exchange credit program
  • Part Number: 8030-HOM-251
  • SKU: 8030HOM251SD
  • Manufacturer: Square D
  • Series: Symax Class 8030

Product Description

Up to 8 manufacturing process loads can be driven by the Type HOM-251 60-160 VAC Output Module. The outputs are optically isolated which enables the output devices connected to this module to be powered by 8 different voltage sources.

The module contains an LED on the front of the module for each output, which when lit, indicates that the output is receiving an ON signal from the processor.

The 8 outputs are grouped into two sets of four outputs. Each group shares a common terminal (two common terminals per module). Two LEDs on the front of the module, one for each group of 4 outputs, illuminate when a blown fuse is detected. A space for  labeling is provided next to each output for identification.

The maximum current rating of each output is 1.5 A in a 0℃ to 45℃ environment and 1.25 A in 45℃ to 60℃. Total module output current rating is 12 A in a 0℃ to 50℃ environment and 10 A in 50℃ to 60℃.

The maximum Off state leakage is 5.0 mA maximum. The maximum surge current is 10 A for 5 msec (no more than 1 time/second). The rated module current draw on a Sy/Max power supply is 385 mA per module at 75% duty cycle and 455 mA per module at 100% duty cycle.

The fuse type rated for the module is AGC 3, 3A, 250 V. Each of the 8 outputs is individually fused. Lower-rated fuses can be installed, depending on the output devices being controlled. Fuses are accessible through openings in the side of the module.

The ambient temperature rating is 0-60℃. The humidity rating is 0-95% non-condensing. The weight (unpackaged) is 1.8 lbs (0.83 kg).
