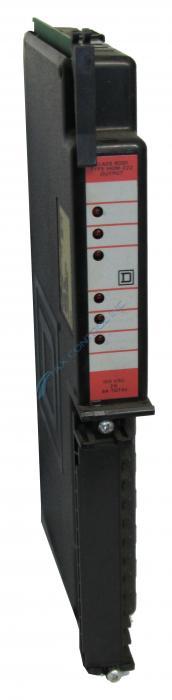

Class 8030 Type HOM-222 Isolated 6 Function 120 VAC Output

AVAILABILITY:

IN STOCK
SHIPS TODAY

Sell Surplus: Have a 8030-HOM-222 to sell? Sell Now
Exchange Credit: Learn more about our exchange credit program
  • Part Number: 8030-HOM-222
  • SKU: 8030HOM222SD
  • Manufacturer: Square D
  • Series: Symax Class 8030

Product Description

The Type HOM-222 VAC Isolated Output Module contains six individually optically isolated outputs. Optical isolation enables the output devices connected to this module to be powered by 6 different voltage sources. This provides the site with flexibility in configuring the electrical requirements.

A maximum of 6 loads can be driven by the Type HOM-222 120 VAC Output Module. When an ON signal is issued by the processor, an LED located in the front of the module is lit. Each individual output has an LED that indicates activity. A space is provided next to each LED to place a label to identify the output.

The loads of the HOM-222 are divided into two sets of three loads and each group shares a common terminal (two common terminals per module).

The maximum current is 2 Amp per output and a total of 9 Amps per module in a 0-50℃ temperature environment and 10 A in 50-60℃. The maximum Off state leakage is 2.0 mA at 138V 50/60 Hz. The maximum On state voltage drop across output is 2.0 V at 2 A load. The maximum surge current is 25 A for 1 cycle (60 Hz) (no more than 1 one per second). The rated module current draw on a Sy/Max power supply is 225 mA per module at 75% duty cycle and 270 mA per module at 100% duty cycle.

The fuse type rated for the module is AGC 3, 3A, 250 V. Each of the 6 outputs is individually fused. Lower-rated fuses may be installed, depending on the output devices being controlled. Fuses are accessible through openings in the side of the module.

The ambient temperature rating is 0-60℃. The humidity rating is 0-95% non-condensing. The weight (unpackaged) is 1.8 lbs (0.806 kg).

Repair Services For 8030-HOM-222

Type Lead Time Price Action
Repair Service 1-2 weeks $378

Our highly skilled technicians can repair your 8030-HOM-222. All of our repairs come with a 3 Year AX Control Warranty. Please contact us for additional information about our repair process. To receive the repair pricing and lead time listed above please process your repair order via our website. The following repair options may be available upon request:
