Square D Sy/Max 4-Point Module

AVAILABILITY:

IN STOCK
SHIPS TODAY

Sell Surplus: Have a 8030-CIM-101 to sell? Sell Now
Exchange Credit: Learn more about our exchange credit program
  • Part Number: 8030-CIM-101
  • SKU: 8030CIM101SD
  • Manufacturer: Square D
  • Series: Symax Class 8030

About the 8030-CIM-101

The 8030-CIM-101 is a Square D Sy/Max 8030 CIM-101 120VAC/DC Input module.  This module is designed to work in conjunction with an 8030 power supply.  The input module has a 30 mA current draw rating @ both 75% and 100% duty cycle.  A maximum of ten modules of different types can be operated from one power supply, but only when their total current draw doesn’t exceed the supply’s rating.

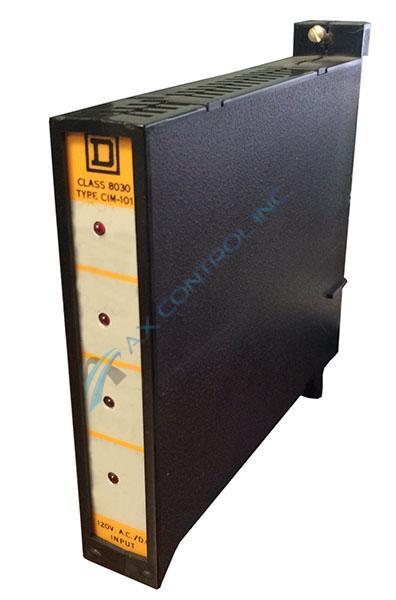

The 8030-CIM-101  is typically mounted within a rack assembly.  The unit is designed with a front panel that has four individual sections, each with its own red LED indicator. This indicator is used as an on/off identifier for the I/O point.   The front panel is marked with the unit’s identification and with the Square D logo.  The rear of the unit is designed to plug directly into the rack system.  This I/O module offers standard 4-function input and output.

The 8030-CIM-101 has 255 registers that are forceable.    These registers can be used for either internal I/O control relays or for external I/O addresses.  Other registers will depend on the hardware configuration and how register memory is assigned by the user.

More detailed information and instructions regarding this unit and its proper handling, installation, and configuration can be found within original documentation provided by Schneider Electric/ Square D Symax.  Please refer to these documents before you unbox your purchase from AX Control.   Our company maintains a large on-hand stock of Schneider components so we can more quickly provide you with service.  Most in-stock products will ship out to you within hours of your order being processed, Monday through Friday.
