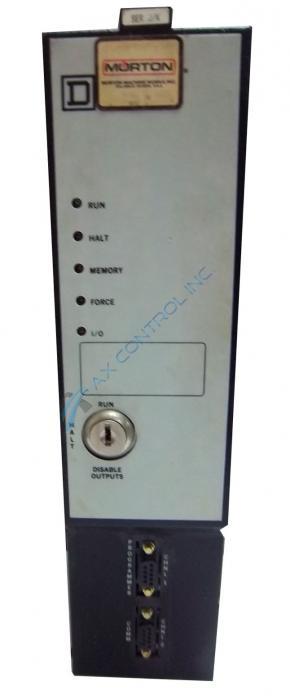

Square D Sy/Max Class 8020 SCP-522 8020SCP522 Processor Module.

AVAILABILITY:

IN STOCK
SHIPS TODAY

Sell Surplus: Have a 8020-SCP-522 to sell? Sell Now
Exchange Credit: Learn more about our exchange credit program
  • Part Number: 8020-SCP-522
  • SKU: 8020SCP522SD
  • Manufacturer: Square D
  • Series: Symax Class 8020

Product Description

8020-SCP-522 is a Model 500, 4K Processor with RAM that is manufactured by Square D. CPU/LI errors on the processor fall into the 30000-32700 range. The second and third number can be replaced by 00 to 27.

  • 00 is a status register read/write parity error.

  • 01 is an image RAM read/write parity error.

  • 02 is an internal register data error.

  • 03 is an illegal PROM format.

  • 04 is an illegal opcode encountered in RUN.

  •  05 is a bus error signal error.

  • 06 is a software watchdog error.

  • 07 and 08 are not used.

  •  09 is a user memory read/write parity error.

  • 10 means there is illegal data in the user memory.

  • 11 means that the PROM memory is corrupted.

  •  12 is an illegal addressing map code.

  •  13 means that the transmission error exceeds tolerance.

  •  14 means that there is a loss of transmission.

  • 15 means that there are more external I/O registers assigned than the module can handle.

  •  16 means that there are too many registers assigned to the drop.

  •  17 means that the module is addressing more than 8 drops per channel.

  •  18 means that the addressing number of channels exceeded the module capabilities.

  •  19 means that there is an addressing map checksum error.

  •  20 means that there is a bus error (watchdog timeout).

  •  21 is a BPU diagnostic error.

  •  22 means that the parity circuit is non-functional.

  •  23 means that there is a clear line error.

  • 24 is an executive scratch RAM error.

  • 25 is a watchdog tolerance error.

  • 26 is a hardware diagnostic error.

  •  27 means that the module is inactive.
