Square D Sy/max Class 8005 TT-116 Output Transistor Module.

AVAILABILITY:

IN STOCK
SHIPS TODAY

Contact: 1-919-372-8413 (Intl.), 1-800-991-7026 (US), sales@axcontrol.com

Warranty: Learn More

Sell Surplus: Have a 8005-TT-116 to sell? Sell Now

Exchange Credit: Learn more about our exchange credit program

8005-TT-116

    Varying star amount pictures Varying star amount pictures Varying star amount pictures Varying star amount pictures Varying star amount pictures
  • 5.00 (3)
  • Click a star to rate this product
    Varying star amount pictures Varying star amount pictures Varying star amount pictures Varying star amount pictures Varying star amount pictures
  • 5.00 (3)
  • Click a star to rate this product
Square D Sy/max Class 8005 TT-116 Output Transistor Module.

AVAILABILITY:

IN STOCK
SHIPS TODAY

Contact: 1-919-372-8413 (Intl.), 1-800-991-7026 (US), sales@axcontrol.com

Warranty: Learn More

Sell Surplus: Have a 8005-TT-116 to sell? Sell Now

Exchange Credit: Learn more about our exchange credit program

8005-TT-116 Technical Specifications

Manufacturer Square D
MPN 8005-TT-116
Series SY/MAX Class 8005
Type Function Transistor Output Module

Product Description

Schneider Electric Square-D created the 8005-TT-116 to be a part of the SY/MAX Class 8005 series.

The 8005-TT-116 has 16 outputs and has an output rating of 0.5 amps and 24 VDCs. It has a related load voltage of 12-28 VDC and a max load current of 0.5 A per circuit. It has a max rush current of 7 A and an external draw of 12 VDC to 28 VDC at 30 mA. It has a maximum internal current draw of 40 mA. It has a turn on and off time of 1 msec. It has an on voltage that is a minimum of +V minus 1.5.

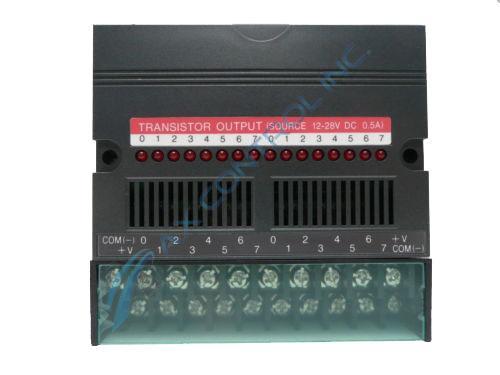

The 8005-TT-116 is a small rectangular module that weighs right around 0.5 lbs. It has two terminal strips on it that contain 10 M3.5 terminal screws on each of them. Four of the terminals are not actually connected together internally and are often not used. These four screws are labeled COM (-) +V. The other terminal screws are grouped by which side of the module they are on. The top and bottom screws on the right are labeled 0-7 and the top and bottom screws on the left are also labeled 0-7. There is a bank of sixteen LEDs that correspond to the active terminals. They are also labeled numerically according to their corresponding indicators. There are two air vents on the module that are between the indicator LEDs and the terminal strips. These air vents help to get air circulating to the internal components of the 8005-TT-116.

Frequently Asked Questions about 8005-TT-116

What is the function of the 8005-TT-116?
The 8005-TT-116 is transistor output module that connects onto the front of a SY/MAX Class 8005 programmable logic controller.
What is the voltage of the 8005-TT-116?
The 8005-TT-116 has a voltage of 120-240 VAC.
Can AX Control repair my 8005-TT-116?
AX Control technicians can complete board level repairs on your 8005-TT-116. If you aren't sure why you device isn't functioning properly, AX Control can troubleshoot it for you.

Repair Services For 8005-TT-116

Type Lead Time Price Action
Repair Service 1-2 weeks $246

Our highly skilled technicians can repair your 8005-TT-116. All of our repairs come with a 3 Year AX Control Warranty. Please contact us for additional information about our repair process. To receive the repair pricing and lead time listed above please process your repair order via our website. The following repair options may be available upon request:
