3050-EGW1

Product Description

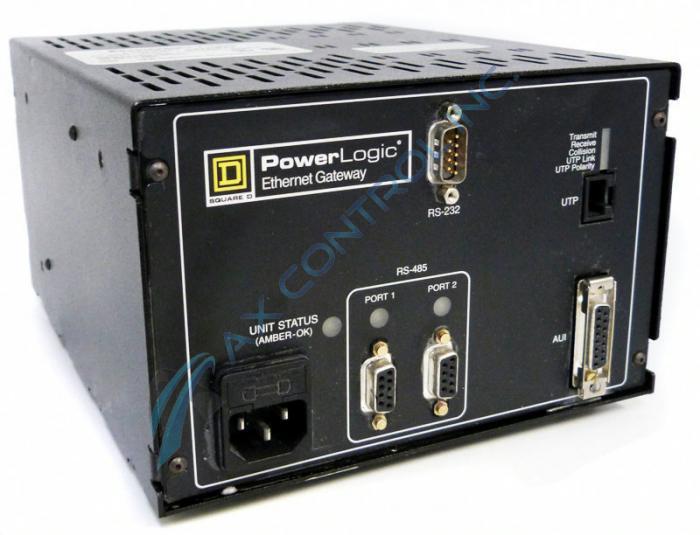

3050-EGW1 is a PowerLogic Ethernet Gateway that allows communications with POWERLOGIC compatible devices over standard Ethernet-TCP/IP networks. This Square D part includes one or two RS-485 serial ports at 19.2 K Baud, standard AUI and RJ-45 ethernet ports, up to 10 simultaneous logical connections from the host device per RS-485 port, and on-board security lockout (user configurable), integral 12 VDC AUI control power, and diagnostic LEDs on the RS-485 ports and the RJ-45 ethernet ports. The ethernet gateway is fully TCP/IP and OSI compliant, as well as UL and CSA certified. 3050-EGW1 can be mounted on a tabletop or a wall. The dimensions are 4.76 in x 7.25 in x 9.05 in. This part runs on 120/240 VAC, 125 VDC control power.

The minimum PC requirements for the System Manager Software (SMS-3000) are Microsoft Windows NT or Windows 95, a VGA monitor, a pentium processor, 32 MB RAM, a 500 MB hard disk if the database is on the same PC, a CD ROM (recommended), a standard ethernet network interface card, a 14.4K Baud modem (28.8 K recommended), and a sound card (recommended). SMS-3000 user client server technology for managing activity and information on the Ethernet network. This is ideal for systems where multiple users need access to power system information. The POWERLOGIC Network Server, which may be a dedicated Windows NT workstation or any one of the user’s personal computers, ‘serves’ requested information to users elsewhere on the network running System Manager client software. All users share a common historical database through Microsoft’s Open Database Connectivity (ODBC) standard, which is supported by a wide variety of software vendors as an open solution.
