3020-IOM-4444-20

    Varying star amount pictures Varying star amount pictures Varying star amount pictures Varying star amount pictures Varying star amount pictures
  • 4.75 (8)
  • Click a star to rate this product
    Varying star amount pictures Varying star amount pictures Varying star amount pictures Varying star amount pictures Varying star amount pictures
  • 4.75 (8)
  • Click a star to rate this product
3020-IOM-4444-20 is an I/O module

AVAILABILITY:

IN STOCK
SHIPS TODAY

Contact: 1-919-372-8413 (Intl.), 1-800-991-7026 (US), sales@axcontrol.com

Warranty: Learn More

Sell Surplus: Have a 3020-IOM-4444-20 to sell? Sell Now

Exchange Credit: Learn more about our exchange credit program

Product Description

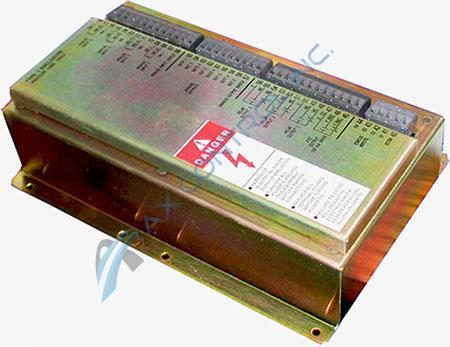

PowerLogic 3020-IOM-4444-20 is an I/O (Input/Output) module from Square D/Schneider Electric. 3020-IOM-4444-20 can be used to count pulses, count motor starts, detect breaker status, and other mechanical applications. Status input S2 is a high-speed status input which, when tied to an external relay, will trigger the circuit monitor's 12-cycle event capture feature. This module is designed with 4 status IN, 1 KYZ pulse OUT, 3 Form-C relays OUT, 4 Analog IN, and 4 Analog OUT (4-20mA.) The 3020-IOM-4444-20 has a maximum control power burden of 21VA at 120V and 27V at 240V.

It is important to note the 3020-IOM-4444-20 can be configured to accept a demand synch pulse from another demand meter through status input S1. The demand synch feature can be activated from the circuit monitor's front panel. The maximum allowable time between pulses is 60 minutes.

As noted above, the 3020-IOM-4444-20 has 4 Analog outputs. To setup analog outputs, software is required. The user must define the following:

  • Analog output label --four characters to identify the output.

  • Output range--maximum range is 4-20mA.

  • Register number--the circuit monitor number assigned to this analog output.

  • Lower limit--minimum output current (4mA.)

  • Upper limit--maximum output current (20mA.)

Each analog output is considered its own 2-wire current loop and must have an isolated receiver dedicated for each output. Equipment damage can result if this precaution is not observed.

A relay diagram is located on the back of the 3020-IOM-4444-20. Indoor use only, type 1 enclosure. The unit mounts with seven screws.

Repair Services For 3020-IOM-4444-20

Type Lead Time Price Action
Repair Service 1-2 weeks Ask Get Quote

Our highly skilled technicians can repair your 3020-IOM-4444-20. All of our repairs come with a 3 Year AX Control Warranty. Please contact us for additional information about our repair process. To receive the repair pricing and lead time listed above please process your repair order via our website. The following repair options may be available upon request:

  • 48-72hr Rush Repair
  • Detailed Repair Reports
  • AX Control Certificate of Warranty

AX Control Warranty Info

All products we sell are backed by our unparalleled warranty. A warranty certificate will be provided with your order upon request.
All PLCs, HMIs, and Turbine Control Boards: 3 Years
All AC/DC and Servo Drives: 2 Years
All Motors: 1 Year
Learn More
