Class 3020 Type CM-2250 Circuit Monitor by Square D PowerLogic

AVAILABILITY:

IN STOCK
SHIPS TODAY

Contact: 1-919-372-8413 (Intl.), 1-800-991-7026 (US), sales@axcontrol.com

Warranty: Learn More

Sell Surplus: Have a 3020-CM-2250 to sell? Sell Now

Exchange Credit: Learn more about our exchange credit program

3020-CM-2250

    Varying star amount pictures Varying star amount pictures Varying star amount pictures Varying star amount pictures Varying star amount pictures
  • 4.75 (4)
  • Click a star to rate this product
    Varying star amount pictures Varying star amount pictures Varying star amount pictures Varying star amount pictures Varying star amount pictures
  • 4.75 (4)
  • Click a star to rate this product
Class 3020 Type CM-2250 Circuit Monitor by Square D PowerLogic

AVAILABILITY:

IN STOCK
SHIPS TODAY

Contact: 1-919-372-8413 (Intl.), 1-800-991-7026 (US), sales@axcontrol.com

Warranty: Learn More

Sell Surplus: Have a 3020-CM-2250 to sell? Sell Now

Exchange Credit: Learn more about our exchange credit program

Product Description

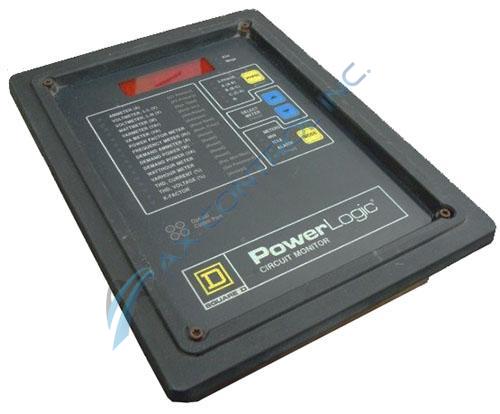

The 3020-CM-2250 is a PowerLogic circuit monitor from SquareD (Schneider Electric.) The 3020-CM-2250 is designed to replace an array of relays, meters, transducers and other components. The module comes standard with RS-485 communications, which allows for easy integration into almost all power monitoring or control systems.



The 3020-CM-2250 comes standard with a variety of features, including:

  • Waveform capture capabilities--both 64 and 128 point capture

  • Six-digit LED screen

  • 0.2% accuracy

  • Onboard data and event logging

  • Alarm/relay functions (setpoint-controlled)

  • Downloadable firmware

The 3020-CM-2250 will store up to 51,200 values when all the module's logging memory is dedicated to data logging. Below is a list of values stored in the 3020-CM-2250's maintenance logs, which cannot be reset, and which are cumulative:

  • Number of Demand resets

  • Number of Energy resets

  • Number of Max/Min resets

  • Number of Output operations

  • Number of Power Losses

  • Number of Firmware Downloads

  • Number of Optical Comms Sessions

  • Highest Temperature Monitored

  • Lowest Temperature Monitored

As noted before, the 3020-CM-2250 is equipped with 4-cycle waveform capture. This feature can be used manually, using software, from a personal computer. Alternately, the user can set up alarm conditions within the circuit monitor to allow for automatic capture. It is worth noting the 3020-CM-2250 can only capture and store one waveform at any time. Each new waveform capture, whether manual or automatic, will replace the last waveform data. The captured waveform does not affect event or data log storage space, which is stored separately.



The 3020-CM-2250 is rated for 100VAC/20VA-264VAC /27VA 50/60Hz 100VDC-300VDC /.12A.

Repair Services For 3020-CM-2250

Type Lead Time Price Action
Repair Service 1-2 weeks Ask Get Quote

Our highly skilled technicians can repair your 3020-CM-2250. All of our repairs come with a 3 Year AX Control Warranty. Please contact us for additional information about our repair process. To receive the repair pricing and lead time listed above please process your repair order via our website. The following repair options may be available upon request:

  • 48-72hr Rush Repair
  • Detailed Repair Reports
  • AX Control Certificate of Warranty

AX Control Warranty Info

All products we sell are backed by our unparalleled warranty. A warranty certificate will be provided with your order upon request.
All PLCs, HMIs, and Turbine Control Boards: 3 Years
All AC/DC and Servo Drives: 2 Years
All Motors: 1 Year
Learn More

3020-CM-2250 Manuals, White Papers, Data Sheets, and Troubleshooting
