Product Description

The 3020-CM-2050 is a PowerLogic Circuit monitor by Square D (Schneider Electric.) The 3020-CM-2050 is a data acquisition and control device with digital instrumentation and multiple functions. The 3020-CM-2050's six digit LED display allows the user to access 50 metered values and considerable minimum and maximum data.

The 3020-CM-2050 has the following features:

  • Accepts standard Current Transformer (CT) and Potential Transformer (PT) inputs

  • Certified ANSI C12.16 revenue accuracy

  • True RMS metering to the 31st harmonic

  • Power quality readings of THD, K-factor, crest factor

  • Real-time harmonic angles and magnitudes.

The 3020-CM-2050 has an instrumentation accuracy of 1%, plus or minus. The 3020-CM-2050 keeps real-time readings in its nonvolatile memory. It is important to note the 3020-CM-2050, unlike other PowerLogic circuit monitors in the 2000 series, does not have expandable memory. Also, the 3020-CM-2050 provides no nonvolatile logging memory.

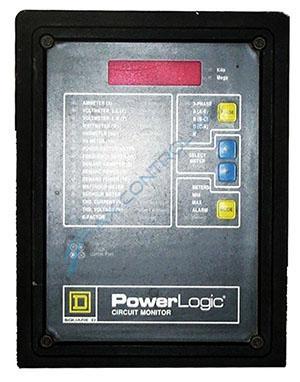

The front panel of the 3020-CM-2050 has the following four panels below its LED display:

Top right, with a yellow "Phase" enter control--

  • 3-phase

  • A (A-B)

  • B

  • C (C-A)

  • N

Middle right, with blue up/down enter controls--

  • Select Meter [Value]

Bottom right, with a yellow "Mode" enter control--

  • Meters

  • Min

  • Max

  • Alarm

  • [Setup]

Left:

  • Ammeter (A) (CT Primary)

  • Voltmeter, L-L (V) (PT Primary)

  • Voltmeter, L-N (V) (Sys. Type)

  • Wattmeter (W) (Dmd.Int.)

  • Varmeter (VAr) (WH/Pulse)

  • VA Meter (VA) (Address)

  • Power Factor Meter (Baud Rate)

  • Frequency Meter (Hz) (Nom. Freq.)

  • Demand Ammeter (A) (Reset)

  • Demand Power (W) (Reset)

  • Watthour Meter (Reset)

  • Varhour Meter (Reset)

  • Thd, Current (%) (Rst. Min/Max)

  • Thd, Voltage (%) (Set Password)

  • K-factor (Accept)

The 3020-CM-2050 is rated 100VAC to 264VAC, and 100VDC to 300VDC. 50/60Hz, 14VA.
