1SU44005

    Varying star amount pictures Varying star amount pictures Varying star amount pictures Varying star amount pictures Varying star amount pictures
  • 4.67 (9)
  • Click a star to rate this product
    Varying star amount pictures Varying star amount pictures Varying star amount pictures Varying star amount pictures Varying star amount pictures
  • 4.67 (9)
  • Click a star to rate this product

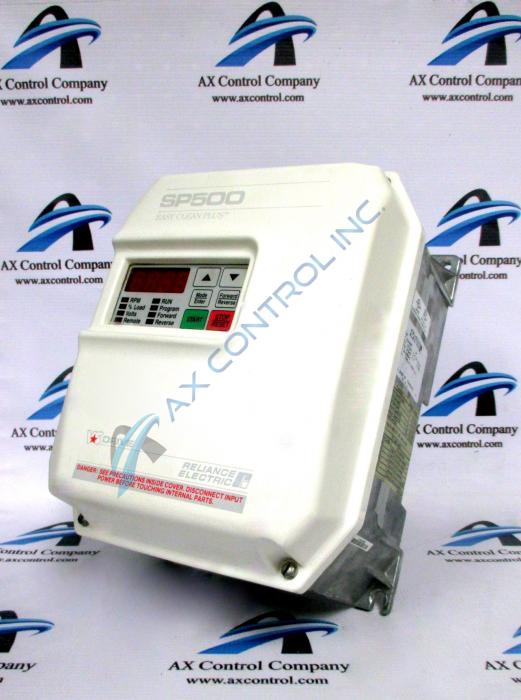

The 1SU44005 AC Drive by Reliance Electric is a 5HP 460VAC Type 4X Enclosure model that was manufactured as part of the SP500 AC Drives Series.

AVAILABILITY:

IN STOCK
SHIPS IN 3-5 DAYS

Sell Surplus: Have a 1SU44005 to sell? Sell Now
Exchange Credit: Learn more about our exchange credit program
  • Part Number: 1SU44005
  • SKU: 1SU44005RE
  • Manufacturer: Reliance Electric
  • Series: SP500 AC Drives

1SU44005 Technical Specifications

Manufacturer Reliance Electric
Series SP500
Part Number 1SU44005
HP 5 HP
Input Voltage 380-460 VAC
Enclosure NEMA 4X (Indoor Only)/NEMA 12
Hz 50/60Hz
Labeling UL Listed, IEC Certified

About the 1SU44005

1SU44005 is an SP500 drive that is manufactured by Reliance Electric. This drive has a rated horsepower of 5.0 HP and is contained in a NEMA 4/12 enclosure. The rated voltage is 380-460 VAC based on the drive model number. The enclosure size for this drive is size B. The dimensions of Enclosure B are 301.7 mm (11.88 in) (H) x 160.1 mm (6.3 in) (D) x 222.3 mm (8.75 in) (W). The weight of enclosure B is 5.4 kg (12 lb). Enclosed drives such as the NEMA 4/12 have to operate between 0° to 40° C (32° to 104° F).

IET Output Enable is the F-09 parameter. When this setting is off, this is an indication that the controller is running. When this setting is on, this is an indication of an IET fault. The fault will remain until it is cleared by the user pressing the “STOP/RESET” key (in Local operation) or by using the remote IET reset signal (for Remote operation). Carrier Frequency is the F-10 parameter. This setting ranges from 4-8 KHz and helps compensate for acoustic noise, heating, and other current problems by adjusting the switching frequency of the transistors in the inverter section. This setting also controls the width of the pulse and keeps the current smooth to the motor. A carrier frequency at 4 KHz maximizes the drive’s continuous power rating. Increasing the carrier frequency alleviates acoustic noise but may derate the controller in some applications.

Frequently Asked Questions about 1SU44005

How big is 1SU44005?
1SU44005 is 11.88 inches tall at its' highest height. 1SU44005 is 8.75 inches wide as its' largest width. 1SU44005 is 6.30 inches in depth. For more dimensions of a Reliance 1SU44005, look at figure 3.2 in the manual. The figure in the manual is a diagram with all 1SU44005 dimensions.
If 1SU44005 is surrounded by other drives, are there any measures I should consider?
When the top and bottom of 1SU44005 are adjacent to other drives, there should be a 10 inch clearance. The sides of 1SU44005 if next to another drive should be at least 4 inches away.
What size wires does 1SU44005 use?
All wires used for powering wiring a Reliance 1SU44005 should be a max of 14 AWG. 1SU44005 has input and output wiring, 1SU44005 has DC bus wiring, and 1SU44005 has snubber resistor and ground wiring.

Reviews For 1SU44005

Internal Review
(4.0)

While the 1SU44005 SP500 drive by Reliance Electric is a widely installed AC drive model and requires only a quick installation procedure, it has shown itself to have a relatively high failure rate. Additionally, the protective cover is made of a fragile plastic housing that regularly cracks and breaks around the edges. Overall, the Reliance Electric 1SU44005 is only a 4 Star product. - AX Control Lead Technician
