1SU41015

    Varying star amount pictures Varying star amount pictures Varying star amount pictures Varying star amount pictures Varying star amount pictures
  • 4.60 (5)
  • Click a star to rate this product
    Varying star amount pictures Varying star amount pictures Varying star amount pictures Varying star amount pictures Varying star amount pictures
  • 4.60 (5)
  • Click a star to rate this product

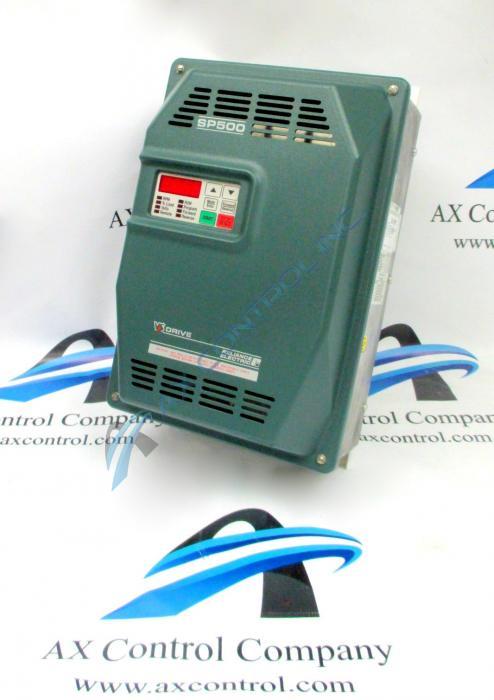

Reliance SP500 15HP 25.4AMP 460VAC NEMA 1 Drive.

AVAILABILITY:

IN STOCK
SHIPS IN 3-5 DAYS

Contact: 1-919-372-8413 (Intl.), 1-800-991-7026 (US), sales@axcontrol.com

Warranty: Learn More

Sell Surplus: Have a 1SU41015 to sell? Sell Now

Exchange Credit: Learn more about our exchange credit program

1SU41015

    Varying star amount pictures Varying star amount pictures Varying star amount pictures Varying star amount pictures Varying star amount pictures
  • 4.60 (5)
  • Click a star to rate this product
    Varying star amount pictures Varying star amount pictures Varying star amount pictures Varying star amount pictures Varying star amount pictures
  • 4.60 (5)
  • Click a star to rate this product
Reliance SP500 15HP 25.4AMP 460VAC NEMA 1 Drive.

AVAILABILITY:

IN STOCK
SHIPS IN 3-5 DAYS

Contact: 1-919-372-8413 (Intl.), 1-800-991-7026 (US), sales@axcontrol.com

Warranty: Learn More

Sell Surplus: Have a 1SU41015 to sell? Sell Now

Exchange Credit: Learn more about our exchange credit program

1SU41015 Technical Specifications

Enclosure NEMA 1 or Chassis
HP 15 HP
Hz 50/60Hz
Input Voltage 380-460 VAC
Labeling UL Listed, IEC Certified
Manufacturer Reliance Electric
Part Number 1SU41015
Series SP500

Product Description

Reliance Electric manufactures 1SU41015 as part of the SP500 drive series. The horsepower rating is 15 HP. There are four possible fatal faults on the drive. The first is the encoder power-up diagnostic error, which is caused by encoder voltage that is less than 10V (F3 code). To correct this fault, turn the drive off, disconnect the encoder wiring from the terminal strip, and turn the drive back on. If the F3 error does not occur again, the problem is in the wiring between the drive and the encoder. If the F3 error does occur again, the regulator board must be replaced. Another fatal fault is the option port identification error, which is caused by the regulator not identifying the option board (F60 Code). To correct this fault, check the ribbon cable between the regulator board and the option board, and check the option board’s jumper settings.

Another fatal fault is the option board power-up diagnostic failure, which is caused by an option board that has failed one or more power-up diagnostics (F61). To correct this fault, check the ribbon cable between the Regulator board and the option board. If necessary, replace the option board. The last fatal fault is the option board runtime error (F62 or F26). If this fault occurs, the option board watchdog failed or handshaking with the drive failed. If the fault is intermittent, check for causes of noise, for proper grounding, and that outputs are not exceeding rated current capacities. If necessary, replace the option board.

Frequently Asked Questions about 1SU41015

What are the clearance restrictions on a Reliance SP500 1SU41015?
The minimum distance from both the sides and the top and bottom of the 1SU41015 should be 102mm or 4 inches. This is when 1SU41015 is adjacent to non-heat producing equipment, and when 1SU41015 is adjacent to other drives.
What terminals are for AC input power on 1SU41015?
On 1SU41015, the terminals that match up with AC input power on the 1SU41015 are R/L1, S/L2, and T/L3. The size of the wire connecting the AC input power to the terminals on 1SU41015 should be 12 AWG.
Where can I find a manual for 1SU41015?
We can send you a link to the manual that goes with 1SU41015. The manual for 1SU41015 is the SP500 Installation and Operation Manual - Manual D2-3356. The manual breaks down 1SU41015 and the manual will help with troubleshooting a 1SU41015.
