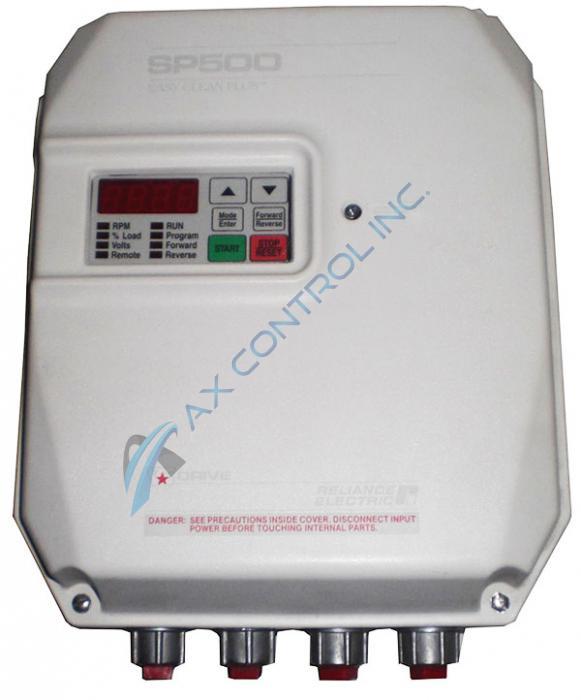

Reliance SP500 AC 5 HP Drive NEMA 4.

AVAILABILITY:

IN STOCK
SHIPS IN 3-5 DAYS

Sell Surplus: Have a 1SU24005 to sell? Sell Now
Exchange Credit: Learn more about our exchange credit program
  • Part Number: 1SU24005
  • SKU: 1SU24005RE
  • Manufacturer: Reliance Electric
  • Series: SP500 AC Drives

1SU24005 Technical Specifications

Manufacturer Reliance Electric
Series SP500
Part Number 1SU24005
HP 5 HP
Input Voltage 200-230 VAC
Enclosure NEMA 4X (Indoor Only)/NEMA 12
Hz 50/60Hz
Labeling UL Listed, IEC Certified

About the 1SU24005

1SU24005 is an SP500 Reliance Electric drive that can either be a 4 KHz, 6 KHz, or 8KHz carrier. A 4KHz carrier has an output of 14.2 amps, an input if 17.2 amps, and an input of 6.9 KVA. A 6KHz carrier has an output of 12.8 amps, an input if 15.5 amps, and an input of 6.2 KVA. A 8KHz carrier has an output of 11.4 amps, an input if 13.8 amps, and an input of 5.5 KVA.

There are 18 functions on the drive that can be accessed from the controller display. Remote enable, acceleration and deceleration rates, minimum maximum speed, current limit, manual torque boost, volts/hertz base speed, RPM at base speed, IET output enable, carrier frequency, remote reference gain, remote reference offset, remote reference display enable, electronic thermal overload, electronic thermal overload enable, coast stop enable, reverse disable, and software version. An error log is included on the controller display. To change the value of a function, first power up the drive, then press the MODE/ENTER key and select the PROGRAM mode. Find the desired function number by moving the up and down arrow keys and press the MODE/ENTER key again. Press the up/down arrow keys to change the value, and then lock in the entered value by pressing the MODE/ENTER key again. If the user wants to change the value of another function, repeat this process until all desired functions are changed.

Frequently Asked Questions about 1SU24005

What are the input and output amps on 1SU24005?
1SU24005 has 17.2 input amps and 1SU24005 has 14.2 output amps.
What are the power loss watts on a Reliance 1SU24005?
1SU24005 has 250 power loss watts.
What does the enclosure rating on 1SU24005 mean?
The 4X/12 enclosure on 1SU24005 means that the 1SU24005 is not vented. 1SU24005 is supplied with base and keypad gaskets and 1SU24005 is meant to be used indoors.
