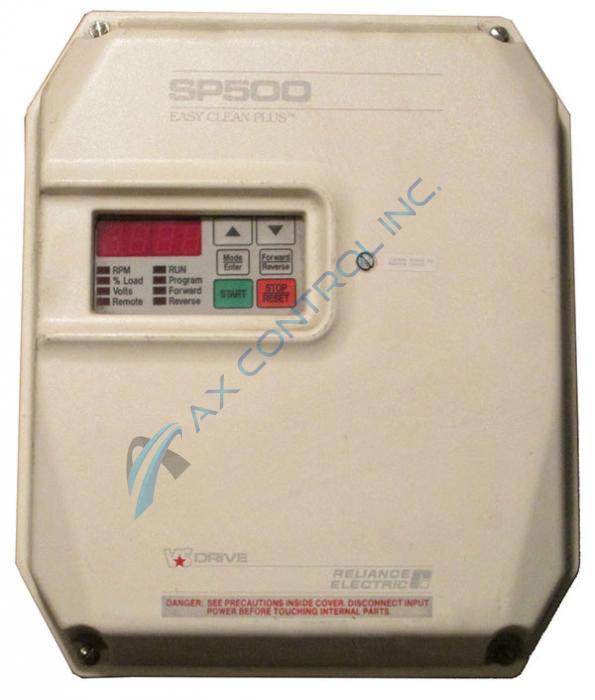

Reliance SP500 2 HP NEMA 4 Drive.

AVAILABILITY:

IN STOCK
SHIPS TODAY

Contact: 1-919-372-8413 (Intl.), 1-800-991-7026 (US), sales@axcontrol.com

Warranty: Learn More

Sell Surplus: Have a 1SU24002 to sell? Sell Now

Exchange Credit: Learn more about our exchange credit program

1SU24002

    Varying star amount pictures Varying star amount pictures Varying star amount pictures Varying star amount pictures Varying star amount pictures
  • 4.60 (5)
  • Click a star to rate this product
    Varying star amount pictures Varying star amount pictures Varying star amount pictures Varying star amount pictures Varying star amount pictures
  • 4.60 (5)
  • Click a star to rate this product
Reliance SP500 2 HP NEMA 4 Drive.

AVAILABILITY:

IN STOCK
SHIPS TODAY

Contact: 1-919-372-8413 (Intl.), 1-800-991-7026 (US), sales@axcontrol.com

Warranty: Learn More

Sell Surplus: Have a 1SU24002 to sell? Sell Now

Exchange Credit: Learn more about our exchange credit program

1SU24002 Technical Specifications

Enclosure NEMA 4X (Indoor Only)/NEMA 12
HP 2 HP
Hz 50/60Hz
Input Voltage 200-230 VAC
Labeling UL Listed, IEC Certified
Manufacturer Reliance Electric
Part Number 1SU24002
Series SP500

Product Description

1SU24002 is an SP500 Reliance Electric drive that can either be a 4 KHz, 6 KHz, or 8KHz carrier. A 4KHz carrier has an output of 7.5 amps, an input if 9.9 amps, and an input of 4.0 KVA. A 6KHz carrier has an output of 7.0 amps, an input if 9.3 amps, and an input of 3.8 KVA. A 8KHz carrier has an output of 6.5 amps, an input if 8.7 amps, and an input of 3.5 KVA.

Use twisted pair wire for all signal wiring. Use a minimum of #22 AWG wire for wiring of distances of up to 1000 feet. The tightening torque for terminals 1 through 16 on the regulator terminal strop must be 7 in-lbs maximum. Route all signal wiring through the knockout opening at the top left of the controller. Remove the factory-installed jumper at terminal 10 to install a normally closed, maintained emergency stop button. Route external control wiring (remote station) through the top right opening.

The drive has a four-character display that indicates either a function number, the value of the function or fault codes. There are eight indicator lights on the keypad: RPM, %Load, Volts, Remote, RUN, Program, Forward, and Reverse. There are six buttons on the keypad: an up arrow, a down arrow, a mode/enter key, a forward/reverse key, a start key, a stop/reset key. When power is applied to the controller, the display will show “SELF.” During this display period, the microprocessor will perform a diagnostic routine.

Frequently Asked Questions about 1SU24002

What phase is a SP500 1SU24002?
The 1SU24002 is a 3 phase drive.
What does the 4X/12 NEMA rating on the 1SU24002 indicate?
The NEMA 4X/12 rating on the 1SU24002 indicates that the 1SU24002 is a SP500 drive that is not vented. It tells you that the 1SU24002 is for use in indoor environments that require a water-tight and dust-tight enclosure. The NEMA 4X/12 rating on a 1SU24002 also indicates that the 1SU24002 is suppled with base and keypad gaskets.
What are the input amps and input KVA on a 1SU24002?
The SP500 1SU24002 drive has 9.9 input amps and 4.0 input KVA.
How far away does a 1SU24002 drive need to be if adjacent to another drive?
Because the SP500 1SU24002 has a "C" enclosure size, the minimum distance from the sides of the 1SU24002 drive if adjacent to other drives is 102mm or 4 inches.
What does the F-01 parameter indicate on a 1SU24002?
The F-01 parameter on a 1SU24002 is the Acceleration Time parameter. This parameter identifies the amount of time it takes the motor of the 1SU24002 to ramp from stop to the maximum speed setting in the F-04 (Maximum Speed parameter).
What is the cause of a HU fault code error on a 1SU24002?
The HU fault code on a 1SU24002 indicates high bus voltage. This fault could be caused because of a high deceleration rate setting in the F-02 parameter. This fault could be caused because the 1SU24002 was started into a forward-running load with too high of a speed, or this fault could be caused from a high input line on the 1SU24002.
