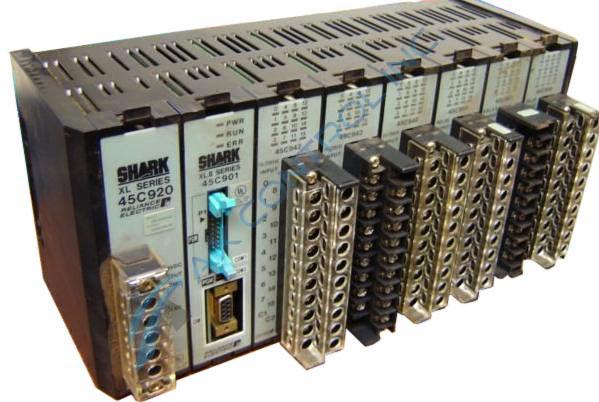

Reliance Electric 45C958 Shark XL 24 VDC 8-Point Transistor Input Module

AVAILABILITY:

IN STOCK
SHIPS IN 3-5 DAYS

Sell Surplus: Have a 45C958 to sell? Sell Now
Exchange Credit: Learn more about our exchange credit program
  • Part Number: 45C958
  • SKU: 45C958RE
  • Manufacturer: Reliance Electric
  • Series: Shark XL

45C958 Technical Specifications

Manufacturer Reliance Electric
Series Shark XL
Part Number 45C958
Input Voltage 24 VDC

About the 45C958

The 45C958 module was made by Reliance Electric to be a 24 VDC Input/Output module for the Shark XL series of rack-centered programmable controllers. This product is no longer being produced by the original manufacturer, since the Shark XL series is now deemed a legacy series, but the 45C958 24 VDC I/O module can still usually be purchased from AX Control.

The 45C958 24 VDC I/O module has eight total inputs and eight total outputs. The input section of the 45C958 24 VDC I/O module has a voltage range of between 21.6 VDC and 26 VDC. The output section of the 45C958 24 VDC I/O module has a voltage range of between 5 and 27 VDC. There are two common terminals, one for the eight input points and one for the eight output points.

For the device as a whole, the input current sinking is 9 mA. The input resistance when ON will be 300 Ohms or less and the input resistance when OFF will be 200 kiloOhms or more. The highest possible inrush current for this device is 3 A for every 20 milliseconds and the highest possible leakage current is 0.1 mA. As for the highest possible load current sourcing: one circuit equals 0.5 A, four circuits equals 1.25 A, and eight circuits equals 2.5 A. Lastly, the device is extremely quick, with the maximum output delay time for both ON to OFF and OFF to ON being only 1 millisecond.

Frequently Asked Questions about 45C958

What type of module is the 45C958?
The 45C958 is an 8-channel 24 VDC input/output module. The 45C958 is one of two available input/output modules.
Which terminals are used for input and which are used for output on a 45C958?
Terminals 0-7 on the 45C958 are used for the input devices with terminal C1 as the common and terminals 8-15 on the 45C958 are used for the output devices with terminal C2 as the common on the 45C958.
Where can I find the manual for the 45C958?
The 45C958 is included in the Shark XL Series manual which discusses each device in detail. Please contact AX Control if you need the manual or you can find it online by searching the manual number J-3809-2.
