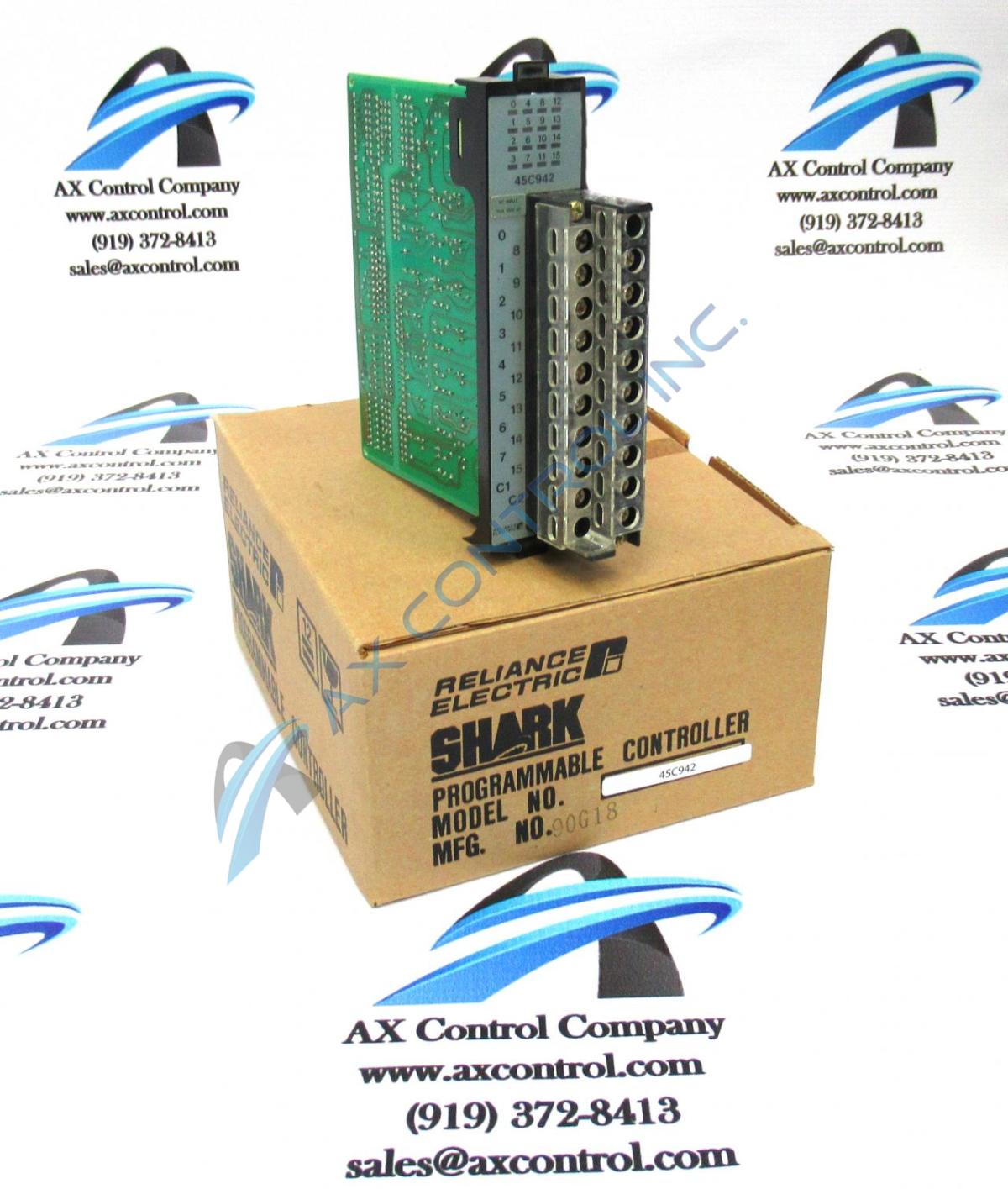

Reliance Electric 45C942 115/230 VAC Shark XL Input Module

AVAILABILITY:

IN STOCK
SHIPS TODAY

Contact: 1-919-372-8413 (Intl.), 1-800-991-7026 (US), sales@axcontrol.com

3 Year Warranty: Learn More

Sell Surplus: Have a 45C942 to sell? Sell Now

Exchange Credit: Learn more about our exchange credit program

45C942

    Varying star amount pictures Varying star amount pictures Varying star amount pictures Varying star amount pictures Varying star amount pictures
  • 5.00 (3)
  • Click a star to rate this product
    Varying star amount pictures Varying star amount pictures Varying star amount pictures Varying star amount pictures Varying star amount pictures
  • 5.00 (3)
  • Click a star to rate this product
Reliance Electric 45C942 115/230 VAC Shark XL Input Module

AVAILABILITY:

IN STOCK
SHIPS TODAY

Contact: 1-919-372-8413 (Intl.), 1-800-991-7026 (US), sales@axcontrol.com

3 Year Warranty: Learn More

Sell Surplus: Have a 45C942 to sell? Sell Now

Exchange Credit: Learn more about our exchange credit program

45C942 Technical Specifications

Input Voltage 115/230 VAC
Manufacturer Reliance Electric
Part Number 45C942
Series Shark XL

Product Description

The 45C942 unit is a 115 VAC input module which was distributed by Reliance Electric for the Shark XL series of programmable controllers and related modules. If you are in need of the 45C942 input module, then AX Control is the place for you, since we typically have this product in our inventory. You can check our inventory thanks to the way our site is designed by looking on any specific product’s page on our site.

The 45C942 input module is related to two other Shark XL input modules, although there are some key differences between the three. There is the 45C940 input module and the 45C941 input module. To learn more about these products and how they are all different, click on the links to visit their pages on our site.

The 45C942 input module has a total of 16 channels. Unlike the other Shark XL input modules, the 45C942 input module has its own removable terminal block that can be regularly used. Similar to the other input modules, though, the 45C942 input module has a nominal voltage of either 115 VAC or 230 VAC depending on the operation at hand. The input current is 7 mA and the input voltage can land somewhere in the range of 85 and 264 VAC. The 45C942 input module has three total channels. Channels 2 and 3 have an average current consumption rating of 0 mA while Channel 1 has a rating of 1 mA. This product uses the opto-isolator isolation method and is UL listed.

Frequently Asked Questions about 45C942

What is a Reliance 45C942?
The 45C942 is a 16 channel digital input module in the Shark XL Series. The 45C942 is one of six different digital input modules.
How do you know when an input device is on when connected to the terminal on a 45C942?
A status LED will be lit on the 45C942 to indicate whatever input device connected to the corresponding terminal on the 45C942 is on.
Can AX Control repair my 45C942?
AX Control technicians are able to repair your 45C942 along with other devices within the Shark XL Series. If your devices needs repaired please contact AX Control.
Is the 45C942 equipped with a terminal block?
Yes, the 45C942 comes equipped with a removable terminal block. There are only two digital input modules within the Shark XL series that has a removable terminal block.
