Stack for Reliance Electric Assembly

AVAILABILITY:

CALL FOR AVAILABILITY

Sell Surplus: Have a 86475-115 to sell? Sell Now
Exchange Credit: Learn more about our exchange credit program
  • Part Number: 86475-115
  • SKU: 86475115RE
  • Manufacturer: Reliance Electric
  • Series: Rectifiers & Misc.

About the 86475-115

86475-115 Reliance Rectifier Stack 460 VAC

The 86475-115 is a Reliance component used in company drive systems as a renewal part.  This component was occasionally sold under other company names such as Baldor-Reliance and ABB/Asea Brown Boveri.

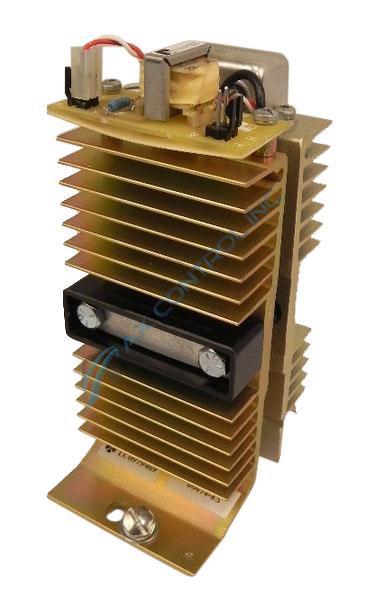

The 86475-115 is a 460 VAC rectifier stack.  Rectifier stacks are designed for use in power applications to convert or ‘straighten’ alternating current (AC) into single direction direct current (DC.)  This component is created by two large heat sinks connected to each other using bolted connections that leave an air gap between them.  In this air gap, the unit has metal oxide varistors (MOVs) and SCR diodes mounted to the interior walls of the heat sinks.  These components connect to other module components located at the apex of the heat sink stacks, like a small gating circuit board and a high voltage capacitor, using wired connectors.

Additional information with respect to the 86475-115 can be found through Reliance publications like user guides or manuals.  These publications will provide detailed information regarding proper handling, installation, and safety procedures.

AX Control ships products every weekday from our North Carolina facility.  In-stock products can ship in just a few hours.  Let us know what we can send to you today.


Repair Services For 86475-115

Type Lead Time Price Action
Repair Service 1-2 weeks $477

Our highly skilled technicians can repair your 86475-115. All of our repairs come with a 3 Year AX Control Warranty. Please contact us for additional information about our repair process. To receive the repair pricing and lead time listed above please process your repair order via our website. The following repair options may be available upon request:

  • 48-72hr Rush Repair
  • Detailed Repair Reports
  • AX Control Certificate of Warranty

AX Control Warranty Info

All products we sell are backed by our unparalleled warranty. A warranty certificate will be provided with your order upon request.
All PLCs, HMIs, and Turbine Control Boards: 3 Years
All AC/DC and Servo Drives: 2 Years
All Motors: 1 Year
