Rectifier Stack

AVAILABILITY:

IN STOCK
SHIPS TODAY

Contact: 1-919-372-8413 (Intl.), 1-800-991-7026 (US), sales@axcontrol.com

Warranty: Learn More

Sell Surplus: Have a 86474-1R to sell? Sell Now

Exchange Credit: Learn more about our exchange credit program

86474-1R

    Varying star amount pictures Varying star amount pictures Varying star amount pictures Varying star amount pictures Varying star amount pictures
  • 5.00 (3)
  • Click a star to rate this product
    Varying star amount pictures Varying star amount pictures Varying star amount pictures Varying star amount pictures Varying star amount pictures
  • 5.00 (3)
  • Click a star to rate this product
Rectifier Stack

AVAILABILITY:

IN STOCK
SHIPS TODAY

Contact: 1-919-372-8413 (Intl.), 1-800-991-7026 (US), sales@axcontrol.com

Warranty: Learn More

Sell Surplus: Have a 86474-1R to sell? Sell Now

Exchange Credit: Learn more about our exchange credit program

Product Description

The 86474-1R is a Reliance Electric created Rectifier Stack Assembly. ASEA BROWN BOVERI and Baldor Reliance may have also sold this stack depending on what year it was manufactured.

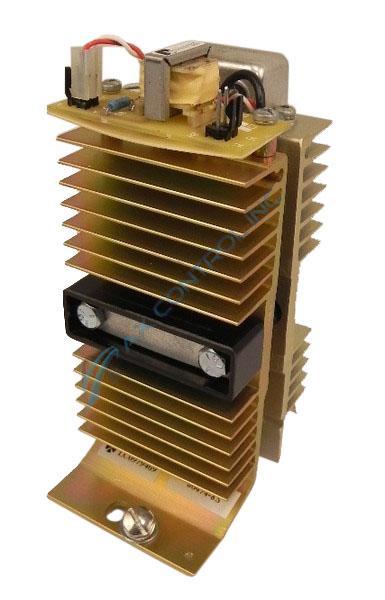

The 86474-1R is a rectifier stack used in a Full Wave Bridge Configuration for a Reliance Electric Armature Rectifier Assembly. An armature rectifier assembly uses three rectifier modules, which have two thyristors each, to fully control the wave bridge. The main purpose of this setup is to convert AC currents to DC currents because DC current is much easier to control. Each rectifier stack is connected to a heat sink module or a phase rectifier module. The phase rectifier module holds two thyristors, a varistor and has a gate coupling card attached to it. The thyristors are disc-shaped. These rectifier modules have the ability to be swapped because they are interchangeable.

To learn more about the installation of the 86474-1R and how it fits into a Phase Rectifier Module, please refer to the original user’s manual produced by Reliance Electric. Ax Control is willing to help provide you with a spare manual if you have lost or misplaced your original manual. Please let our representative know you need a new one and they will try to locate you a new one if possible.

For a price or repair quote for the 86474-1R please contact AX Control directly by email or phone call. We are here to help your system repairs run as smoothly as possible. Please let us know if you have any questions about the compatibility for this rectifier stack with the system you are running. One of our expert staff members is here to help you.

  • 0-86474-1R
  • O-86474-1R

Repair Services For 86474-1R

Type Lead Time Price Action
Repair Service 1-2 weeks $744

Our highly skilled technicians can repair your 86474-1R. All of our repairs come with a 3 Year AX Control Warranty. Please contact us for additional information about our repair process. To receive the repair pricing and lead time listed above please process your repair order via our website. The following repair options may be available upon request:

  • 48-72hr Rush Repair
  • Detailed Repair Reports
  • AX Control Certificate of Warranty

AX Control Warranty Info

All products we sell are backed by our unparalleled warranty. A warranty certificate will be provided with your order upon request.
All PLCs, HMIs, and Turbine Control Boards: 3 Years
All AC/DC and Servo Drives: 2 Years
All Motors: 1 Year
Learn More
