Reliance Electric Assembly

AVAILABILITY:

IN STOCK
SHIPS IN 3-5 DAYS

Sell Surplus: Have a 86471-S to sell? Sell Now
Exchange Credit: Learn more about our exchange credit program
  • Part Number: 86471-S
  • SKU: 86471SRE
  • Manufacturer: Reliance Electric
  • Series: Rectifiers & Misc.

About the 86471-S

The 86471-S module is a rectifier stack that Reliance Electric, which is now known as Rockwell Automation, designed and produced. The 86471-S rectifier stack has, however, been discontinued by the original manufacturer. Despite its discontinuation, the 86471-S rectifier stack is possibly available at AX Control as either a refurbished product by our dedicated staff or as a brand new product from excess surplus stock. If you are in need of the 86471-S rectifier stack, look no further than AX Control. Our sales representatives will help you determine if this product is right for your facility, so be sure to either call or email us to speak to one and to get your desired product quickly and safely.

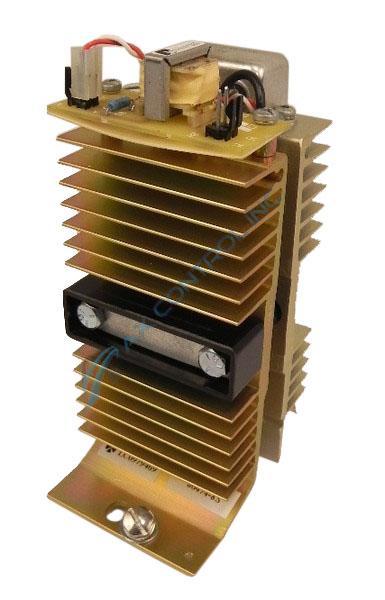

The 86471-S rectifier stack is designed to convert AC energy to DC energy so that the applicable controller it is connected to can use this energy and that it is manageable. The 86471-S rectifier stack has four capacitors and four diodes on the flat piece of metal on the bottom of the rectifier stack, with two of each on opposite sides. There are numerous wires attached to the 86471-S rectifier stack that are used to connect it to the rest of the controller module.

The 86471-S rectifier stack is specifically meant to be used in conjunction with Reliance Electric’s medium voltage controller modules. These medium voltage controller modules are available for system voltage ratings ranging from 2400 Volts to 6900 Volts and can be applied to motors that range in sizes from 75 kW to 7500 kW (10 HP to 10,000 HP).

Repair Services For 86471-S

Type Lead Time Price Action
Repair Service 1-2 weeks $545

Our highly skilled technicians can repair your 86471-S. All of our repairs come with a 3 Year AX Control Warranty. Please contact us for additional information about our repair process. To receive the repair pricing and lead time listed above please process your repair order via our website. The following repair options may be available upon request:

  • 48-72hr Rush Repair
  • Detailed Repair Reports
  • AX Control Certificate of Warranty
