Rectifier Stack

AVAILABILITY:

IN STOCK
SHIPS IN 3-5 DAYS

Sell Surplus: Have a 864660-60S to sell? Sell Now
Exchange Credit: Learn more about our exchange credit program
  • Part Number: 864660-60S
  • SKU: 86466060SRE
  • Manufacturer: Reliance Electric
  • Series: Rectifiers & Misc.

About the 864660-60S

864660-60S Rectifier Stack

The 864660-60S is a double rectifier stack manufactured by Reliance Electric.  This component is used within Reliance drive systems.  It is sometimes sold under the manufacturing name of Baldor-Reliance or Asea Brown Boveri.

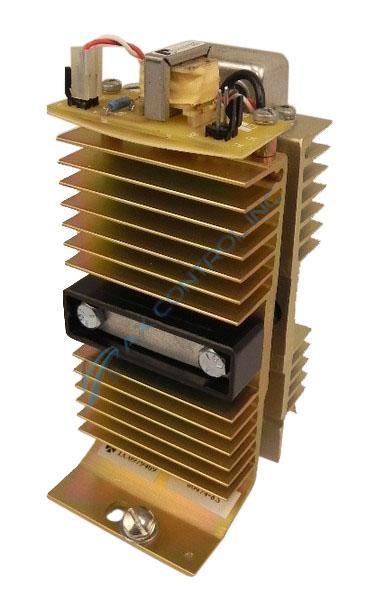

The 864660-60S is composed of two sets of dual heat sinks connected to a central metal carrier via bolts.  The central carrier also has two SCR diodes mounted to it behind the heat sink fins.  A braided red and white wire extends from each of these components to two of the 0-51378-19 circuit boards mounted on top of the heat sink stacks.  There are four of these small board components in all.  Each board has resistors, diodes, four terminal pins, and a single transformer.  Each circuit board screw mounts to the stack.

There are several more components mounted within the base of the 864660-60S, including two gold wire-wound resistors.  Multiple wires with various types of endings are used within the body of this component.   It is important to note the Rectifier stack needs proper air clearance to work properly.

For more information, please consult technical support publications like user guides, data sheets, and manuals originally provided by Reliance Electric.

Repair Services For 864660-60S

Type Lead Time Price Action
Repair Service 1-2 weeks $777

Our highly skilled technicians can repair your 864660-60S. All of our repairs come with a 3 Year AX Control Warranty. Please contact us for additional information about our repair process. To receive the repair pricing and lead time listed above please process your repair order via our website. The following repair options may be available upon request:
