Rectifier Stack

AVAILABILITY:

IN STOCK
SHIPS IN 3-5 DAYS

Sell Surplus: Have a 864660-58S to sell? Sell Now
Exchange Credit: Learn more about our exchange credit program
  • Part Number: 864660-58S
  • SKU: 86466058SRE
  • Manufacturer: Reliance Electric
  • Series: Rectifiers & Misc.

Product Description

864660-58S Rectifier Stack

The 864660-58S is a Reliance component manufactured by the company for use within various drive systems.  This rectifier stack was also sold under the manufacturing names of  Baldor-Reliance and ABB.  It is typically available from AX Control as new-used stock and as a reconditioned part that has been inspected and thoroughly refurbished by our in-house AX Control technicians.

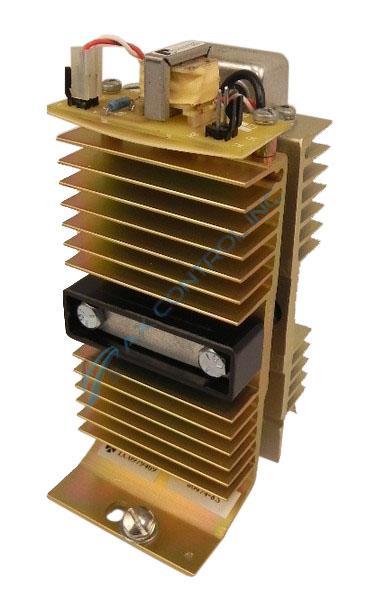

The 864660-58S  is built on a flat hollow base that has several components mounted to its inside surfaces.  Components inside the base include a large polyester vinyl capacitor, dale power resistors, and metal oxide varistors.  These connect to other components located elsewhere in the rectifier using surface wired connections.   Above the base, two heat sink components are mounted and connected to a central metal carrier.  Each heat sink is topped by a small circuit board (0-51378-25)  that includes a transformer, terminal pins, diodes, and resistors.  Wires attach to the terminal pins from further down in the component.

For more detailed information about the operation or use of the 864660-58S, please refer to technical support products provided to end users by Reliance with their OEM purchase.  Product manuals, data sheets, and user guides will all have pertinent information.  Talk to your sales rep when you place your order about any lost or misplaced tech support publications.

The AX Control warehouse is located in central North Carolina, south of high-tech Research Triangle Park.  Our “in-stock” products from Eurotherm, Reliance, GE, Parker, and many other manufacturers can be to your US facility in less than 24 hours using expedited shipping options.  Ask our sales team to give you more information.

Repair Services For 864660-58S

Type Lead Time Price Action
Repair Service 1-2 weeks $694

Our highly skilled technicians can repair your 864660-58S. All of our repairs come with a 3 Year AX Control Warranty. Please contact us for additional information about our repair process. To receive the repair pricing and lead time listed above please process your repair order via our website. The following repair options may be available upon request:

  • 48-72hr Rush Repair
  • Detailed Repair Reports
  • AX Control Certificate of Warranty

AX Control Warranty Info

All products we sell are backed by our unparalleled warranty. A warranty certificate will be provided with your order upon request.
All PLCs, HMIs, and Turbine Control Boards: 3 Years
All AC/DC and Servo Drives: 2 Years
All Motors: 1 Year
