Assembly Rectifier Stack

AVAILABILITY:

IN STOCK
SHIPS IN 3-5 DAYS

Sell Surplus: Have a 86466-10S to sell? Sell Now
Exchange Credit: Learn more about our exchange credit program
  • Part Number: 86466-10S
  • SKU: 8646610SRE
  • Manufacturer: Reliance Electric
  • Series: Rectifiers & Misc.

About the 86466-10S

86466-10S Assembly Rectifier Stack

The 86466-10S is a component manufactured by Reliance Electric that is designed to be used in the company’s drive systems.  This rectifier stack was sometimes sold under the company names of ABB and Baldor-Reliance.

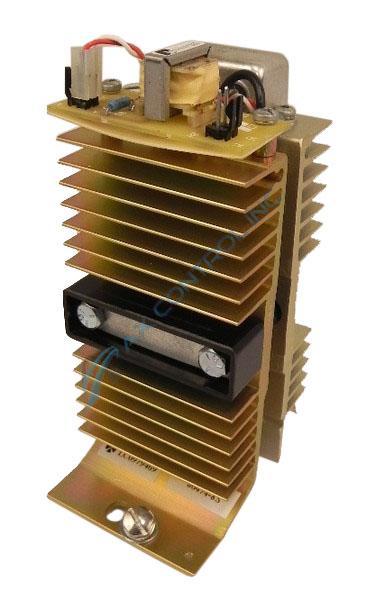

The 86466-10S is a large component (over 20 lbs) built on a flat horizontal carrier. Multiple standoffs are screw mounted to this carrier.  These standoffs connect to four heat sink components that are mounted back to back in the component, separated by circuit board components.  The center circuit board component extends down to the horizontal carrier.  There is an additional (smaller) circuit board horizontally mounted below the right-most heat sink just above the bottom carrier.   Components on these circuit boards are connected to each other and to components located elsewhere on the stacks via red and white braided wires or by black wires.  These wires use a number of different connector ends, including terminal loops and stab-on (female) connectors.  Additional components are mounted above the heat sink stacks, including two Ferraz Shawmut High-Speed Semiconductor fuses.

For additional information regarding the use or installation of the 86466-10S, please consult technical support productions originally provided by Reliance.  This includes data sheets and product manuals.


Repair Services For 86466-10S

Type Lead Time Price Action
Repair Service 1-2 weeks $497

Our highly skilled technicians can repair your 86466-10S. All of our repairs come with a 3 Year AX Control Warranty. Please contact us for additional information about our repair process. To receive the repair pricing and lead time listed above please process your repair order via our website. The following repair options may be available upon request:

  • 48-72hr Rush Repair
  • Detailed Repair Reports
  • AX Control Certificate of Warranty

AX Control Warranty Info

All products we sell are backed by our unparalleled warranty. A warranty certificate will be provided with your order upon request.
All PLCs, HMIs, and Turbine Control Boards: 3 Years
All AC/DC and Servo Drives: 2 Years
All Motors: 1 Year
Learn More

86466-10S Manuals, White Papers, Data Sheets, and Troubleshooting
