Stack Assembly

AVAILABILITY:

CALL FOR AVAILABILITY

Sell Surplus: Have a 85014-16R to sell? Sell Now
Exchange Credit: Learn more about our exchange credit program
  • Part Number: 85014-16R
  • SKU: 8501416RRE
  • Manufacturer: Reliance Electric
  • Series: Rectifiers & Misc.

About the 85014-16R

The 85014-16R is a rectifier assembly, otherwise known as a stack assembly.  This part was originally produced and marketed by Reliance Electric as part of their drive components.  Reliance components may have sold at different times under company names like Asea Brown Boveri or Baldor-Reliance.

The 85014-16R functions as a rectifier assembly.  Such units like this one were used in programmable logic controllers (PLCs) and other components to turn AC power supplies into DC power.

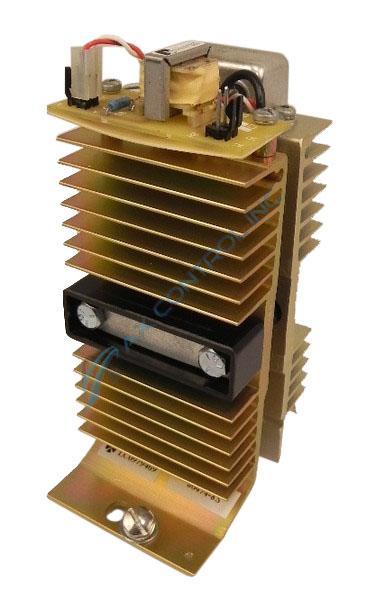

The 85014-16R has two separate heat sinks as its main framing.  These frames are designed with mounting holes on their bottom edges that will allow the unit to be easily mounted in place.  An SCR diode is mounted within these metal frames, separating them.  Wiring connects from these diodes to externally mounted circuit boards.  These boards are populated with only a few components that include things like capacitors and stab-on connectors for wiring to connect to.

More information about Reliance Electric or its stack assemblies can be found through original documentation from the company.   Original documentation would have been delivered with your OEM purchases.  However,  if your manuals, user guides, and datasheets have been lost or misplaced over time, AX Control may be able to help with replacements.  Let us know if you need this option when you place your order with us.

Our company works hard to maintain a fully stocked warehouse with readily available and ready-to-ship parts.  Most of our online inventory will ship the same day your order is placed.  Our team is happy to give you a firm shipping estimate with your quote.


  • 0-85014-16R
  • O-85014-16R

Repair Services For 85014-16R

Type Lead Time Price Action
Repair Service 1-2 weeks $718

Our highly skilled technicians can repair your 85014-16R. All of our repairs come with a 3 Year AX Control Warranty. Please contact us for additional information about our repair process. To receive the repair pricing and lead time listed above please process your repair order via our website. The following repair options may be available upon request:

  • 48-72hr Rush Repair
  • Detailed Repair Reports
  • AX Control Certificate of Warranty
