RELIANCE ELECTRIC BOARD

AVAILABILITY:

IN STOCK
SHIPS TODAY

Sell Surplus: Have a 845222-X to sell? Sell Now
Exchange Credit: Learn more about our exchange credit program
  • Part Number: 845222-X
  • SKU: 845222XRE
  • Manufacturer: Reliance Electric
  • Series: Rectifiers & Misc.

About the 845222-X

845222-X Reliance Electric Circuit Board

The 845222-X is a board component used in Reliance Electric drive systems. Reliance is the manufacturer of several different drives, including Automax, FlexPak, FlexPak Plus, and the GV 3000 drive series.  Components for these drives were sometimes sold under alternate company names like Baldor-Reliance and Asea Brown Boveri.

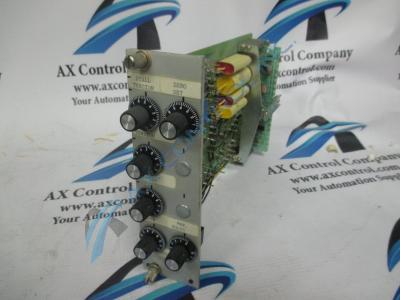

The 845222-X is a rectangular circuit board with a faceplate attached to its front edge and an auxiliary board carrier attached to its rear quarter.   The faceplate attaches using screw mounts.  It is populated by six rotary dials, four in one line and two in the other.  These are all individually labeled.  Each dial connects to a potentiometer located on the rear side of the panel.   The faceplate also has two set screws that allow technicians to lock the component in place within a rack system.  The panel is marked with the Reliance logo and with the board ID number.  The rear edge carries a vertical auxiliary board carrier made from two metal components with an attaching crossbar.   This supports a vertical auxiliary board that is connected to the board.  This board is populated with various components including resistors, capacitors, and diodes, and transistors.

The rest of the 845222-X  board is populated by several fields of terminal pins.  It has four large polyester vinyl capacitors located directly in front of the auxiliary board carrier.  The board uses several surface wires, as well as resistors and diodes.

For additional information, please consult Reliance publications like data sheets, user guides, and product manuals.  These will provide a step-by-step installation guide as well as handling procedures.


Repair Services For 845222-X

Type Lead Time Price Action
Repair Service 1-2 weeks $532

Our highly skilled technicians can repair your 845222-X. All of our repairs come with a 3 Year AX Control Warranty. Please contact us for additional information about our repair process. To receive the repair pricing and lead time listed above please process your repair order via our website. The following repair options may be available upon request:
