Heat Sink Assembly Thyristor

AVAILABILITY:

IN STOCK
SHIPS IN 3-5 DAYS

Sell Surplus: Have a 802275-3R to sell? Sell Now
Exchange Credit: Learn more about our exchange credit program
  • Part Number: 802275-3R
  • SKU: 8022753RRE
  • Manufacturer: Reliance Electric
  • Series: Rectifiers & Misc.

Product Description

802275-3R Reliance Heat Sink Assembly Thyristor

The 802275-3R is a Reliance Electric component designed for use in the company’s various drives and their auxiliary systems.  This component is available from AX Control as both new, never-used liquidated stock and as a reconditioned used part.  Reliance components were sold under the original company name but were also sometimes marketed under the names Baldor-Reliance or Asea Brown Boveri.

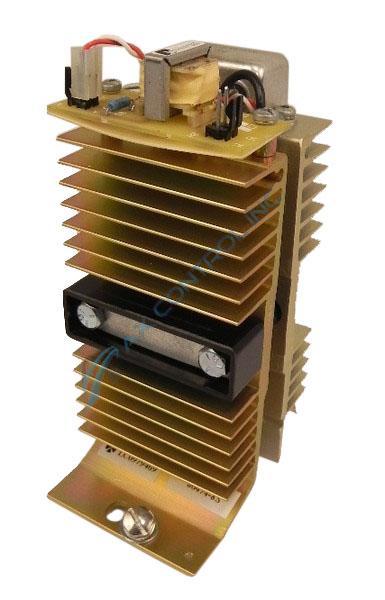

The 802275-3R functions as a Heat Sink Assembly Thyristor.  It may also be referred to as an Armature SCR assembly.   It is designed from five individual heat sinks that have been bolted together across a middle air gap in which other components have been mounted, such as SCR diodes and metal oxide varistors (MOVs.)    On one side of this component, there is a single, long heat sink.  On the other, there are four short heat sinks placed in parallel with each other, in two sets.  In each set, one heat sink has a bolt at its apex and the other heat sink has two wired connectors.   The entire unit is mounted to a small molded foot with a right-angled lower-facing flange.

User guides, manuals, and data sheets provided with your OEM purchase will provide more information about the 802275-3R.   If this component is currently marked as being “in stock-ships today,” or by 4 pm today for same-day shipping.

Repair Services For 802275-3R

Type Lead Time Price Action
Repair Service 1-2 weeks $459

Our highly skilled technicians can repair your 802275-3R. All of our repairs come with a 3 Year AX Control Warranty. Please contact us for additional information about our repair process. To receive the repair pricing and lead time listed above please process your repair order via our website. The following repair options may be available upon request:
