Product Description

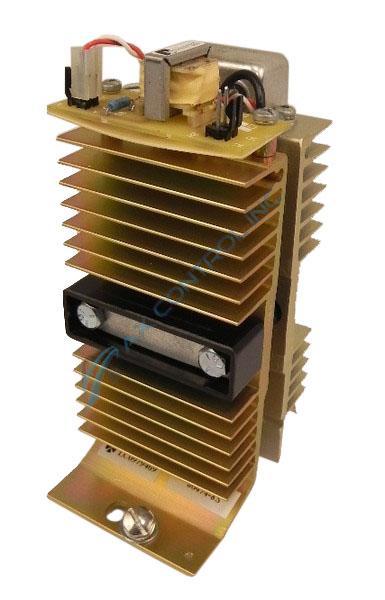

801525-S Diode Rectifier Assembly Stack
The 801525-S is a Reliance Electric component used as a part in Reliance drives or their auxiliary systems. This component is available from AX Control as a never used surplus part and as a reconditioned unit. The 801525-S was sold by Reliance under their company name, and also under the manufacturing names of ABB and Baldor Reliance.
The 801525-S is a Diode Rectifier Assembly. This component is built on a horizontal metal carrier with a single ninety-degree downward facing flange. This carrier is covered by a white overlayment. Components are mounted directly to this surface, including fourteen double-wing stud mounts. Female wire connectors are placed over many of these; the wires terminating at these points connect back to various points on the board/various components.
The 801525-S has a single line of six power resistors. A circuit board marked (0-54393) is screw mounted to the surface of the unit. This is populated by three transformers, three fuses, resistors, diodes, and multiple terminal pins and stab-on connectors. There are wire clips mounted to the surface of the main surface on either side of this circuit board. The 801525-S also has a vertically mounted board unit. This is populated by three inductor coils, MOVs, stab-on connectors, and other components. Three additional fuses are mounted on the rear surface of this component.
For more information, please refer to product manuals, data sheets, or user guides from Reliance. Reliance Electric was responsible for all technical support for this component.
