120VAC 600VDC 56 Amp Contactor

AVAILABILITY:

IN STOCK
SHIPS IN 3-5 DAYS

Warranty: Learn More
Sell Surplus: Have a 78091-R to sell? Sell Now
Exchange Credit: Learn more about our exchange credit program
  • Part Number: 78091-R
  • SKU: 78091RRE
  • Manufacturer: Reliance Electric
  • Series: Rectifiers & Misc.

78091-R

    Varying star amount pictures Varying star amount pictures Varying star amount pictures Varying star amount pictures Varying star amount pictures
  • 5.00 (3)
  • Click a star to rate this product
    Varying star amount pictures Varying star amount pictures Varying star amount pictures Varying star amount pictures Varying star amount pictures
  • 5.00 (3)
  • Click a star to rate this product
120VAC 600VDC 56 Amp Contactor

AVAILABILITY:

IN STOCK
SHIPS IN 3-5 DAYS

Warranty: Learn More
Sell Surplus: Have a 78091-R to sell? Sell Now
Exchange Credit: Learn more about our exchange credit program
  • Part Number: 78091-R
  • SKU: 78091RRE
  • Manufacturer: Reliance Electric
  • Series: Rectifiers & Misc.

Product Description

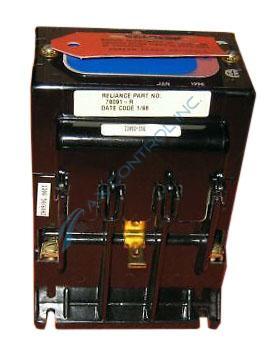

The 78091-R is a Motor Starter Contactor that was created and manufactured by Reliance Electric. Reliance Electric no longer supports this product with repairs or offers it new, but AX Control may have this product in stock. Please contact AX Control by phone or email to check on the availability of this product, such as if it is available refurbished or brand new from surplus stock, and to see if this product is compatible with your motor.

The 78091-R Motor Starter Contactor is compatible with Reliance Electric motors. The 78091-R module has ratings of 56 Amps, 600 VDC, and 100 to 200 VAC. Before you order this product, check the documentation of your Reliance Electric motor to ensure that the 78091-R module is compatible.

When installing the motor itself, there are numerous steps you must take to ensure that it will work properly and safely. Prior to installation, be sure to inspect all parts of the motor, including the starter contactor, the drive train that is connected, and the spindle motor. Along with this inspection, check that the furnished blower motor is connected and that the furnished filter is properly installed. If neither of these parts are furnished, then this step can be skipped. You will need to remove the motor covers and ensure that the brushes are able to move freely, without any hindrance, inside their holders, are secure, and are in contact with the communicator. Lastly, it is necessary to check that the connections, especially the connections that are made to armature and field conductors, are tight and properly insulated.

Repair Services For 78091-R

Type Lead Time Price Action
Repair Service 1-2 weeks $505

Our highly skilled technicians can repair your 78091-R. All of our repairs come with a 3 Year AX Control Warranty. Please contact us for additional information about our repair process. To receive the repair pricing and lead time listed above please process your repair order via our website. The following repair options may be available upon request:

  • 48-72hr Rush Repair
  • Detailed Repair Reports
  • AX Control Certificate of Warranty
