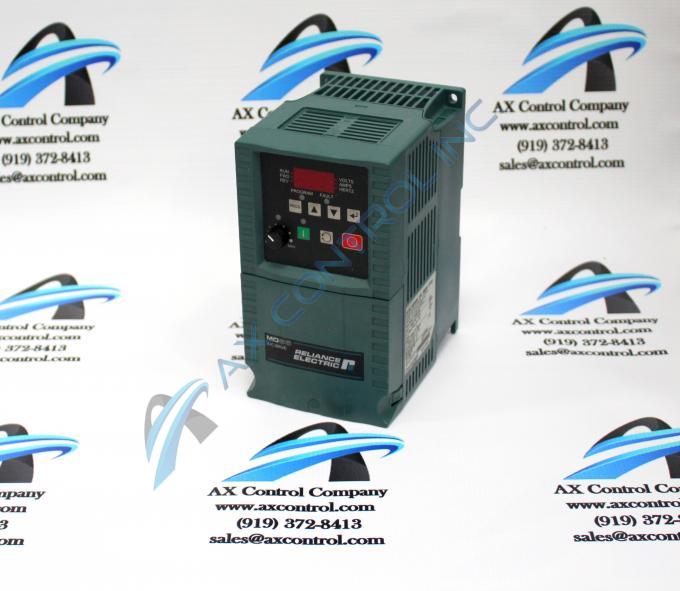

Reliance Electric 6MDVN-2P3102 120 VAC 0.4kW Phase 1 Servo MD-65 Drive

AVAILABILITY:

CALL FOR AVAILABILITY

Sell Surplus: Have a 6MDVN-2P3102 to sell? Sell Now
Exchange Credit: Learn more about our exchange credit program
  • Part Number: 6MDVN-2P3102
  • SKU: 6MDVN2P3102RE
  • Manufacturer: Reliance Electric
  • Series: MD65 Drives

6MDVN-2P3102 Technical Specifications

Manufacturer Reliance Electric
Series MD65
Part Number 6MDVN-2P3102
HP 0.5 HP
Input Voltage 120 VAC
Hz 50/60Hz
kW 0.4kW

Product Description

The 6MDVN-2P3102 unit is an AC drive that was designed by Reliance Electric for the MD65 family of drives. Reliance Electric is no longer producing the 6MDVN-2P3102 AC drive, but it can still usually be found in AX Control’s inventory. Check on the availability of this product using our website or by using our phone number or email address to contact us.

The 6MDVN-2P3102 AC drive is a 1 phase drive with a rating of 120 VAC. This drive does not come equipped with an internal filter. When operating at 115 V/230 VAC, the 6MDVN-2P3102 AC drive is rated as having 2.3 A and 0.5 HP. When operating at 460 VAC, the 6MDVN-2P3102 AC drive is rated as having 2.3 A and 1 HP. This particular drive cannot run at 600 VAC, although other AC drives in the MD65 line can, such as the 6MDEN-019012 and the 6MDEN-3P0102 modules. If you need an MD65 AC drive that can operate at 600 VAC, then be sure to click on the links above to read about the other two modules and look at purchasing options.

For both the 6MDVN-2P3102 AC drive’s fuses and circuit breaker, the branch circuit protection rating is 15. The IP20 Open Watts power dissipation rating is 30. The voltage range for this particular drive module is 90-132 V/ In addition to all of that, the 6MDVN-2P3102 AC drive has 1.15 kVA and 9.0 A.

Please be aware that none of the MD65 drives, including the 6MDVN-2P3102 AC drive, provide their own branch short circuit protection. Thus, the 6MDVN-2P3102 AC drive should be installed with either an input circuit breaker or input fuses.  Please check local codes.

AX Control ships internationally to any place not currently under US embargo.

Frequently Asked Questions about 6MDVN-2P3102

What type of operator interface unit comes with the 6MDVN-2P3102?
The 6MDVN-2P3102 comes equipped with a drive mounted operator interface module.
What is the output voltage of the 6MDVN-2P3102?
The 6MDVN-2P3102 has a input voltage of 120 VAC and a output voltage of 2.3A.
What type of display is the 6MDVN-2P3102 equipped with?
The 6MDVN-2P3102 comes equipped with a four-character LED digital display for user control on the outside of the drive.
Does AX Control sell the 6MDVN-2P3102 reconditioned?
Yes, AX Control has both reconditioned and new factory conditions of the 6MDVN-2P3102. Please contact us if you are interested in purchasing the 6MDVN-2P3102 reconditioned.

Repair Services For 6MDVN-2P3102

Type Lead Time Price Action
Repair Service 1-2 weeks $325

Our highly skilled technicians can repair your 6MDVN-2P3102. All of our repairs come with a 3 Year AX Control Warranty. Please contact us for additional information about our repair process. To receive the repair pricing and lead time listed above please process your repair order via our website. The following repair options may be available upon request:

  • 48-72hr Rush Repair
  • Detailed Repair Reports
  • AX Control Certificate of Warranty

AX Control Warranty Info

All products we sell are backed by our unparalleled warranty. A warranty certificate will be provided with your order upon request.
All PLCs, HMIs, and Turbine Control Boards: 3 Years
All AC/DC and Servo Drives: 2 Years
All Motors: 1 Year
Learn More

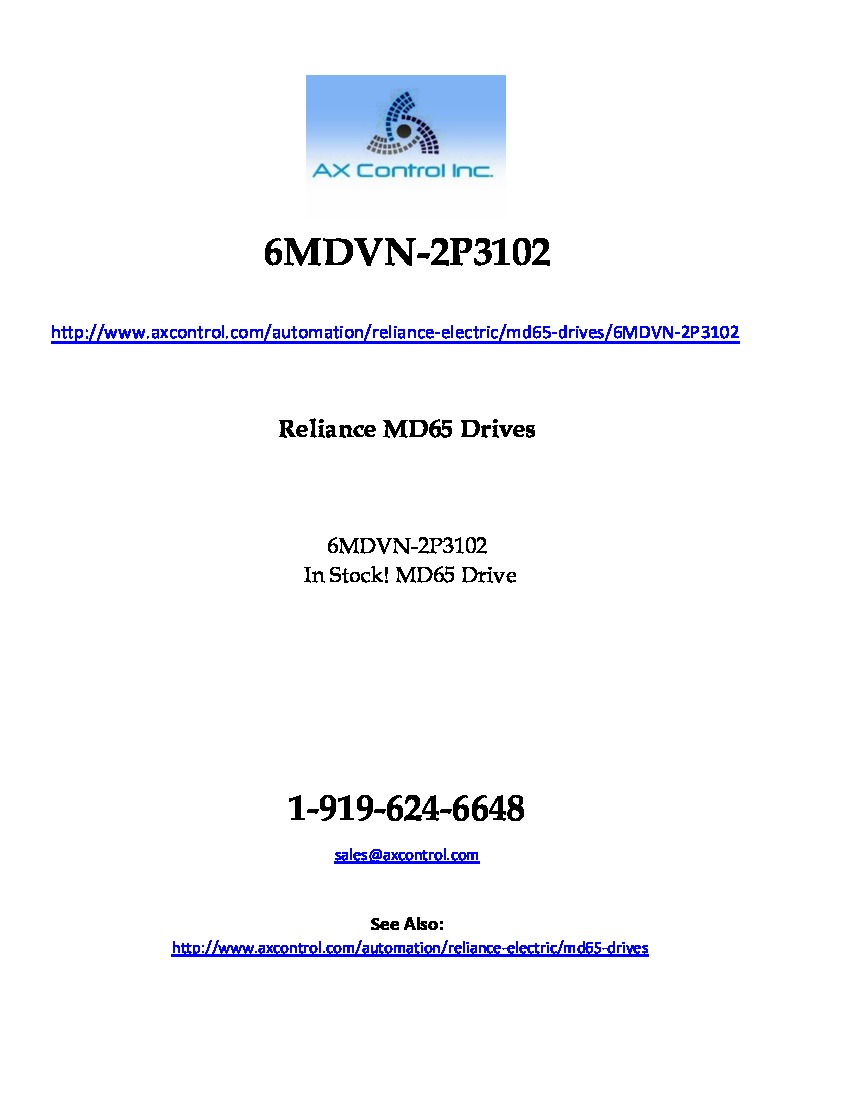

6MDVN-2P3102 Manuals, White Papers, Data Sheets, and Troubleshooting
