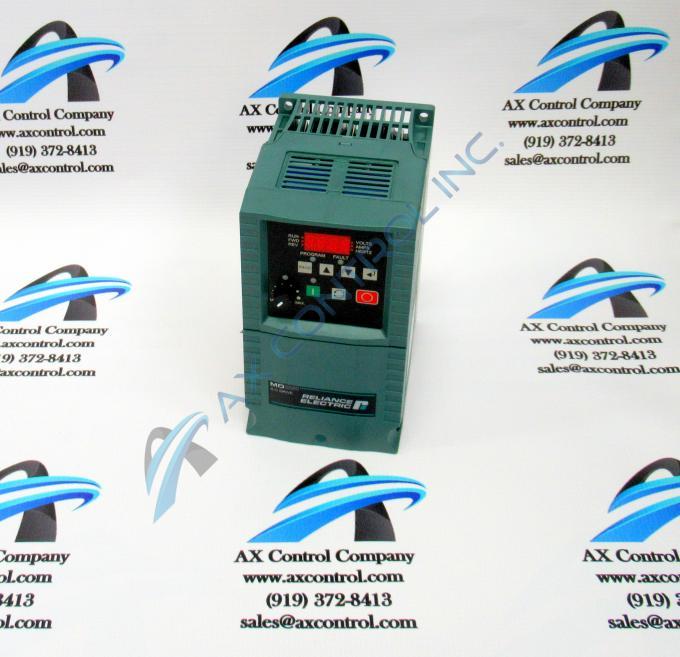

Reliance Electric 6MDDN-010102 5HP 480 VAC Brushless Servo MD-65 Motor Controller

AVAILABILITY:

CALL FOR AVAILABILITY

Contact: 1-919-372-8413 (Intl.), 1-800-991-7026 (US), sales@axcontrol.com

Warranty: Learn More

Sell Surplus: Have a 6MDDN-010102 to sell? Sell Now

Exchange Credit: Learn more about our exchange credit program

6MDDN-010102

    Varying star amount pictures Varying star amount pictures Varying star amount pictures Varying star amount pictures Varying star amount pictures
  • 5.00 (4)
  • Click a star to rate this product
    Varying star amount pictures Varying star amount pictures Varying star amount pictures Varying star amount pictures Varying star amount pictures
  • 5.00 (4)
  • Click a star to rate this product
Reliance Electric 6MDDN-010102 5HP 480 VAC Brushless Servo MD-65 Motor Controller

AVAILABILITY:

CALL FOR AVAILABILITY

Contact: 1-919-372-8413 (Intl.), 1-800-991-7026 (US), sales@axcontrol.com

Warranty: Learn More

Sell Surplus: Have a 6MDDN-010102 to sell? Sell Now

Exchange Credit: Learn more about our exchange credit program

6MDDN-010102 Technical Specifications

HP 5HP
Hz 50/60Hz
Input Voltage 480 VAC
kW 4.0kW
Manufacturer Reliance Electric
Part Number 6MDDN-010102
Series MD65

Product Description

6MDDN-010102 is a 380-480 VAC 3-phase input, 0-460 V 3-phase output MD65 drive that is manufactured by Reliance Electric. This drive outputs 4.0 kW (5.0 HP) and 10.5 amps. The input voltage range is 340-528, the input kVA is 10.3, and the input amps are 13.0. The branch circuit protection is 20 for the fuses and 25 for the circuit breaker. The power dissipation is 150 watts.

The drive has two total analog inputs. One analog input is 0-10 VDC, and the other one is 4-20 mA. There are two configurable opto-coupled digital outputs. The relay outputs are configurable one from C. The meter outputs are 0-10 VDC. The maximum load is 15 HP at 600 VAC. The overload capacity is the drive output at 150% for one minute or 200% for three seconds. The frequency accuracy for the digital keypad is ± 0.5% of the set output and ± 0.5% of the maximum output frequency. The input voltage tolerance is typically ± 10%. The rate input frequency is 50/60 Hz, and the range is 47-63 Hz. The carrier frequency is 2-16 KHz and 4 KHz is the default. The operating temperature is -10° to 50°C. The snubber for dynamic braking is a built-in transistor. External dynamic braking is provided by the resistor terminals or the DC bus for the snubber kit. DC braking is included on the drive. The volts/Hz has a custom V/Hz curve, a speed regulation that is ± 2% of the motor base speed, and the operating speed range is 40:1.

Frequently Asked Questions about 6MDDN-010102

Does the 6MDDN-010102 come equipped with programmable preset speeds?
Yes, the 6MDDN-010102 comes with eight programmable preset motor speeds.
Where can I find the 6MDDN-010102's manual?
The 6MDDN-010102 doe snot have a specific manual but the MD-65 Series contains specific information on the drive. You can find the MD-65 manual by contacting AX Control or by searching the manual number D2-3519-2 online.
What is the 6MDDN-010102 adjustable current limit?
The 6MDDN-010102 has a adjustable current limit of 10%-150%.
What type of environment should the 6MDDN-010102 be kept in?
The 6MDDN-010102 should be installed in a environment with little moisture and dust in the air with a temperature between 14-104 degrees fahrenheight.

Repair Services For 6MDDN-010102

Type Lead Time Price Action
Repair Service 1-2 weeks $399

Our highly skilled technicians can repair your 6MDDN-010102. All of our repairs come with a 3 Year AX Control Warranty. Please contact us for additional information about our repair process. To receive the repair pricing and lead time listed above please process your repair order via our website. The following repair options may be available upon request:

  • 48-72hr Rush Repair
  • Detailed Repair Reports
  • AX Control Certificate of Warranty

AX Control Warranty Info

All products we sell are backed by our unparalleled warranty. A warranty certificate will be provided with your order upon request.
All PLCs, HMIs, and Turbine Control Boards: 3 Years
All AC/DC and Servo Drives: 2 Years
All Motors: 1 Year
Learn More

6MDDN-010102 Manuals, White Papers, Data Sheets, and Troubleshooting
