Reliance Electric 6MDAN-012102 MD65 Series 240 VAC 3HP Motor Controller

AVAILABILITY:

CALL FOR AVAILABILITY

Sell Surplus: Have a 6MDAN-012102 to sell? Sell Now
Exchange Credit: Learn more about our exchange credit program
  • Part Number: 6MDAN-012102
  • SKU: 6MDAN012102RE
  • Manufacturer: Reliance Electric
  • Series: MD65 Drives

6MDAN-012102 Technical Specifications

Manufacturer Reliance Electric
Series MD65
Part Number 6MDAN-012102
HP 3 HP
Input Voltage 240 VAC
Hz 50/60Hz
kW 2.2kW
Filter/No Filter Not Filtered
Labeling UL Listed, IEC Certified

About the 6MDAN-012102

6MDAN-012102 is a 200-240 VAC 1-phase input, 0-230 V 3-phase output MD65 drive that is manufactured by Reliance Electric. This drive outputs 2.2 kW (3.0 HP) and 12.0 amps. The input voltage range is 180-265, the input kVA is 5.5, and the input amps are 25.0. The branch circuit protection is 40 for the fuses and 35 for the circuit breaker. The power dissipation is 110 watts.

The options for this drive include a remote NEMA 4x LCD keypad, a copy cat programmer, external dynamic braking resistors, VS utilities PC software, and EMC filters for CE compliance. The communication card options for the drive are DeviceNet, Ethernet/IP, Profibus, a communication card cover kit, and cable accessory kits. Mounting options for the drive include the IP20 standard (DIN rail or panel mounting), the optional NEMA 1 kit, the remote door mount NEMA 1 keypad, and the handheld copy cat programmer.

Up to 5 drives can be supported on 1 node. The drive also supports StepLogic, multi-drop network capability, time and counter functions, and basic logic functions. Advanced features on the drive include dynamic braking, a skip frequency band, a PID controller, 2 analog inputs, 1 relay output, 1 analog output, 2 configurable digital outputs, 4 configurable digital inputs, 8 preset speeds, compare and timer functions, auto-timing, and sensorless vector control. The keypad on the drive includes a 4-character LED display, a program key, up and down arrow keys, a drive potentiometer, a start key, a forward/reverse key, a stop key, and an enter key.

Frequently Asked Questions about 6MDAN-012102

What is the function of the 6MDAN-012102?
The 6MDAN-012102 is a Reliance Electric MD65 Series AC Phase 1 Drive.
Where can I find the manual for the 6MDAN-012102?
The 6MDAN-012102 does not have a specific manual but the MD65 Series manual contains detailed information on the drive. You can find the MD65 manual on our website, axcontrol.com.
What frame model does the 6MDAN-012102 have?
The 6MDAN-012102 is equipped with a frame B model.
What does it mean when the LED light on the exterior of the drive is flashing red?
The LED lights indicate the status of the 6MDAN-012102. If the LED on the exterior of the 6MDAN-012102 is flashing red, the drive is faulted.

Repair Services For 6MDAN-012102

Type Lead Time Price Action
Repair Service 1-2 weeks $329

Our highly skilled technicians can repair your 6MDAN-012102. All of our repairs come with a 3 Year AX Control Warranty. Please contact us for additional information about our repair process. To receive the repair pricing and lead time listed above please process your repair order via our website. The following repair options may be available upon request:

  • 48-72hr Rush Repair
  • Detailed Repair Reports
  • AX Control Certificate of Warranty

AX Control Warranty Info

All products we sell are backed by our unparalleled warranty. A warranty certificate will be provided with your order upon request.
All PLCs, HMIs, and Turbine Control Boards: 3 Years
All AC/DC and Servo Drives: 2 Years
All Motors: 1 Year
Learn More

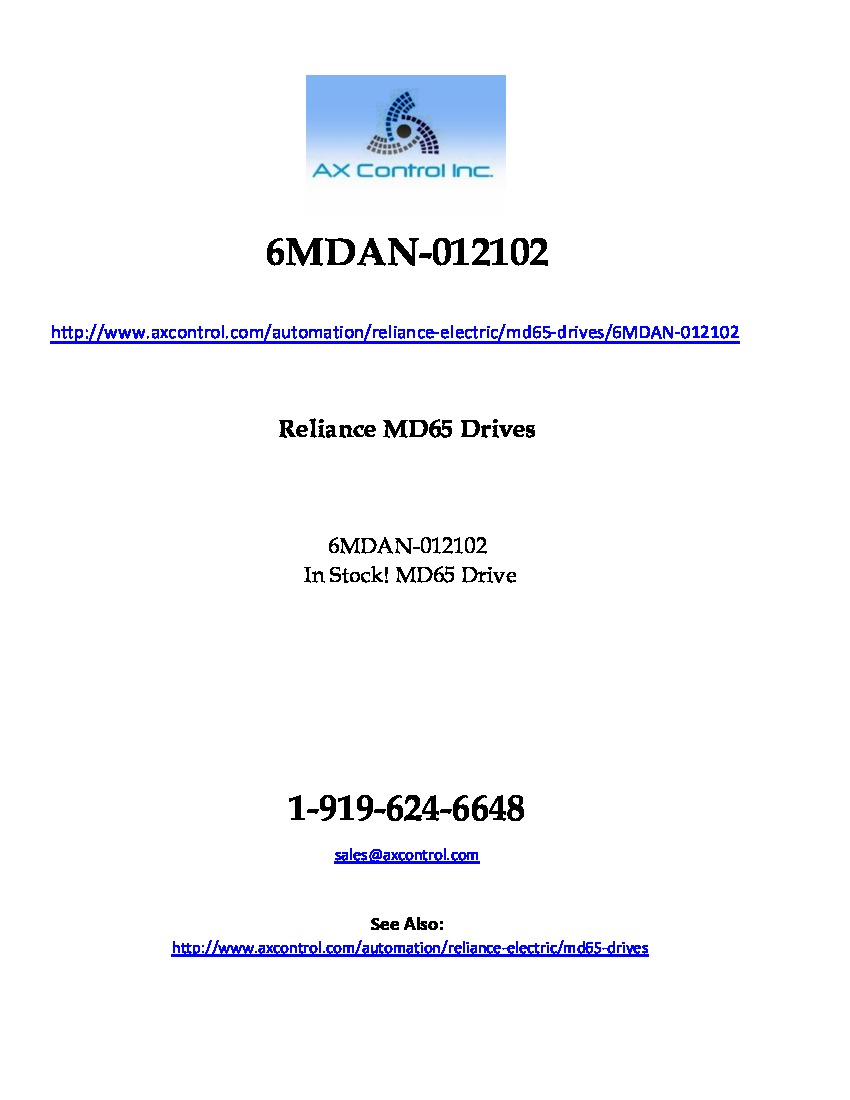

6MDAN-012102 Manuals, White Papers, Data Sheets, and Troubleshooting
