The 6MBBN-5P0102 AC drive from Reliance Electrics' MD65 series is a NEMA 1-enclosed drive with a motor rating of 0.75 kW, an AC voltage range of 180-264, and a 3-phase regulation pattern.

AVAILABILITY:

CALL FOR AVAILABILITY

Sell Surplus: Have a 6MBBN-5P0102 to sell? Sell Now
Exchange Credit: Learn more about our exchange credit program
  • Part Number: 6MBBN-5P0102
  • SKU: 6MBBN5P0102RE
  • Manufacturer: Reliance Electric
  • Series: MD65 Drives

6MBBN-5P0102 Technical Specifications

Manufacturer Reliance Electric
Series MD65
Part Number 6MBBN-5P0102
HP 1 HP
Input Voltage 240 VAC
Enclosure NEMA 1 or Chassis
Hz 48-63Hz
kW 0.75kW
Filter/No Filter Not Filtered
Labeling UL Listed, IEC Certified

Product Description

The 6MBBN-5P0102 drive is part of the MD65 series. The 6MBBN-5P0102 drive is classified as an A-C Drive. The 6MBBN-5P0102 drive was manufactured on July 31, 2006 by Reliance Electric. AX Control offers the unit in reconditioned form and may also have new, never used units from surplus stock available for purchase.

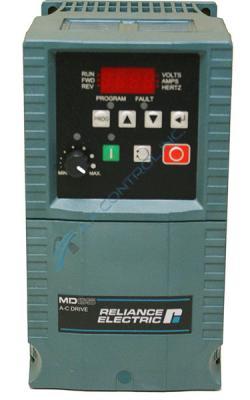

The 6MBBN-5P0102 drive is a tall, rectangular greenish-colored device with an indented interface that has a black background. At the top of the interface is a four-digit digital screen, capable of reading Volts, Amps, and Hertz. The screen also tells the user if the 6MBBN-5P0102 drive is in RUN, FWD, or REV. Below the screen lies two indicator lights, one with text above it that reads “PROGRAM” and another with text above it that reads “FAULT.” Below the 6MBBN-5P0102 drive’s indicator lights are four buttons: One that says “PROG,” one that is an UP arrow, one that is a DOWN arrow, and one that has a RETURN signal on it. Below those buttons are three more buttons: One that is green with a white line in the middle, one that is white with a thin, curved black arrow, and one that is red with a white circle in the middle. To the left of the bottom three buttons is a dial with “MIN” and “MAX” written on either end.

The 6MBBN-5P0102 is equipped with a NEMA 1 Enclosure. The motor rating of the 6MBBN-5P0102 drive is 0.75kW/1.0HP. The input is a 3 Phase/200-240V/48-63Hz. The AC Voltage range of the 6MBBN-5P0102’s input is 180-264. The 6MBBN-5P0102’s input is capable of utilizing 5.7 amps of electric current. As for the output of the 6MBBN-5P0102, it is a 3 Phase/0-400Hz. The AC Voltage Range of the 6MBBN-5P0102’s output is 0-230. The 6MBBN-5P0102’s output has a Continuous Amps rating of 5.0 and a 60 Sec Ovid Amps rating of 7.5.
