6V41-065TA

    Varying star amount pictures Varying star amount pictures Varying star amount pictures Varying star amount pictures Varying star amount pictures
  • 4.75 (4)
  • Click a star to rate this product
    Varying star amount pictures Varying star amount pictures Varying star amount pictures Varying star amount pictures Varying star amount pictures
  • 4.75 (4)
  • Click a star to rate this product
50 HP VFD Varible Speed Drive

AVAILABILITY:

CALL FOR AVAILABILITY

Sell Surplus: Have a 6V41-065TA to sell? Sell Now
Exchange Credit: Learn more about our exchange credit program
  • Part Number: 6V41-065TA
  • SKU: 6V41065TARE
  • Manufacturer: Reliance Electric
  • Series: GV6000 Drives

6V41-065TA Technical Specifications

Manufacturer Reliance Electric
Series GV6000
Part Number 6V41-065TA
HP 50 HP
Input Voltage 460 VAC
Enclosure NEMA 1 Air Cooled
Digital Input Voltage 24 VDC
Braking Transistor Included
Labeling UL Listed, IEC Certified

Product Description

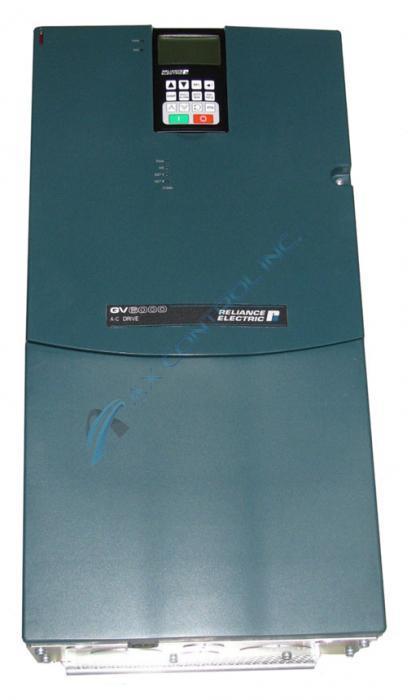

6V41-065TA is a GV6000 AC Drive that is manufactured by Reliance Electric. The nominal duty horsepower is 50, the continuous amps are 65, and the frame is 3. The dimensions of frame 3 are 222 mm x 517.5 mm x 200 mm x 192 mm x 500 mm. This drive has a 460 VAC input and is enclosed in a NEMA 1 enclosure. A braking transistor comes standard on this unit. The I/O is 24 VDC.

There are a number of faults on the drive. Fault number 2 is an auxiliary input fault, which means that the input is open. Check the remote wiring. Fault number 3 is a power loss fault, which can be corrected by monitoring the incoming AC line for a line power interruption or low voltage. Fault number 4 is an undervoltage fault, which can be corrected by monitoring the incoming AC line for a line power interruption or low voltage. Fault number 5 is an overvoltage fault, which means that the DC bus voltage exceeded its maximum. Monitor the AC line power for high voltage. Fault number 7 is a motor overload fault, which means that there was an internal electronic overload trip, and some load needs to be removed from the motor. Fault number 8 is a heatsink overtemperature fault, means that the heatsink temperature are exceeding 100% of the drive temperature. To fix this fault, check the fan and check for excess load on the motor. Fault number 9 is a transistor overtemperature fault. The drive must be at the proper temperature and have a proper flow rate of coolant in order to clear this fault. Fault number 12 is a HW overcurrent fault, which means that the drive output current exceeded the hardware current limit. To correct this fault, check the programming and check for excess load or excess current.

Frequently Asked Questions about 6V41-065TA

How does a 6V41-065TA indicate faults?
A GV6000 6V41-065TA drive indicates faults by:
-Status LEDs on the control panel of the 6V41-065TA
-Drive status parameters (parameters 209 and 210)
-Entries in the fault queue
-Pop-up screen on the 6V41-065TA drive's LCD OIM, which displays: fault number, fault name, time elapsed since fault occurred
How do you clear a fault on a 6V41-065TA after taking corrective action to fix the fault?
After the cause of the fault condition has been cleared on a 6V41-065TA, clear the fault by either: setting the Fault Clear parameter (parameter 240) to Clear Faults, or issuing a Stop-Clear Faults command from the control source of the 6V41-065TA.
What are the output amps of a 6V41-065TA at 480 VAC input?
The three numbers in the second half of the part number of a 6V41-065TA GV6000 drive indicates 65 continuous output amps at 480 VAC. The output amps at 1 minute at 480 VAC are 78 on a 6V41-065TA and the output amps at 3 seconds on a 6V41-065TA at 480 VAC are 104.
What frame size does a 6V41-065TA have?
6V41-065TA has a size 3 frame as identified in the GV6000 AC Drive User Manual.
Can AX Control give me a manual for my 6V41-065TA?
Yes, we're happy to send you a link to the GV6000 AC Drive User Manual. The manual is extensive and the manual identifies your 6V41-065TA drive specifically.

Repair Services For 6V41-065TA

Type Lead Time Price Action
Repair Service 1-2 weeks $2099

Our highly skilled technicians can repair your 6V41-065TA. All of our repairs come with a 3 Year AX Control Warranty. Please contact us for additional information about our repair process. To receive the repair pricing and lead time listed above please process your repair order via our website. The following repair options may be available upon request:

  • 48-72hr Rush Repair
  • Detailed Repair Reports
  • AX Control Certificate of Warranty
