6V41-011TA Technical Specifications

Braking Transistor Included
Digital Input Voltage 24 VDC
Enclosure NEMA 1 Air Cooled
HP 7.5 HP
Input Voltage 460 VAC
Labeling UL Listed, IEC Certified
Manufacturer Reliance Electric
Part Number 6V41-011TA
Series GV6000

Product Description

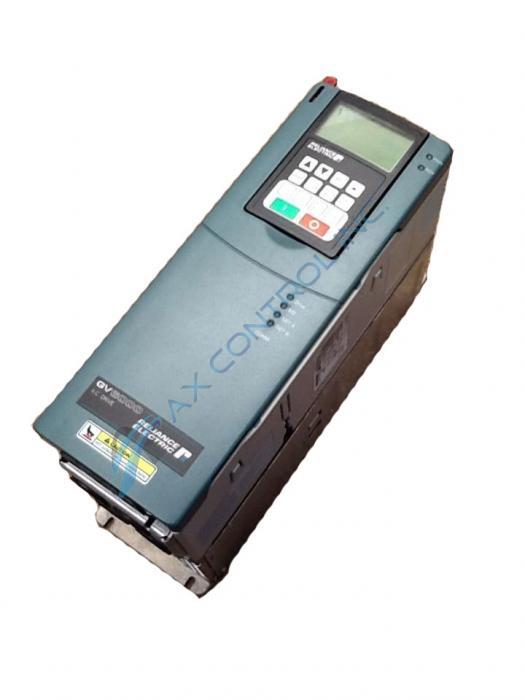

6V41-011TA is a GV6000 AC Drive that is manufactured by Reliance Electric. The nominal duty horsepower is 7.5, the continuous amps are 11, and the frame is 0. This drive has a 460 VAC input and is enclosed in a NEMA 1 enclosure. A braking transistor comes standard on this unit. The I/O is 24 VDC. For all drives, intermittent voltage spikes in excess of 6000 volts occur on the power source. These spikes may be caused by lightning strikes or by other equipment on the line. The power source also has frequent interruptions. Do not touch DC bus capacitors until 5 minutes after input power has been disconnected, because it takes 5 minutes for the DC bus capacitors to completely discharge. When mounting the drives, the area behind each drive must be kept clear of all control and power wiring.

Communications options on the drive include the DeviceNet Communication Module, the Profibus Communication Module, the Interbus Communication Module, the ControlNet Communication Module, the Ethernet/IP Communication Module, the Modbus Communication Module, and the RS-485 DF1 Communication Module. The operator interface options include the standard OIM, the full numeric OIM, the remote mounted NEMA 4 OIM, the blank OIM, and the remote mounted NEMA 1 OIM Bezel kit. The regulator and encoder board options are the 24 VDC input regulator board, the 115 VAC input regulator board, and the encoder board. The V*S Utilities and Pro software allows the user to configure drive parameters via a PC.

Frequently Asked Questions about 6V41-011TA

Can you set your GV6000 6V41-011TA drive to ignore a fault?
User-configurable faults on a 6V41-011TA can be enabled and disabled to either annunciate or ignore a fault condition on a GV6000 6V41-011TA drive by using parameter 238, which is the Fault Configuration 1 parameter.
How can you see the total time a 6V41-011TA has been outputting power?
Parameter 10, the Elapsed Run Time parameter tells you the accumulated time the 6V41-011TA has been outputting power.
How do you select the parameter access level on a 6V41-011TA?
Select the password tab from the main menu on a 6V41-011TA drive to select the parameter access level using the LCD OIM. There are three levels of access for GV6000 drives that you can set a 6V41-011TA to: basic, standard, and advanced. The active access level of the 6V41-011TA will be displayed in parameter 196, Parameter Access Level.
What is the kW and HP of a 6V41-011TA drive at 110% OL duty?
The GV6000 6V41-011TA drive has a 5.5kW and 7.5 HP at 110% OL Duty.
Which Bussmann Style Fuse does the 6V41-011TA have?
A 6V41-011TA has a Bussman_JKS-20 fuse.
What size circuit breaker does a GV6000 6V41-011TA have?
At 480 VAC, the 6V41-011TA has a size 40 circuit breaker, and at 400 VAC, the 6V41-011TA has a size 45 circuit breaker.
