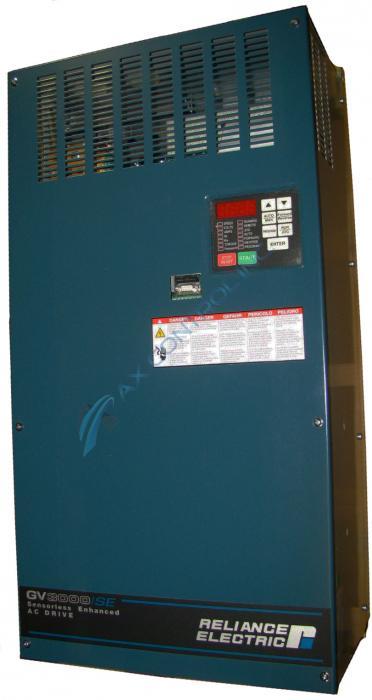

Reliance Electric 100HP 125HP 250Amp 3 Phase VFD | Image
2 year warranty
visa card logo american express logo master card logo bbb logo duns seal

About | Product Specifications | FAQs

GV3000U-AC210-AA-DBT

    Varying star amount pictures Varying star amount pictures Varying star amount pictures Varying star amount pictures Varying star amount pictures
  • 5.00 (3)
  • Click a star to rate this product
    Varying star amount pictures Varying star amount pictures Varying star amount pictures Varying star amount pictures Varying star amount pictures
  • 5.00 (3)
  • Click a star to rate this product
The Reliance Electric GV3000U-AC210-AA-DBT is a 100HP 125HP 250A 3 Phase GV3000 Variable Frequency Drive.
Request a Quote Request Repair
Request a Quote Request Repair

AVAILABILITY:

CALL FOR AVAILABILITY

Sell Surplus: Have a GV3000U-AC210-AA-DBT to sell? Sell Now
Exchange Credit: Learn more about our exchange credit program
  • Part Number: GV3000U-AC210-AA-DBT
  • SKU: RE-9543
  • Manufacturer: Reliance Electric
  • Series: GV3000 Drives

GV3000U-AC210-AA-DBT Technical Specifications

Manufacturer Reliance Electric
Series GV3000
Part Number GV3000U-AC210-AA-DBT
HP 100-125 HP
Input Voltage 380-460 VAC
Enclosure Type 1/IP20
Keypad/Display Built-In Keypad
Phase 3 Phase
Hz 50/60Hz
Instruction Manual D2-3359 & D2-3360

About the GV3000U-AC210-AA-DBT

The GV3000U-AC210-AA-DBT is part of the GV3000 Series designed by Reliance Electric. The series is no longer in production or sold, but AX tries to keep the parts in stock, including the GV3000U-AC210-AA-DBT. These parts are either new or refurbished.

The GV3000U-AC210-AA-DBT is an AC drive with a horsepower range of 100-125 HP, giving it a wide range of capabilities. The drive has multiple motor regulation types, including vector regulation and general purpose regulation. The input range is 380-460 VAC for the GV3000U-AC210-AA-DBT.

The GV3000U-AC210-AA-DBT has a Type 1 enclosure, indicating that it has a general purpose protection for indoor use. This is the standard enclosure for most GV3000 drives.

The GV3000U-AC210-AA-DBT has adjustable parameters designed to help operators. These parameters can be adjusted using the display/keybad on the drive.

Frequently Asked Questions about GV3000U-AC210-AA-DBT

How do you know when a motor overload occurs on GV3000U-AC210-AA-DBT?
When GV3000U-AC210-AA-DBT's motor overloads, meaning GV3000U-AC210-AA-DBT has excess motor current, GV3000U-AC210-AA-DBT has excess load on motor, or there is a loss of phase connection, fault error "OL" will appear on GV3000U-AC210-AA-DBT's keypad/display. Fault "OL" is the fault error for motor overload on a reliance GV3000U-AC210-AA-DBT. View Table 5.2 in the software manual for GV3000U-AC210-AA-DBT, Manual D2-3359 for fault corrective actions to correct a motor overload fault on GV3000U-AC210-AA-DBT.
How many output amps does GV3000U-AC210-AA-DBT have at each carrier frequency?
GV3000U-AC210-AA-DBT has 152 output amps at 2 kHz carrier frequency when GV3000U-AC210-AA-DBT is in vector regulation. When GV3000U-AC210-AA-DBT is in V/Hz at 2 kHz, GV3000U-AC210-AA-DBT has 210 output amps. At 4 kHz, GV3000U-AC210-AA-DBT has 122 output amps in vector and 168 in V/Hz regulation. When GV3000U-AC210-AA-DBT is at 8 kHz and GV3000U-AC210-AA-DBT is in vector regulation, GV3000U-AC210-AA-DBT has 91 output amps and when GV3000U-AC210-AA-DBT is at 8 kHz in V/Hz regulation, GV3000U-AC210-AA-DBT has 126 output amps.
Where can I find parameters on GV3000U-AC210-AA-DBT?
To find a list of parameters for GV3000U-AC210-AA-DBT, view the programming reference chapter of Manual D2-3359, the software reference and start-up manual for GV3000U-AC210-AA-DBT. In Chapter 4 of the manual, you'll find information on first menu general parameters, second menu parameters, types of parameters on GV3000U-AC210-AA-DBT, how to change parameters and display parameters on GV3000U-AC210-AA-DBT, and the table in the manual lists all parameters on GV3000U-AC210-AA-DBT by description of the parameters, range for each of the parameters, default setting for the parameters, and other parameters to refer to for each specific parameter. For a copy of the software manual for GV3000U-AC210-AA-DBT to identify parameters, ask for Manual D2-3359.
Is GV3000U-AC210-AA-DBT vented?
Yes, GV3000U-AC210-AA-DBT is a vented drive. The NEMA 1 enclosure rating on GV3000U-AC210-AA-DBT indicates GV3000U-AC210-AA-DBT is vented and it indicates GV3000U-AC210-AA-DBT has a communication access door that allows access to GV3000U-AC210-AA-DBT's communication port without removing the cover.

Reviews For GV3000U-AC210-AA-DBT

Internal Review
(5.0)

The GV3000U-AC210-AA-DBT is an AC drive from the GV3000 Series. The GV3000U-AC210-AA-DBT has a high horsepower rating, which signifies the efficiency the drive can produce. The drive is designed for indoor use, as most GV3000 drives are. The GV3000U-AC210-AA-DBT can come with the standard 1-3 year warranty when purchased or repaired by AX. - AX Control Lead Technician

Repair Services For GV3000U-AC210-AA-DBT

Type Lead Time Price Action
Repair Service 1-2 weeks $1268

Our highly skilled technicians can repair your GV3000U-AC210-AA-DBT. All of our repairs come with a 3 Year AX Control Warranty. Please contact us for additional information about our repair process. To receive the repair pricing and lead time listed above please process your repair order via our website. The following repair options may be available upon request:

  • 48-72hr Rush Repair
  • Detailed Repair Reports
  • AX Control Certificate of Warranty
