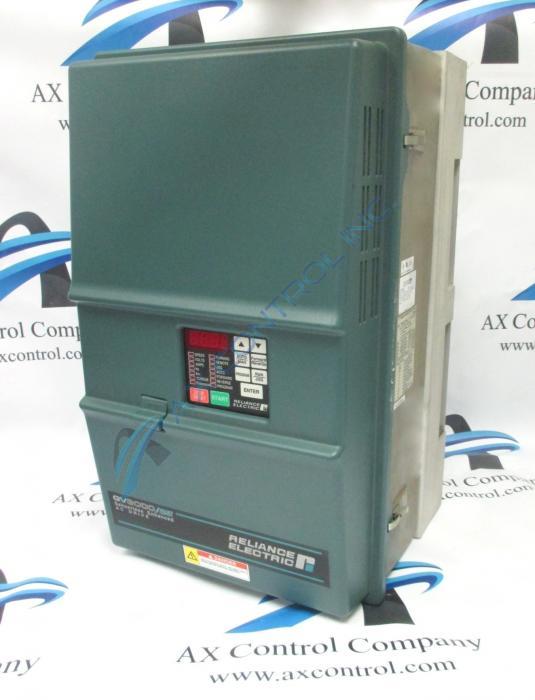

25HP 460V Vector Drive Part Number 896.09.80



Sell Surplus: Have a GV3000U-AC032-AA-DBT to sell? Sell Now
Exchange Credit: Learn more about our exchange credit program
  • Part Number: GV3000U-AC032-AA-DBT
  • Manufacturer: Reliance Electric
  • Series: GV3000 Drives

GV3000U-AC032-AA-DBT Technical Specifications

Manufacturer Reliance Electric
Series GV3000
Part Number GV3000U-AC032-AA-DBT
HP 25 HP
Input Voltage 380-460 VAC
Enclosure Type 1/IP20
Keypad/Display Built-In Keypad
Phase 3 Phase
Hz 50/60Hz
Instruction Manual D2-3359 & D2-3360

Frequently Asked Questions about GV3000U-AC032-AA-DBT

How many input and output amps does GV3000U-AC032-AA-DBT have?
GV3000U-AC032-AA-DBT has 37 input amps. GV3000U-AC032-AA-DBT has 30.4 output amps.
What are components that GV3000U-AC032-AA-DBT has that other 1-25 HP GV3000 drives do not?
GV3000U-AC032-AA-DBT along with 15-25 HP drives have a power PCB, power supply PCB, and a gate driver PCB. Drives with a 1-25 HP have all the same components except for the three mentioned that are only on GV3000U-AC032-AA-DBT and other 15-25 HP drives. The other components GV3000U-AC032-AA-DBT has are: fan assembly, membrane switch, regulator PCB, capacitor PCB, current feedback PCB, internal fan assembly, IGBT module, diode bridge, and fan wire harness.
What is the GV3000U-AC032-AA-DBT drive overtemp fault on GV3000U-AC032-AA-DBT?
The fault code error for drive overtemperature on GV3000U-AC032-AA-DBT is "OH." This fault is caused by a cooling fan failure on GV3000U-AC032-AA-DBT. To correct this fault for GV3000U-AC032-AA-DBT, check ambient temperature of GV3000U-AC032-AA-DBT, check cooling fan on GV3000U-AC032-AA-DBT, and check minimum clearances around GV3000U-AC032-AA-DBT.
Which manual is best for identifying parameters and fault codes on GV3000U-AC032-AA-DBT?
Manual D2-3359, the software manual for GV3000U-AC032-AA-DBT, is the best manual for identifying parameters and fault codes on GV3000U-AC032-AA-DBT. The manual identifies all parameters on GV3000U-AC032-AA-DBT with parameters name, description, range, and default setting as well as parameters that pair with each parameter on GV3000U-AC032-AA-DBT. The software manual also provides a table that lists fault codes by fault code lettering, fault cause, and corrective action for the fault occuring on a reliance GV3000U-AC032-AA-DBT. For a copy of the software manual for GV3000U-AC032-AA-DBT, request Manual D2-3359.

Repair Services For GV3000U-AC032-AA-DBT

Type Lead Time Price Action
Repair Service 1-2 weeks $1371

Our highly skilled technicians can repair your GV3000U-AC032-AA-DBT. All of our repairs come with a 3 Year AX Control Warranty. Please contact us for additional information about our repair process. To receive the repair pricing and lead time listed above please process your repair order via our website. The following repair options may be available upon request:

  • 48-72hr Rush Repair
  • Detailed Repair Reports
  • AX Control Certificate of Warranty

AX Control Warranty Info

All products we sell are backed by our unparalleled warranty. A warranty certificate will be provided with your order upon request.
All PLCs, HMIs, and Turbine Control Boards: 3 Years
All AC/DC and Servo Drives: 2 Years
All Motors: 1 Year
