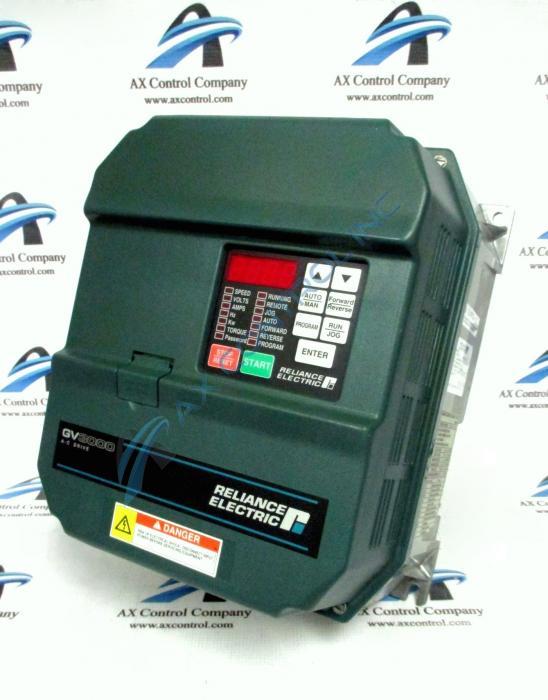

This Reliance Electric 10 HP GV3000U-AC015-AA-DBT drive from the GV3000 legacy series of automated drives has 50/60Hz, a NEMA 1 or IP20 enclosure, 7.5kW, and an input voltage rating of 380-460 VAC.



Sell Surplus: Have a GV3000U-AC015-AA-DBT to sell? Sell Now
Exchange Credit: Learn more about our exchange credit program
  • Part Number: GV3000U-AC015-AA-DBT
  • Manufacturer: Reliance Electric
  • Series: GV3000 Drives

GV3000U-AC015-AA-DBT Technical Specifications

Manufacturer Reliance Electric
Series GV3000
Part Number GV3000U-AC015-AA-DBT
HP 10 HP
Input Voltage 380-460 VAC
Enclosure Type 1/IP20
Keypad/Display Built-In Keypad
Phase 3 Phase
kW 7.5kW
Hz 50/60Hz
Instruction Manual D2-3359 & D2-3360

Frequently Asked Questions about GV3000U-AC015-AA-DBT

Which parameter on GV3000U-AC015-AA-DBT identifies motor rated voltage?
Parameter U.007, the motor nameplate volts parameter, on GV3000U-AC015-AA-DBT is the parameter that identifies motor rated voltage as it appears on GV3000U-AC015-AA-DBT's motor nameplate. This parameter on GV3000U-AC015-AA-DBT has a range of 100 to 690 volts. For GV3000U-AC015-AA-DBT, this parameter is default set to 460V. This parameter is a configurable parameter.
How many power loss watts does GV3000U-AC015-AA-DBT have?
GV3000U-AC015-AA-DBT has 250 power loss watts.
Where are the analog output connections on GV3000U-AC015-AA-DBT?
The analog output connections for GV3000U-AC015-AA-DBT are located at terminals 10 and 11 on GV3000U-AC015-AA-DBT's terminal strip.
What are the manuals for GV3000U-AC015-AA-DBT?
The manuals for GV3000U-AC015-AA-DBT are the GV3000 NEMA style software and hardware manuals, Manuals D2-3359 and D2-3360. These manuals for GV3000U-AC015-AA-DBT can be found on our site or we can send you links to the manuals for GV3000U-AC015-AA-DBT.

Reviews For GV3000U-AC015-AA-DBT

Internal Review

A cabinet-style GV3000 series drive enclosed in a NEMA 1 or IP20 chassis, the GV3000U-AC015-AA-DBT legacy drive features a AC015 inverter type; the highest inverter type still compatible with a 25 maximum external drive fuse. This drive is meant for indoor applications, with a both a water ingress protection rating of 0 an a dust ingress protection rating of 0. This version of drive does not come with an RFI filter, as many similar drives from Reliance Electric might. - AX Control Lead Technician.
