Home Reliance Electric GV3000 Drives GV3000U-AC009-AA-DBT

GV3000U-AC009-AA-DBT

Q: Where can I find the manuals for GV3000U-AC009-AA-DBT?

We&#39;re happy to send you the manuals for GV3000U-AC009-AA-DBT. The manuals for GV3000U-AC009-AA-DBT are Manuals D2-3359 and D2-3360, the GV3000 NEMA style software and hardware manuals for GV3000U-AC009-AA-DBT.

5.00 (3)
Click a star to rate this product

5.00 (3)
Click a star to rate this product

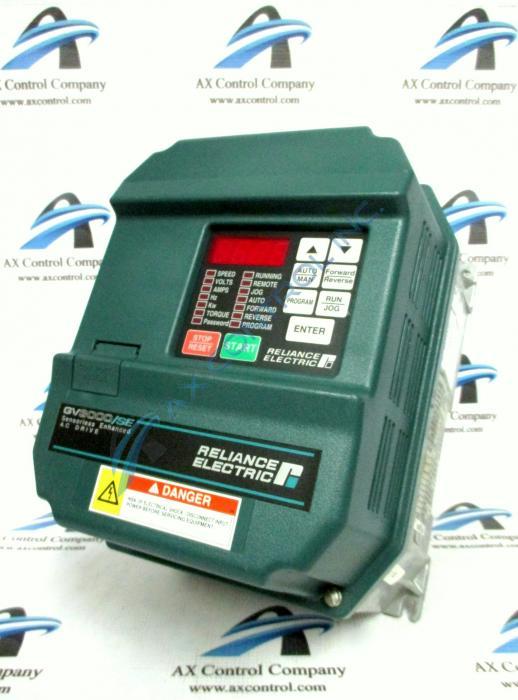

A 5 HP option from Reliance Electrics' GV3000 series of automated drive, the GV3000U-AC009-AA-DBT 3-phase model drive offers a built-in keypad, 4.0 kW, 50/60Hz, and an input voltage rating of 380-460 VAC, all enclosed in a NEMA 1 protective chassis.

Request a Quote Request Repair

AVAILABILITY:

IN STOCK
SHIPS IN 3-5 DAYS

Contact: 1-919-372-8413 (Intl.), 1-800-991-7026 (US), sales@axcontrol.com

2 Year Warranty: Learn More About Our Warranty

Sell Surplus: Have a GV3000U-AC009-AA-DBT to sell? Sell Now

Exchange Credit: Learn more about our exchange credit program

Part Number: GV3000U-AC009-AA-DBT
SKU: RE-9534

Manufacturer: Reliance Electric
Series: GV3000 Drives

Description
Repairs
Warranty
Manuals

GV3000U-AC009-AA-DBT Technical Specifications

Manufacturer	Reliance Electric
Series	GV3000
Part Number	GV3000U-AC009-AA-DBT
HP	5 HP
Input Voltage	380-460 VAC
Enclosure	NEMA 1
Keypad/Display	Built-In Keypad
Phase	3 Phase
kW	4.0kW
Hz	50/60Hz
Instruction Manual	D2-3359 & D2-3360

About the GV3000U-AC009-AA-DBT

The GV3000U-AC009-AA-DBT is an AC Drive designed as part of the GV3000 Series by Reliance Electric. The GV3000U-AC009-AA-DBT is now an obsolete part, but AX tries to keep this drive and other parts from the GV3000 Series in stock.

The maximum horsepower of the GV3000U-AC009-AA-DBT is 5. The drive has an input voltage of 380-460 VAC and an H/z of 50/60. The GV3000U-AC009-AA-DBT also has a built in keypad display. This display allows users to adjust parameters and see any fault/error codes that might show up.

Frequently Asked Questions about GV3000U-AC009-AA-DBT

What types of parameters does GV3000U-AC009-AA-DBT have?

There are three types of parameters. GV3000U-AC009-AA-DBT uses all types of parameters. The different types of parameters are configurable, tunable, and read only. Configurable parameters can only be adjusted or changed while GV3000U-AC009-AA-DBT is stopped. Tunable parameters can be adjusted while GV3000U-AC009-AA-DBT is running or while GV3000U-AC009-AA-DBT is stopped. And read only parameters cannot be adjusted on GV3000U-AC009-AA-DBT.

How many input and output amps does GV3000U-AC009-AA-DBT have?

GV3000U-AC009-AA-DBT has 9.9 input amps. GV3000U-AC009-AA-DBT has 11.1 output amps.

How are fault codes displayed on GV3000U-AC009-AA-DBT?

Fault codes on GV3000U-AC009-AA-DBT are displayed by a two or three letter flashing fault code on GV3000U-AC009-AA-DBT's keypad display.

Where can I find the manuals for GV3000U-AC009-AA-DBT?

We're happy to send you the manuals for GV3000U-AC009-AA-DBT. The manuals for GV3000U-AC009-AA-DBT are Manuals D2-3359 and D2-3360, the GV3000 NEMA style software and hardware manuals for GV3000U-AC009-AA-DBT.

Reviews For GV3000U-AC009-AA-DBT

Internal Review

(5.0)

This model of GV3000 series Reliance Electric legacy drive is unique in some of its hardware component specifications. While the GV3000U-AC009-AA-DBT drive does feature the built-in LED keypad display and NEMA 1 enclosure typical of many GV3000 legacy series drives, it is considered the final inverter version of GV3000U drive that doesn't require two internal fan assemblies. This indoor model is available for both repair and replacement through AXcontrol, with a two-year guaranteed warranty upon purchase. - AX Control Lead Technician

Repair Services For GV3000U-AC009-AA-DBT

Type	Lead Time	Price	Action
Repair Service	1-2 weeks	$1445

Our highly skilled technicians can repair your GV3000U-AC009-AA-DBT. All of our repairs come with a 3 Year AX Control Warranty. Please contact us for additional information about our repair process. To receive the repair pricing and lead time listed above please process your repair order via our website. The following repair options may be available upon request:

48-72hr Rush Repair
Detailed Repair Reports
AX Control Certificate of Warranty

AX Control Warranty Info

All products we sell are backed by our unparalleled warranty. A warranty certificate will be provided with your order upon request.

All PLCs, HMIs, and Turbine Control Boards:	3 Years
All AC/DC and Servo Drives:	2 Years
All Motors:	1 Year

Learn More

GV3000U-AC009-AA-DBT Manuals, White Papers, Data Sheets, and Troubleshooting

gv3000.pdf
gv3000.pdf
