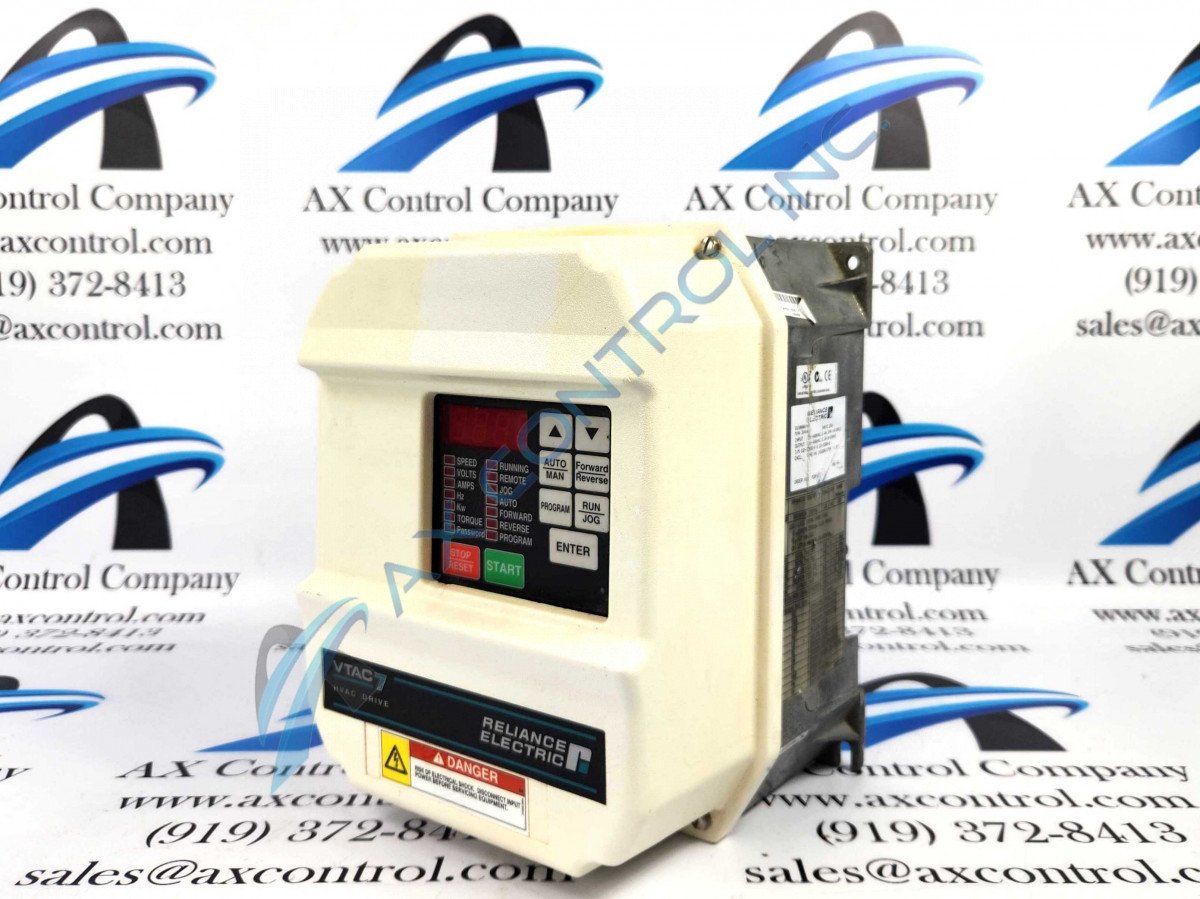

GV3000U-AC002-AF-DBT Image One
2 year warranty

GV3000U-AC002-AF-DBT Image 1
GV3000U-AC002-AF-DBT Image 2
GV3000U-AC002-AF-DBT Image 3
GV3000U-AC002-AF-DBT Image 4

GV3000U-AC002-AF-DBT

    Varying star amount pictures Varying star amount pictures Varying star amount pictures Varying star amount pictures Varying star amount pictures
  • 5.00 (3)
  • Click a star to rate this product
    Varying star amount pictures Varying star amount pictures Varying star amount pictures Varying star amount pictures Varying star amount pictures
  • 5.00 (3)
  • Click a star to rate this product
The GV3000U-AC002-AF-DBT drive is one of the AC power drives. This model has a horsepower rating of 1 HP. The enclosure is NEMA 4X/12. The motor power on this model is 0.75 kW.

AVAILABILITY:

IN STOCK
SHIPS IN 3-5 DAYS

Sell Surplus: Have a GV3000U-AC002-AF-DBT to sell? Sell Now
Exchange Credit: Learn more about our exchange credit program
  • Part Number: GV3000U-AC002-AF-DBT
  • SKU: GV3000UAC002AFDBTRE
  • Manufacturer: Reliance Electric
  • Series: GV3000 Drives

GV3000U-AC002-AF-DBT Technical Specifications

Catalog Number GV3000U-AC002-AF-DBT
US Model Number 1V4460
European Stock Number 896.00.70
Series GV3000
Manufacturer Reliance Electric
Instruction Manual D2-3359 & D2-3360
Enclosure NEMA 4X/12
Keypad/Display Built-In Keypad
Input Voltage 380-460 VAC
HP 1 HP
Hz 50/60Hz
Motor Power 0.75 kW
Inverter Current 2.1 A at 2 kHz

Product Description

Drive number GV3000U-AC002-AF-DBT is one of the GV3000 AC Drives from Reliance Electric. This drive is only rated for indoor applications due to the NEMA 4X/12 enclosure rating. One of the downsides of the NEMA 4X/12 enclosure is the lack of ventilation, but it is water-tight and dust-resistant. The enclosure does not have a communication access door for easy access to the ports, so the cover will have to be removed to access them. The enclosure does supply the drive with a keypad and base gaskets.

There are two other reference numbers regarding the GV3000U-AC002-AF-DBT drive. The part numbers are 896.00.70, the European stock number, and 1V4460, the US model number. The US model number is most often used to refer to this drive because the part breakdown is simple because each of the characters will identify a function of the drive. For example, the 1 in the US model number represents the horsepower rating, which is 1 HP. Other characters that denote some of the GV3000U-AC002-AF-DBT features is the V following the 1, the V in the US model number represents the regulator type, which in this case is a vector and Volts/Hertz (V/Hz) regulator. For more information on the part breakdown, refer to Table 2.1 in the D2-3360 Instruction Manual.

The two sets of technical data that describe the GV3000U-AC002-AF-DBT drive are the inverter current and the motor power. Typically, these values differ depending on the regulator mod;  this is not the case with this model, as the values are the same for vector and V/Hz regulation. For example, the motor power for this model outright is 0.75 kW.

Frequently Asked Questions about GV3000U-AC002-AF-DBT

What are the power loss watts on GV3000U-AC002-AF-DBT?
GV3000U-AC002-AF-DBT has 60 power loss watts when GV3000U-AC002-AF-DBT is at full load.
How many output amps does GV3000U-AC002-AF-DBT have?
GV3000U-AC002-AF-DBT has 2.1 output amps whether GV3000U-AC002-AF-DBT is at a carrier frequency of 2, 4, or 8 kHz.
What fault code appears on GV3000U-AC002-AF-DBT when there is a regulator board failure?
When the regulator board fails on GV3000U-AC002-AF-DBT, fault code error "UAr" will appear on GV3000U-AC002-AF-DBT's keypad. The "UAr" fault code is the fault error for spurious host PC comm interrupt on GV3000U-AC002-AF-DBT. To correct this fault, replace the regulator board on GV3000U-AC002-AF-DBT.
What manuals are used with GV3000U-AC002-AF-DBT?
There are two manuals to use with GV3000U-AC002-AF-DBT. These manuals are manuals D2-3359 and D2-3360. These manuals are the GV3000/SE AC General Purpose and Vector Duty Drive Software Start-Up and Reference and Hardware, Installation and Troubleshooting Manuals. For copies of these manuals for GV3000U-AC002-AF-DBT, request the links to the manuals for GV3000U-AC002-AF-DBT.

Reviews For GV3000U-AC002-AF-DBT

Internal Review
(4.0)

One downside of this drive is the cover that encases it. The cover is plastic and is known to crack and break easily if dropped. While the enclosure of this model is water-tight, the covers are difficult to obtain. - AX Control Tech
