GV3000U-AC002-AA-DBT

    Varying star amount pictures Varying star amount pictures Varying star amount pictures Varying star amount pictures Varying star amount pictures
  • 5.00 (3)
  • Click a star to rate this product
    Varying star amount pictures Varying star amount pictures Varying star amount pictures Varying star amount pictures Varying star amount pictures
  • 5.00 (3)
  • Click a star to rate this product

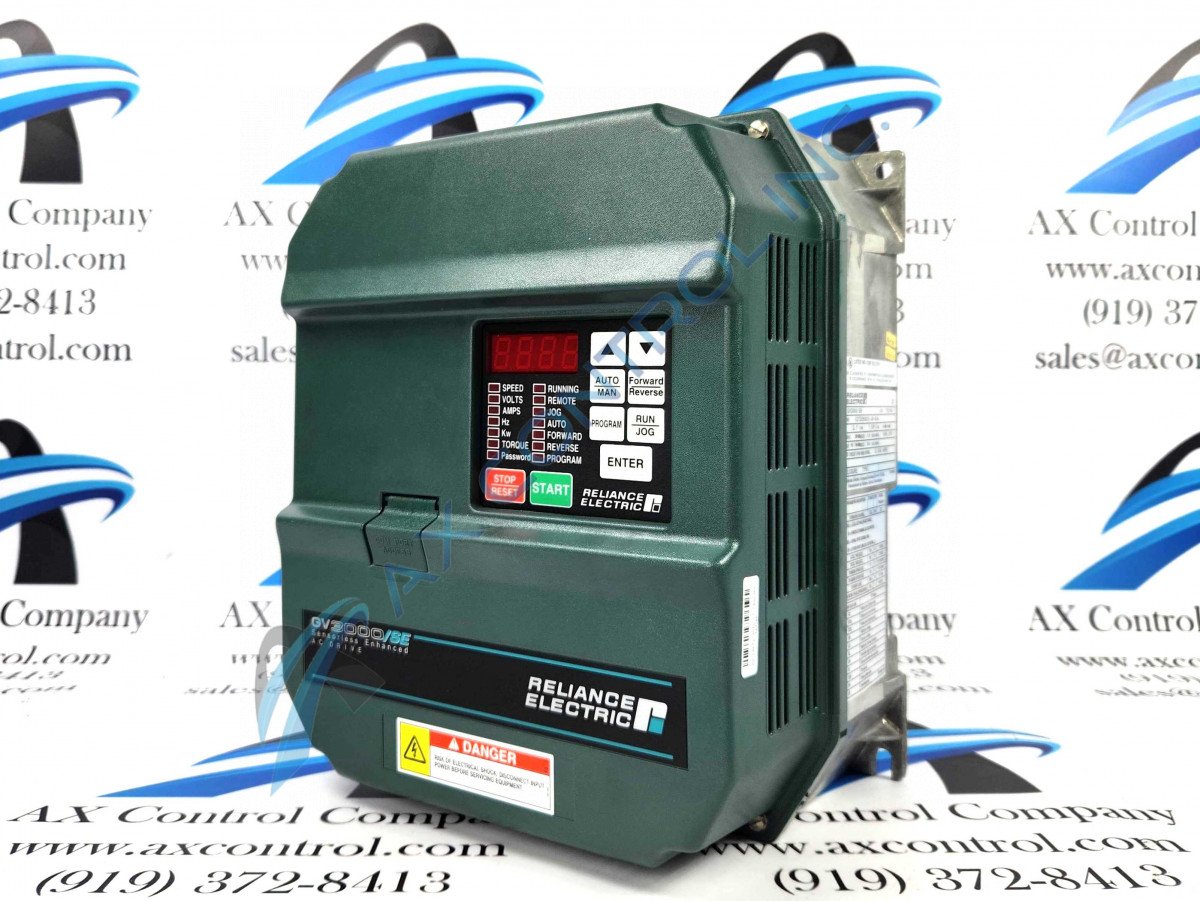

A 1 HP option from Reliance Electrics' GV3000 series of AC power drives; the GV3000U-AC002-AA-DBT model is a 3-phase, 50/60Hz model with an input voltage rating of 380-460 VAC and a NEMA 1 or IP20 enclosure.

AVAILABILITY:

IN STOCK
SHIPS IN 3-5 DAYS

Sell Surplus: Have a GV3000U-AC002-AA-DBT to sell? Sell Now
Exchange Credit: Learn more about our exchange credit program
  • Part Number: GV3000U-AC002-AA-DBT
  • SKU: GV3000UAC002AADBTRE
  • Manufacturer: Reliance Electric
  • Series: GV3000 Drives

GV3000U-AC002-AA-DBT Technical Specifications

Catalog Number GV3000U-AC002-AA-DBT
US Model Number 1V4160
European Stock Number 896.00.80
Series GV3000
Manufacturer Reliance Electric
Enclosure NEMA 1 or IP20
Keypad/Display Built-In Keypad
Instruction Manual D2-3359 & D2-3360
Phase 3 Phase
Motor Power 0.75 kW
Input Voltage 380-460 VAC
HP 1 HP
Hz 50/60Hz
Input KVA 2.0 KVA
Input Amps 2.5 A
Power Loss Watts (Full Load) 60 A
Output Amps at 2, 4, and 8 kHz 2.1 A

About the GV3000U-AC002-AA-DBT

AC Power Drive GV3000U-AC002-AA-DBT from Reliance Electric operates on a horsepower rating of 1 HP in vector or Volts/Hertz (V/Hz) regulator mode. This is a distinction from some of the other GV3000 drives, as the horsepower rating can differ between the two different regulator modes.

There are two other model numbers associated with the GV3000U-AC002-AA-DBT drive. One is the European stock number, and the other is the US model number. The US model number, 1V4160, is the number most known in reference to this drive as it is easier to identify the components in this US model number rather than the GV3000U-AC002-AA-DBT number due to its simplicity. The European stock number, 896.00.80, is less known but is still used to refer to this drive. The European stock number identifies the inverter version, which for this module is an inverter with DC-bus terminals with an IP20 enclosure.

There are many components used with the GV3000 drives; for example, drive with a horsepower rating of 1-25 HP, there are up to fifteen different elements. For the GV3000U-AC002-AA-DBT drive, which operates on 1 HP, the parts that make up the drive are as follows:

  • A Fan Assembly

  • A Membrane Switch/Keypad/Bracket

  • A Regulator Board

  • An Internal Fan Assembly

  • A Current Feedback Board

  • A Capacitor Board

These six components are vital to the operation of the GV3000U-AC002-AA-DBT drive, as they program the module, help to cool the module, and more. For more information on the components, their locations, and how they function, refer to the D2-3360 GV3000/SE AC Drive Hardware Reference, Installation, and Troubleshooting Manual.

Frequently Asked Questions about GV3000U-AC002-AA-DBT

What are the SVC parameters on GV3000U-AC002-AA-DBT?
There are three main SVC parameters used on GV3000U-AC002-AA-DBT. These parameters are U.030, SVC Slip Adjust Parameter, U.031, SVC Sync Direction Parameter, and U.032, SVC Flux Current Regulator Gain Parameter on GV3000U-AC002-AA-DBT. These parameters are used when GV3000U-AC002-AA-DBT is in SVC operation only. For descriptions of these parameters and the ranges and default settings for these parameters on GV3000U-AC002-AA-DBT, view section 4 in the software manual for GV3000U-AC002-AA-DBT, Manual D2-3359, which lists all parameters for GV3000U-AC002-AA-DBT.
Where can I find a list of drive components on GV3000U-AC002-AA-DBT?
Section 2.3 in the hardware manual (Manual D2-3360) for GV3000U-AC002-AA-DBT lists drive components and locations for 1-25 HP GV3000/SE drives. The manual lists the main components on GV3000U-AC002-AA-DBT then figure 2.2 in the manual provides a diagram displaying the location of GV3000U-AC002-AA-DBT's components.
How much input KVA does GV3000U-AC002-AA-DBT have?
GV3000U-AC002-AA-DBT has 2.0 KVA input.
Does GV3000U-AC002-AA-DBT always have 1 HP?
Yes, GV3000U-AC002-AA-DBT operates at 1 HP whether GV3000U-AC002-AA-DBT is operating in V/Hz or Vector regulation.
