GV3000E-AC089-AA-DBT-RFI

    Varying star amount pictures Varying star amount pictures Varying star amount pictures Varying star amount pictures Varying star amount pictures
  • 5.00 (3)
  • Click a star to rate this product
    Varying star amount pictures Varying star amount pictures Varying star amount pictures Varying star amount pictures Varying star amount pictures
  • 5.00 (3)
  • Click a star to rate this product

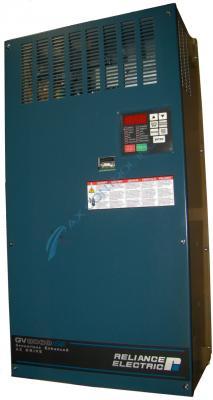

An AC power module from Reliance Electrics' GV3000 legacy series, the GV3000E-AC089-AA-DBT-RFI drive is a 3-phase dual-regulation 50/60Hz drive with a built-in keypad and dual regulation-dependent horsepower ratings of 50 HP or 75 HP.

AVAILABILITY:

CALL FOR AVAILABILITY

Sell Surplus: Have a GV3000E-AC089-AA-DBT-RFI to sell? Sell Now
Exchange Credit: Learn more about our exchange credit program
  • Part Number: GV3000E-AC089-AA-DBT-RFI
  • SKU: GV3000EAC089AADBTRFIRE
  • Manufacturer: Reliance Electric
  • Series: GV3000 Drives

GV3000E-AC089-AA-DBT-RFI Technical Specifications

Catalog Number GV3000E-AC089-AA-DBT-RFI
European Stock Number 896.14.91
US Model Number 50T4160
Series GV3000
Manufacturer Reliance Electric
Instruction Manual D2-3360
Enclosure NEMA 1
Keypad/Display Built-In Keypad
Phase 3 Phase
Input Voltage 380-460 VAC
HP 75 HP (V/Hz) or 50 HP (Vector)
Hz 50/60Hz
Input KVA 81.0 KVA
Input Amps 102 A
Power Loss Watts (Full Load) 1420 A

About the GV3000E-AC089-AA-DBT-RFI

AC Power Module Drive GV3000E-AC089-AA-DBT-RFI was produced by Reliance Electric for their GV3000 series. This model differs from previous GV3000 models as most with an RFI filter also have a braking unit and DC-bus terminals; this model only has the DC-bus terminals and the RFI filter. This drive is rated as non-UL/cUL. There are two cross-referenced part numbers in the GV3000-UM060K-EN-P GV3000/SE AC General Purpose and Vector Drive Instruction Manual. These two part numbers are the US model and European stock numbers. The US model number is the part number most often used when referring to this drive; the part number is 50T4160 and is used to denote what HP the drive will operate on. The European stock number is less known than the US model number; this number is 896.14.91.

As mentioned above, the US model number is the part number most commonly used when referring to the GV3000E-AC089-AA-DBT-RFI drive. It is most often used to designate the selected regulation mode and horsepower rating on the drive. For this drive, the selected regulation can be Vector or Volts/Hertz (V/Hz); each regulation mode has a different horsepower that the unit will operate on. When the module is being used in Vector mode, the drive will operate on 50 HP; when the drive is in V/Hz mode, the unit will operate on 75 HP.

All of the specifications regarding the NEMA enclosure ratings and the power ratings can be found in Table 2.1 of the D2-3360-5 GV3000/SE AC Drive Hardware Reference, Installation, and Troubleshooting Instruction Manual. This manual is also useful for indicating all of the drive’s components and their locations.

Frequently Asked Questions about GV3000E-AC089-AA-DBT-RFI

What is the line voltage variation on a reliance GV3000E-AC089-AA-DBT-RFI?
The line voltage variation for GV3000E-AC089-AA-DBT-RFI is -10% to +10%.
Which parameter is the current limit parameter on GV3000E-AC089-AA-DBT-RFI?
Parameter P.005 is the Current Limit Parameter on GV3000E-AC089-AA-DBT-RFI. This parameter on GV3000E-AC089-AA-DBT-RFI provides the means to limit motor stator current while GV3000E-AC089-AA-DBT-RFI is running at constant speed or when GV3000E-AC089-AA-DBT-RFI is accelerating. This parameter is default set to 100% when GV3000E-AC089-AA-DBT-RFI is at V/Hz but this parameter has a parameter range of 50 to 110% V/Hz on GV3000E-AC089-AA-DBT-RFI.
What are the fatal fault codes on GV3000E-AC089-AA-DBT-RFI?
There are few fatal fault code errors on GV3000E-AC089-AA-DBT-RFI, but all fatal fault codes on GV3000E-AC089-AA-DBT-RFI will appear on GV3000E-AC089-AA-DBT-RFI beginning with the letter F followed by the fault code. The fatal fault codes on GV3000E-AC089-AA-DBT-RFI are: F3, F60, F61, and F62 or F26. These fault codes on GV3000E-AC089-AA-DBT-RFI are fault errors based on diagnostic error or failure with optionable parts on GV3000E-AC089-AA-DBT-RFI or with the encoder powering up on GV3000E-AC089-AA-DBT-RFI.
What are the two manuals for GV3000E-AC089-AA-DBT-RFI?
The manuals for GV3000E-AC089-AA-DBT-RFI are the software and hardware manuals for GV3000 NEMA style drives. Manuals D2-3359 and D2-3360 are both Reliance manuals that apply to GV3000E-AC089-AA-DBT-RFI and both manuals help with GV3000E-AC089-AA-DBT-RFI in different ways but provide some of the same general information on GV3000E-AC089-AA-DBT-RFI. We're happy to send you the manuals for GV3000E-AC089-AA-DBT-RFI if needed.

Reviews For GV3000E-AC089-AA-DBT-RFI

Internal Review
(5.0)

The GV3000E-AC089-AA-DBT-RFI module is an excellent purchase because while it can operate on selectable regulation modes, it uniquely possesses a relatively high input KVA and input amperage, at 81.0 KVA and 102 A respectively. This drive is also an excellent purchase due to its NEMA rating, which is NEMA 1, which helps the user easily access the RS-232 communication ports within the drive without having to remove the GV3000E-AC089-AA-DBT-RFI drive's cover; known to be a rather laborious process. - AX Control Lead Technician

Repair Services For GV3000E-AC089-AA-DBT-RFI

Type Lead Time Price Action
Repair Service 1-2 weeks $1220

Our highly skilled technicians can repair your GV3000E-AC089-AA-DBT-RFI. All of our repairs come with a 3 Year AX Control Warranty. Please contact us for additional information about our repair process. To receive the repair pricing and lead time listed above please process your repair order via our website. The following repair options may be available upon request:
