GV3000E-AC030-AA-DBU

    Varying star amount pictures Varying star amount pictures Varying star amount pictures Varying star amount pictures Varying star amount pictures
  • 5.00 (3)
  • Click a star to rate this product
    Varying star amount pictures Varying star amount pictures Varying star amount pictures Varying star amount pictures Varying star amount pictures
  • 5.00 (3)
  • Click a star to rate this product

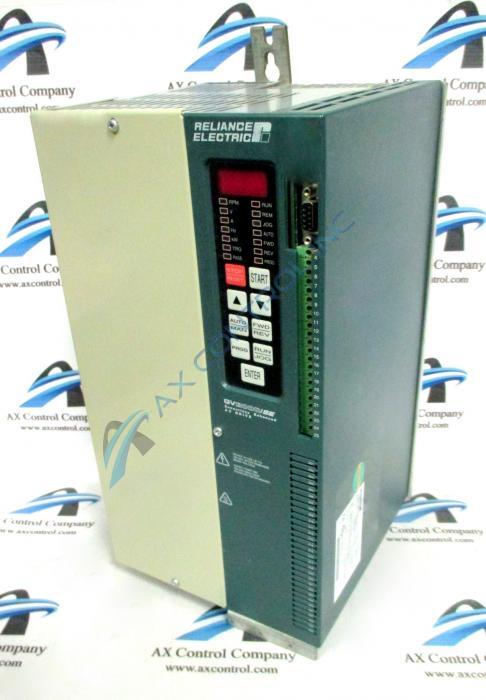

Reliance Electric GV3000 Bookshelf Drive GV3000E-AC030-AA-DBU has an operating current of 30.0 A when the drive is in V/Hz mode, which is the most common. The power loss watts at full load for this model is 470 A. The European stock number associated with the unit is 896.09.11.

AVAILABILITY:

CALL FOR AVAILABILITY

Sell Surplus: Have a GV3000E-AC030-AA-DBU to sell? Sell Now
Exchange Credit: Learn more about our exchange credit program
  • Part Number: GV3000E-AC030-AA-DBU
  • SKU: GV3000EAC030AADBURE
  • Manufacturer: Reliance Electric
  • Series: GV3000 Drives

GV3000E-AC030-AA-DBU Technical Specifications

Catalog Number GV3000E-AC030-AA-DBU
European Stock Number 896.09.11
US Model Number 300ER4060
Series GV3000
Manufacturer Reliance Electric
Instruction Manual D2-3426 & D2-3427
Enclosure IP20
Keypad/Display Built-In Keypad
Phase 3 Phase
Input Voltage 380-460 VAC
Hz 50/60Hz
Input KVA 30.2 KVA
Input Amps 38 A
Output Amps in V/Hz Mode at 8 kHz 16.5
Motor Power in Vector and V/Hz Mode 15 A (V/Hz) and 11 A (Vector)

About the GV3000E-AC030-AA-DBU

Produced by Reliance Electric as part of the GV3000 series, the GV3000E-AC030-AA-DBU model is one of the many bookshelf drives, although this bookshelf drive does not come with a built-in CE filter as the successor to the GV3000E-AC030-AA-DBU drive does

There are two part numbers cross-referenced in the GV3000-UM060K-EN-P GV3000/SE AC General Purpose and Vector Drive Instruction Manual; those two numbers are the European stock and US model numbers. The European stock number is 896.09.11, which denotes the size of the power module and what components come with the drive, which are DC-bus terminals and a braking transistor circuit for this model. The US model number is 300ER4060; this part number is most often used when referring to this model, as it is easier to read and understand what components and features make up the unit.

Five main components comprise the GV3000 drives, but it depends on the size and amperage that will generally differ on component location between the models. The keypad/display of the GV3000E-AC030-AA-DBU drive is on the front of the drive, with the fan remaining on the bottom of the unit. The main difference between this drive and the units with amperages less than 24.0 A is the output relay terminal strip is only on the inside of the drive compared to smaller ones, which have a terminal strip available on the outside of the model. The GV3000E-AC030-AA-DBU model is the last of the bookshelf drives with a power-printed circuit board.

Frequently Asked Questions about GV3000E-AC030-AA-DBU

Which parameter is the current limit parameter on GV3000E-AC030-AA-DBU?
Parameter P.005 is the current limit parameter on GV3000E-AC030-AA-DBU. This parameter on GV3000E-AC030-AA-DBU provides the means to limit motor stator current while running at constant speed or during acceleration. This parameter on GV3000E-AC030-AA-DBU has a range of 50 to 110% V/Hz. The default parameter setting for this parameter on GV3000E-AC030-AA-DBU is 100%.
What happens if multiple faults occur at the same time on GV3000E-AC030-AA-DBU?
It is common for multiple faults to occur at the same time on a reliance GV3000E-AC030-AA-DBU. If multiple faults occur on GV3000E-AC030-AA-DBU, the first fault detected on GV3000E-AC030-AA-DBU will flash on GV3000E-AC030-AA-DBU's keypad regardless of whether other faults occurred after it. GV3000E-AC030-AA-DBU cannot display multiple faults at one time.
What are the manuals for GV3000E-AC030-AA-DBU?
There are two important manuals for GV3000E-AC030-AA-DBU. Manual D2-3426 is the software manual for GV3000E-AC030-AA-DBU and Manual D2-3427 is the hardware manual for GV3000E-AC030-AA-DBU. Both manuals will be found very helpful with a reliance GV3000E-AC030-AA-DBU and we can provide each manual to you.
How many input and output amps does GV3000E-AC030-AA-DBU have?
GV3000E-AC030-AA-DBU has 38 input amps and GV3000E-AC030-AA-DBU has 30 output amps when GV3000E-AC030-AA-DBU is at a 2 kHz carrier frequency at V/Hz regulation.

Reviews For GV3000E-AC030-AA-DBU

Internal Review
(4.0)

One of the reasons that this model is a lower desired model is that it does not have a built-in filter of any type. The successor to this model, which is the GV3000E-AC030-AA-DBU-RFI, comes with a radio frequency interference line filter making it more advanced than this model. - AX Control Tech

Repair Services For GV3000E-AC030-AA-DBU

Type Lead Time Price Action
Repair Service 1-2 weeks $1346

Our highly skilled technicians can repair your GV3000E-AC030-AA-DBU. All of our repairs come with a 3 Year AX Control Warranty. Please contact us for additional information about our repair process. To receive the repair pricing and lead time listed above please process your repair order via our website. The following repair options may be available upon request:

  • 48-72hr Rush Repair
  • Detailed Repair Reports
  • AX Control Certificate of Warranty
